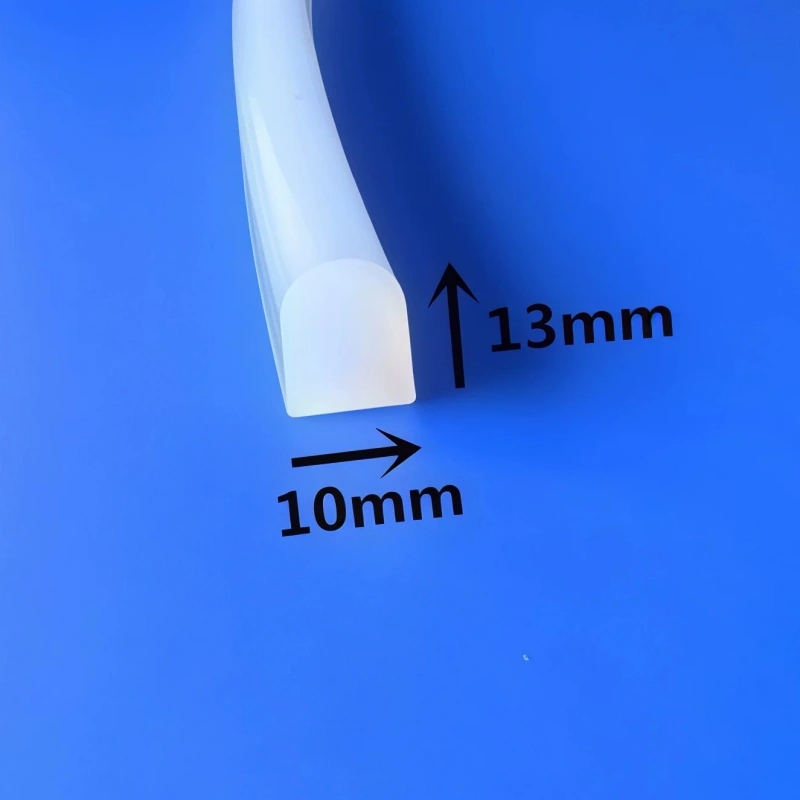

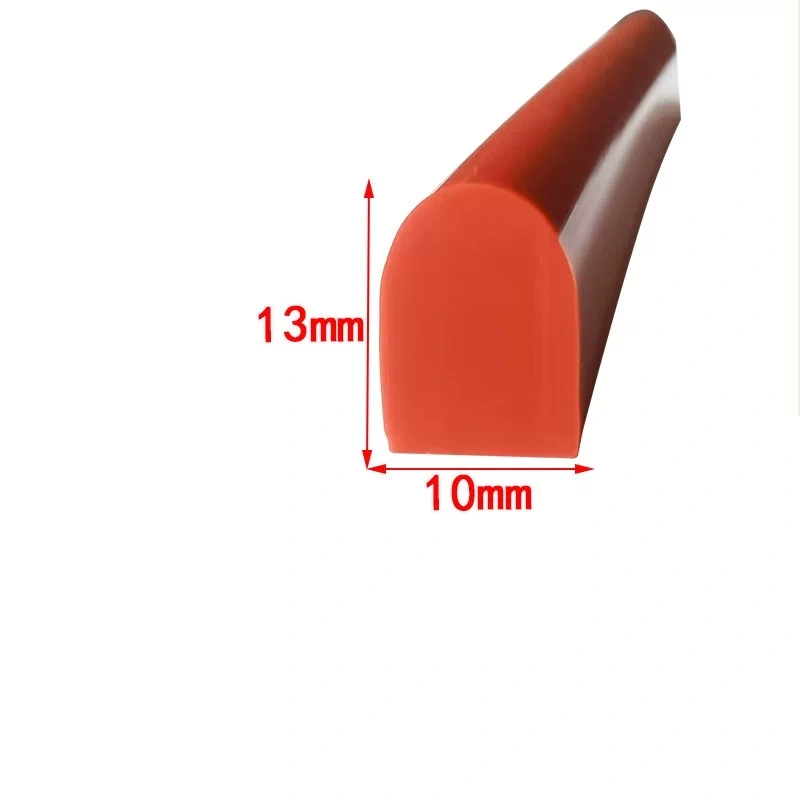

10 x 13 mm Solid Silicone D Shape Seal Strip

Product Overview

SealsHub supplies 10 x 13 mm solid silicone D shape seal strip designed for applications requiring increased profile height within a relatively narrow installation width. The taller D-shaped structure provides additional sealing travel and flexible contact while maintaining a compact mounting footprint.

Manufactured from solid silicone rubber, this profile offers excellent elasticity, heat resistance, weather resistance and long-term durability. It is suitable for equipment components, protective housings and custom sealing assemblies where a higher-profile silicone rubber seal is required in limited spaces.

Key Features

• Taller D-shaped profile provides increased compression allowance within a compact width
• Solid silicone rubber construction delivers reliable elasticity and long-term durability
• Rounded sealing surface supports flexible contact during compression
• Compact base design suits applications with restricted installation space
• Excellent resistance to heat, aging and environmental exposure
• Available for OEM projects requiring customized silicone rubber profiles

Specifications

Applications

Common applications include:

• Equipment covers and access panels requiring flexible sealing
• Electrical enclosures and protective housings
• Small machinery components and assemblies
• Glass, metal and plastic component sealing
• Compact sealing areas requiring additional profile height
• OEM silicone rubber sealing applications

Installation

The solid silicone D seal strip is supplied in continuous lengths and can be cut to the required size during installation. Depending on the application design, the profile can be fitted into grooves, bonded, or installed with customized adhesive backing. The installation surface should be clean and dry before assembly to ensure reliable sealing performance.

Custom Options

Custom colors, lengths and profiles available upon request.

SealsHub can supply customized solid silicone rubber profiles with different dimensions, hardness levels, surface finishes, adhesive backing options, piece lengths and packaging methods according to OEM and bulk purchasing requirements.

FAQ

Q: What is the difference between the 10 x 13 mm and 12 x 13 mm silicone D seal strips?

A: The 10 x 13 mm profile has a narrower width with increased height, making it suitable for applications requiring additional sealing travel in limited installation spaces. The 12 x 13 mm profile provides a more balanced cross section.

Q: What hardness is commonly used for solid silicone D seal strips?

A: Solid silicone rubber seal strips are commonly supplied in 60–75 Shore A, with customized hardness available for different sealing requirements.

Q: Can this silicone D seal strip be supplied with adhesive backing?

A: Yes. Standard supply is without adhesive backing. Custom adhesive backing can be added according to application requirements.

Q: Can SealsHub customize silicone D shape seal strips?

A: Yes. SealsHub can provide customized dimensions, colors, hardness levels and profile designs according to OEM requirements.

Q: How are silicone D shape seal strips supplied?

A: Silicone D shape seal strips are normally supplied in continuous lengths. For bulk orders, customized lengths, quantities and packaging methods can be arranged according to customer requirements.
