10 x 14 mm Pinchweld Edge Trim with Single Grip Tongue on Each Side

Product Overview

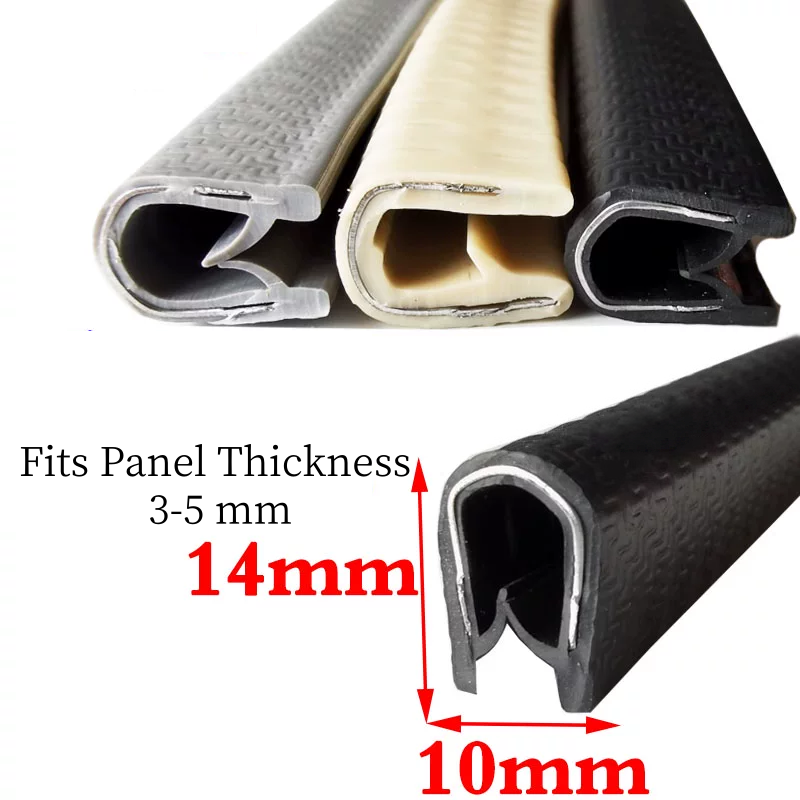

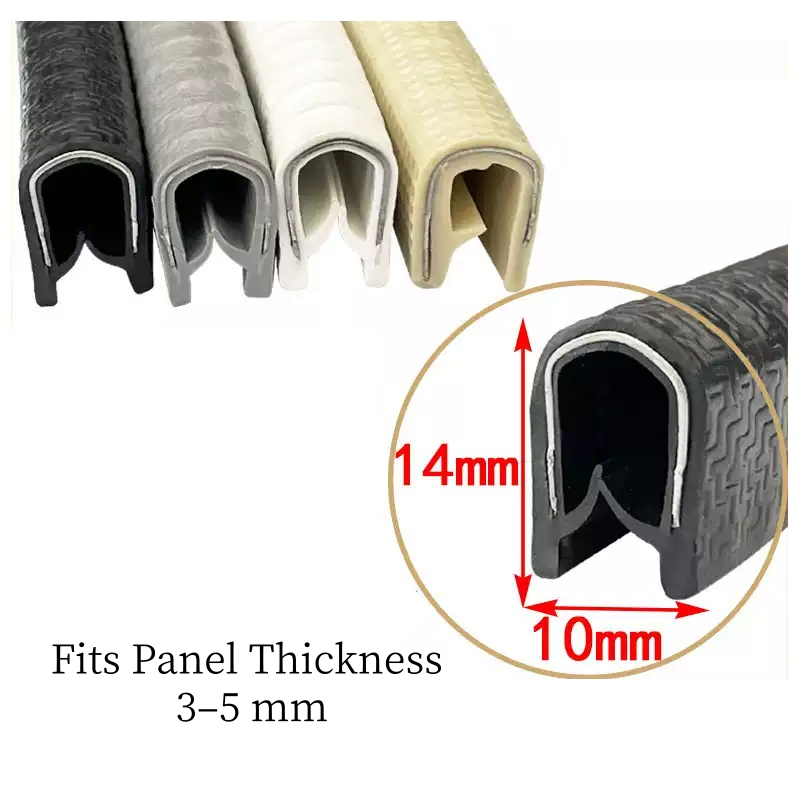

SealsHub supplies the 10 x 14 mm PVC Metal-Reinforced Pinchweld Edge Trim with Single Grip Tongue on Each Side, a U channel profile designed for protecting and finishing panel edges with a grip range of 3–5 mm.

The profile combines flexible PVC with internal metal reinforcement to provide stable edge coverage and a secure push-on fit for metal and plastic panels. With a 12 mm channel depth, it provides practical coverage for exposed panel edges while maintaining a clean finished profile.

A single grip tongue on each side provides additional contact with the panel edge to help maintain profile positioning after installation. The flexible PVC exterior helps protect exposed edges from abrasion, impact, and general wear while providing a finished appearance.

The push-on design allows quick installation directly onto the panel edge without adhesive or additional fixing hardware in most applications. The profile is supplied in coils or rolls for convenient continuous installation.

Key Features

• U channel profile for panel edge protection and finishing
• Single grip tongue on each side for improved profile retention
• Internal metal reinforcement for stable profile support
• Flexible PVC exterior for edge protection and a clean finish
• 12 mm channel depth for practical edge coverage
• Push-on installation without adhesive or additional fixing hardware
• Suitable for metal and plastic panel applications
• Supplied in coils / rolls for continuous installation
• Multiple standard colors available

Specifications

Profile Design

The 10 x 14 mm U channel profile is designed to cover and protect exposed panel edges while providing a secure push-on fit.

A single grip tongue is integrated on each side of the channel to provide additional contact with the panel edge and help maintain the trim position during use. The internal metal reinforcement supports the profile structure, while the flexible PVC exterior covers the exposed edge and provides a finished appearance.

Installation

The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.

• Clean the panel edge to remove dust, oil, and debris.
• Align the channel opening with the panel edge.
• Press the profile firmly onto the edge until fully seated.
• Check that the trim is evenly positioned along the required edge.

No adhesive or additional fixing hardware is normally required.

Applications

Common applications include:

• Sheet metal edges
• Electrical cabinets and control panels
• Equipment housings and enclosures
• Machinery covers and protective guards
• Metal and plastic panel edge finishing
• Instrument panels and access covers
• General industrial edge protection

Custom Options

SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.

Custom options include:

• Profile dimensions
• Panel grip ranges
• Internal grip structures
• PVC colors and finishes
• Metal carrier specifications
• Roll lengths
• Custom tooling and mold development

FAQ

How do I choose the correct Pinchweld Edge Trim size?

Select the profile according to the panel thickness and required edge coverage. The panel should fall within the specified grip range to achieve a suitable fit.

Does this Pinchweld Edge Trim require adhesive?

No. The push-on U channel design allows the trim to be installed directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Can this edge trim be used on metal and plastic panels?

Yes. The profile is suitable for various metal and plastic panel applications, including enclosures, covers, access panels, and fabricated components.

Are different colors available?

Yes. This profile is available in multiple standard colors, with custom colors available for OEM requirements.

Are samples available before bulk orders?

Yes. Samples can be provided to check profile fit, panel compatibility, and installation before bulk orders.
