23 x 30 mm Pinchweld Edge Trim with Dual Grip Teeth on Each Side
![]()
Product Overview
SealsHub supplies the 23 x 30 mm PVC Metal-Reinforced Pinchweld Edge Trim with Dual Grip Teeth on Each Side, a heavy-duty U channel profile designed for protecting and finishing thick panel edges with a grip range of 13–17 mm.
The profile combines a flexible PVC outer layer with an embedded metal carrier to provide reinforced edge retention while maintaining flexibility during installation. With a 27 mm channel height, it provides extended coverage for larger metal and plastic panel edges.
Dual grip teeth on each side create multiple contact points along the panel edge, helping improve profile holding strength and positioning stability after installation. The flexible PVC exterior helps protect exposed edges from abrasion, impact, and general wear while providing a clean finished appearance.
The push-on design allows installation directly onto panel edges without adhesive or additional fixing hardware in most applications. The reinforced structure makes this profile suitable for larger industrial components requiring reliable edge protection.
![]()
Key Features
- Heavy-duty U channel profile for thick panel edge protection
- Dual grip teeth on each side for secure edge retention

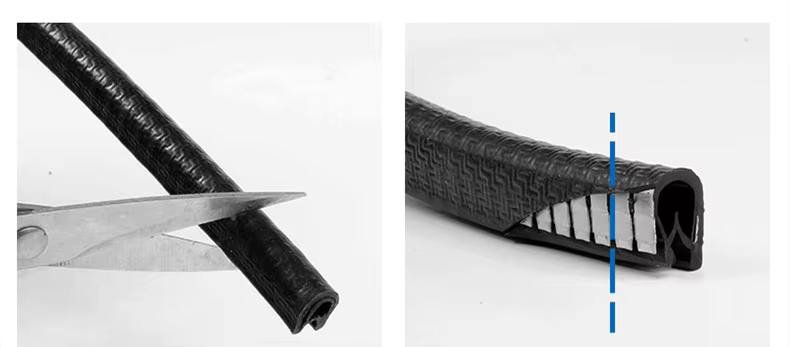

- Embedded metal carrier for reinforced profile stability
- Flexible PVC outer layer for edge protection and finishing
- 27 mm channel height for extended edge coverage
- Suitable for 13–17 mm panel edges
- Push-on installation for convenient assembly
- Suitable for metal and plastic panel applications

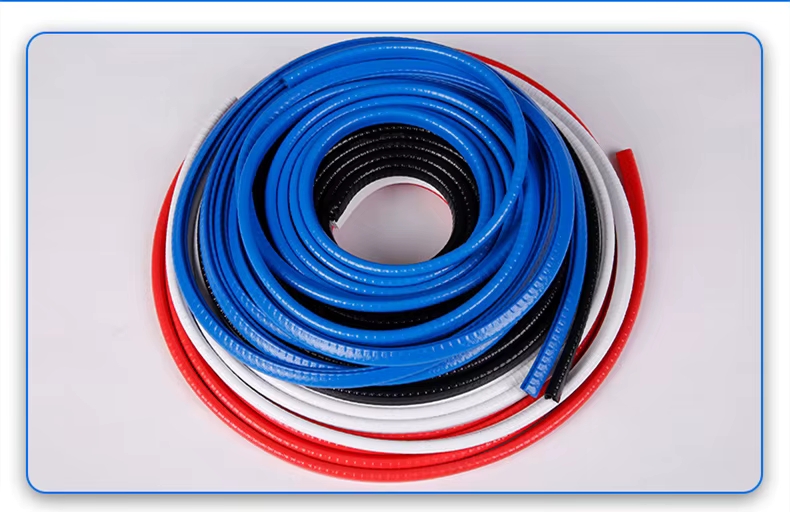

- Supplied in coil / roll form
![]()
![]()
Specifications
| Item | Details |
|---|
| Product Type | Metal-Reinforced Pinchweld Edge Trim |
| Profile Shape | U Channel |
| Profile Size (W x H) | 23 x 30 mm |
| Grip Range | 13–17 mm |
| Channel Height | 27 mm |
| Internal Grip Structure | Dual Grip Teeth on Each Side |
| Metal Carrier | Embedded Metal Carrier |
| Material | PVC + Metal Carrier |
| Structure | Flexible PVC Outer Layer with Embedded Metal Carrier |
| Installation | Push-On Installation |
| Supply Form | Coil / Roll |
| Colors | Black, Gray |
Profile Design
Designed for larger panel applications, this U channel profile provides extended edge coverage and reinforced holding performance for thick metal and plastic panels.
Dual grip teeth on each side create multiple contact points with the panel edge to improve profile stability after installation. The 27 mm channel height allows deeper edge coverage while the flexible structure helps the trim conform to different panel shapes.

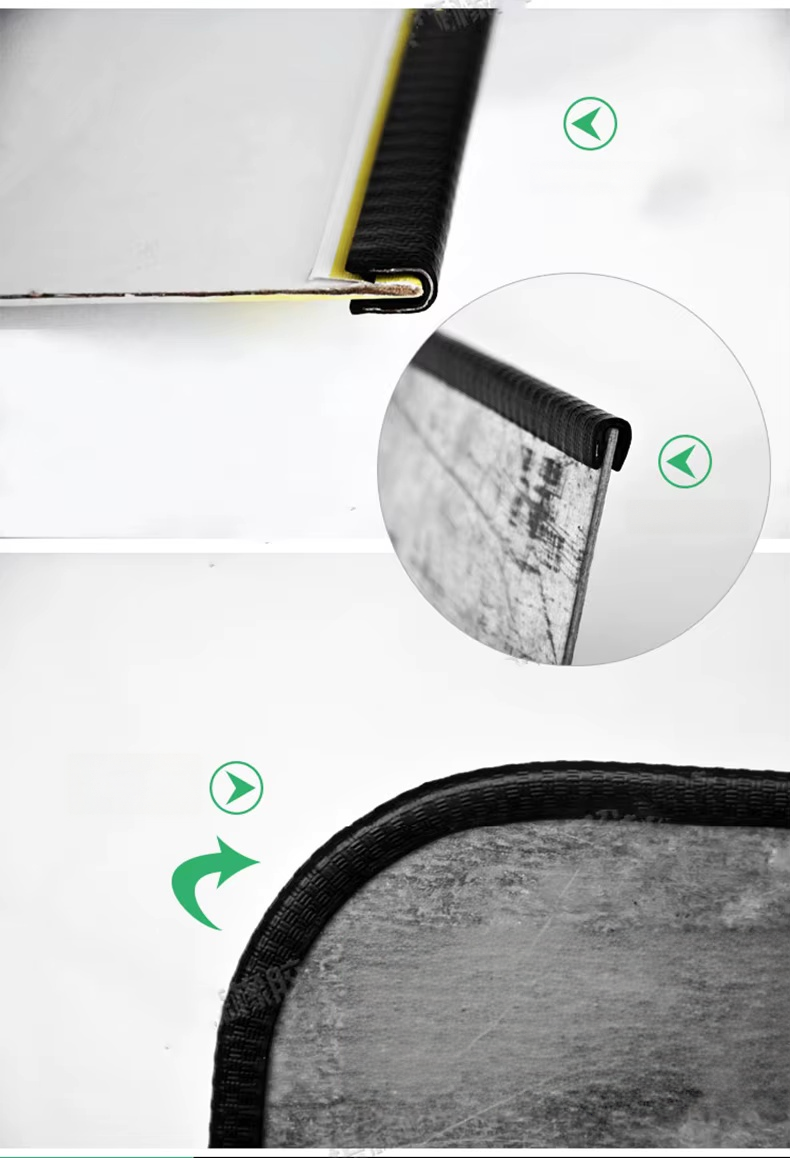

Installation
The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.
- Clean the panel edge to remove dust, oil, and debris.
- Align the channel opening with the panel edge.
- Press the profile firmly onto the edge until fully seated.
- Check that the trim is evenly positioned along the required edge.
The internal grip teeth and metal carrier help maintain the profile position after installation.
![]()
![]()
Applications
Common applications include:
- Thick sheet metal edges
- Electrical cabinets and control panels
- Equipment housings and enclosures
- Machinery covers and protective guards
- Large fabricated panels
- Metal and plastic panel finishing
- Industrial equipment protection
- Heavy-duty edge protection applications

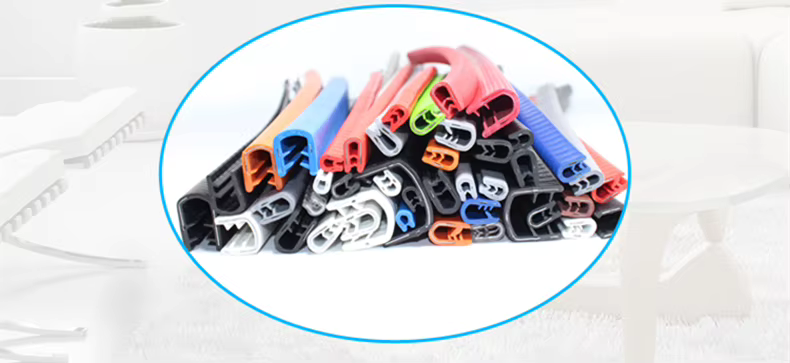

Custom Options
SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.
- Profile dimensions
- Grip structures
- PVC colors and finishes
- Metal carrier specifications
- Roll lengths
- Custom tooling and mold development
FAQ
What is Pinchweld Edge Trim used for?
Pinchweld Edge Trim is used to cover, protect, and finish exposed edges of metal and plastic panels. The U channel design provides a push-on edge covering for industrial and fabricated components.
How does the Pinchweld Edge Trim stay in place?
The internal grip structure provides friction against the panel edge, while the embedded metal carrier reinforces the profile and helps maintain its fit during use.

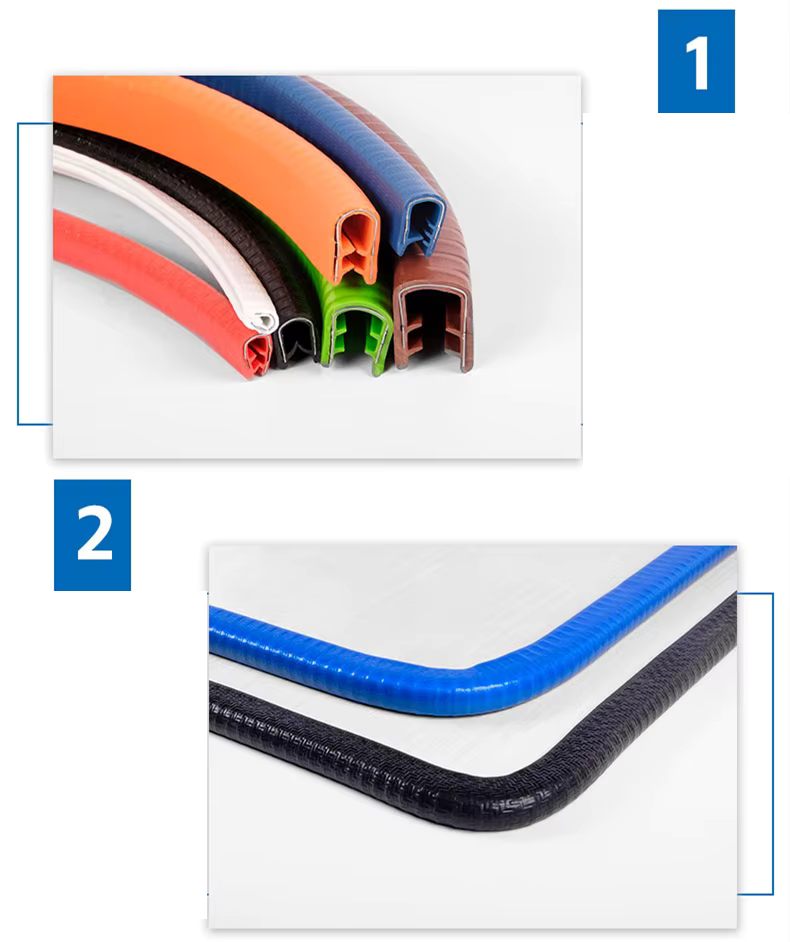

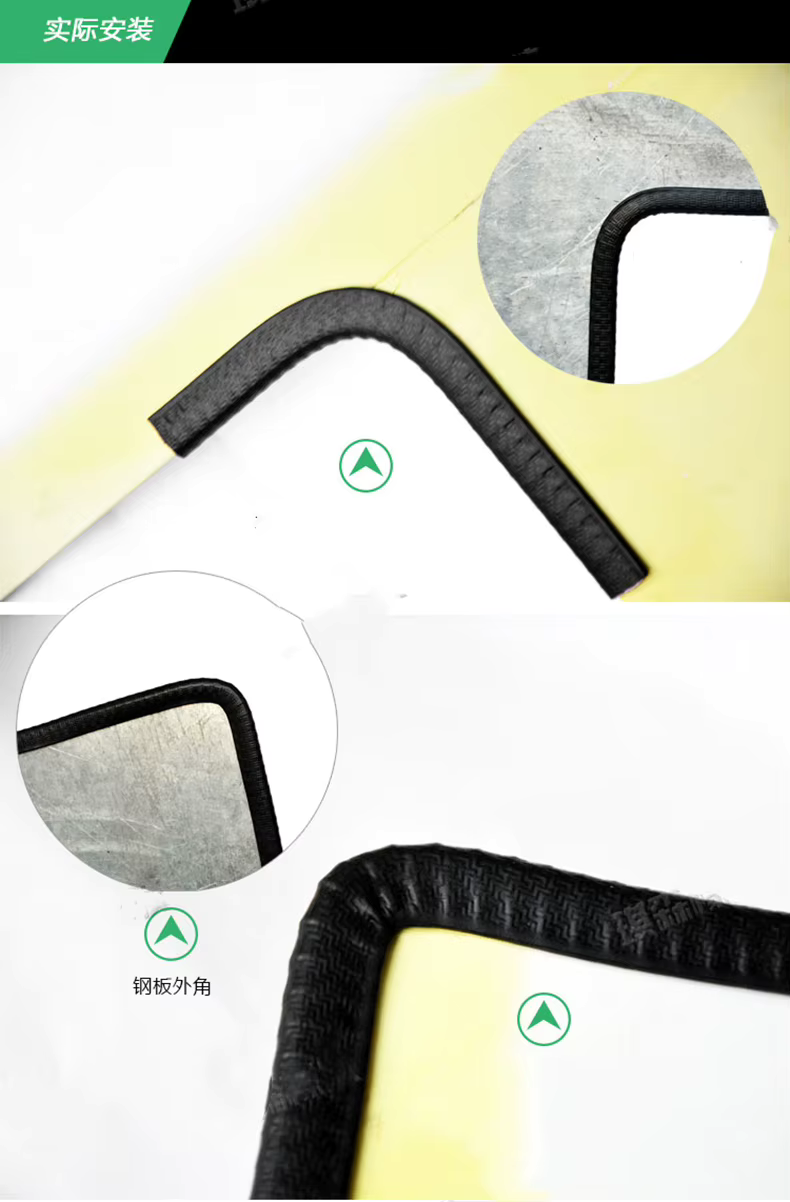

Can the trim follow curved or irregular panel edges?
Yes. The flexible PVC construction allows the profile to conform to straight, curved, and shaped panel edges, depending on the bend radius and application.
Can the profile be cut to required lengths?
Yes. The coil / roll supply form allows the profile to be cut to the required installation length during assembly.
Is custom Pinchweld Edge Trim available?
Yes. SealsHub supplies custom profiles with options for dimensions, grip configurations, PVC colors and finishes, metal carrier specifications, roll lengths, and tooling.
Are samples available before bulk orders?
Yes. Samples can be provided for checking profile fit, panel compatibility, and installation before bulk orders.
