8 x 15 mm PVC Metal-Reinforced Pinchweld Edge Trim

Product Overview

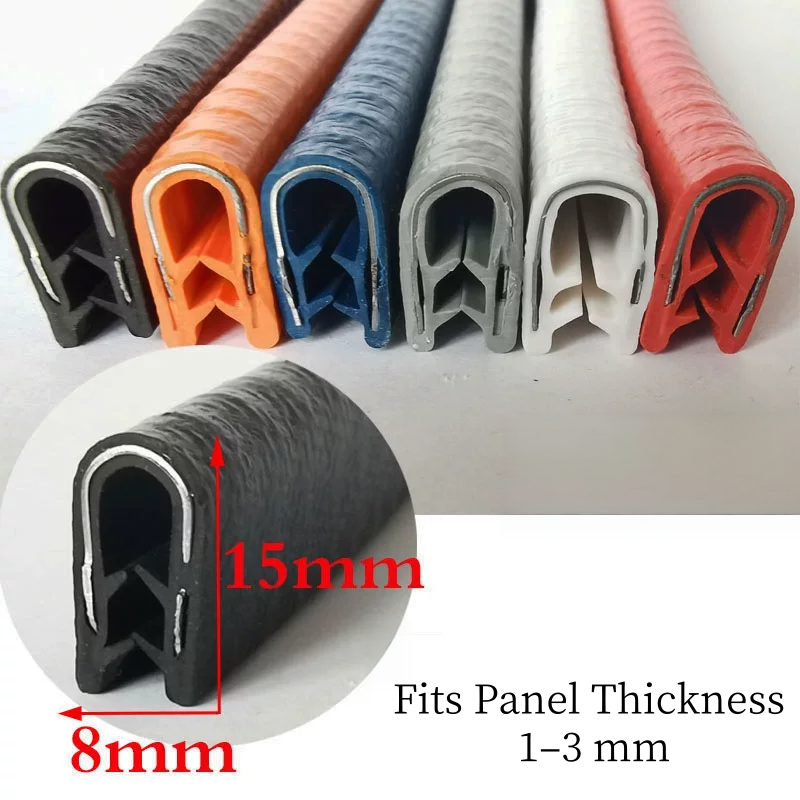

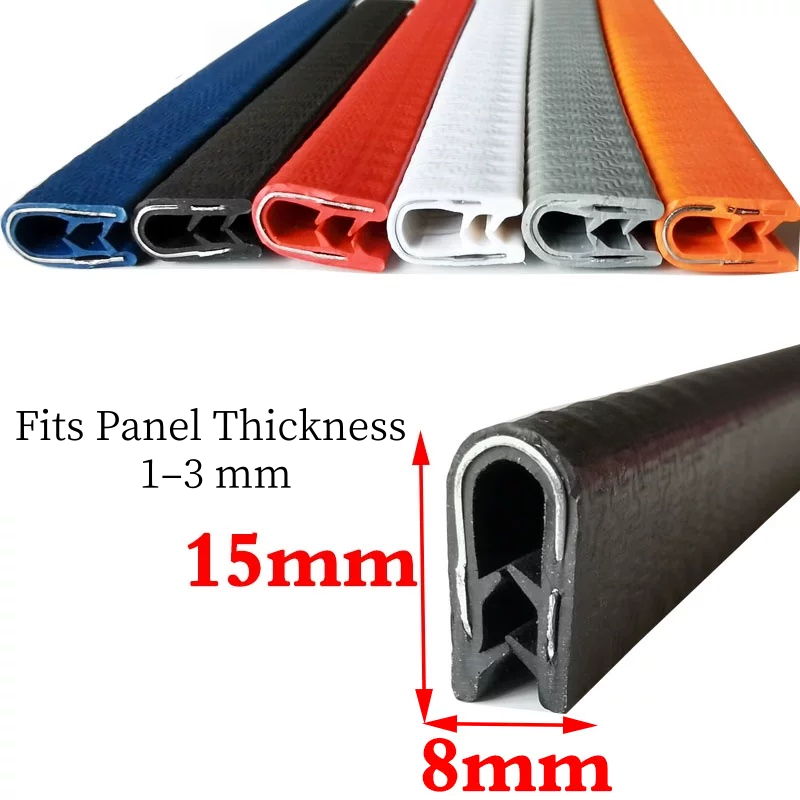

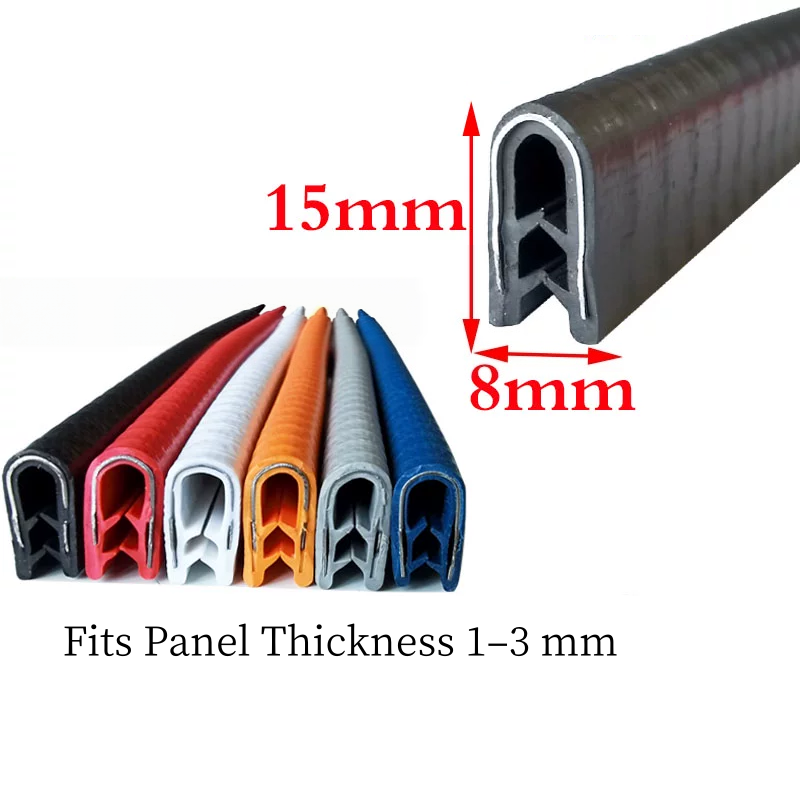

SealsHub supplies the 8 x 15 mm PVC Metal-Reinforced Pinchweld Edge Trim with Dual Grip Teeth on Each Side, a flexible U channel profile designed to protect and finish exposed panel edges with a grip range of 1–3 mm.

The profile combines flexible PVC with internal metal reinforcement to provide stable edge coverage and a secure push-on fit for metal and plastic panels. With a 13 mm channel depth, it provides extended coverage of exposed panel edges while maintaining a flexible profile structure.

Dual grip teeth on each side create multiple contact points with the panel edge to help hold the profile securely in position after installation. The flexible PVC exterior helps protect exposed edges from abrasion, impact, and general wear while providing a clean finished appearance.

The push-on design allows quick installation directly onto the panel edge without adhesive or additional fixing hardware in most applications. The profile is supplied in coils or rolls for convenient continuous installation.

Key Features

• Flexible U channel profile for panel edge protection and finishing
• Dual grip teeth on each side for secure profile retention
• Internal metal reinforcement for stable profile support
• Flexible PVC exterior for edge protection and a clean finish
• 13 mm channel depth for extended edge coverage
• Push-on installation without adhesive or additional fixing hardware
• Suitable for metal and plastic panel applications
• Supplied in coils / rolls for continuous installation

Specifications

Profile Design

The 8 x 15 mm U channel profile is designed to cover and protect exposed panel edges while providing a secure push-on fit.

Dual grip teeth are integrated on each side of the channel to create multiple contact points with the panel edge and help maintain the trim position during use. The internal metal reinforcement supports the profile structure, while the flexible PVC exterior covers the exposed edge and provides a finished appearance.

Installation

1. Clean the panel edge to remove dust, oil, or debris.
2. Align the U channel opening with the panel edge.
3. Press the profile firmly into place until fully seated.

No adhesive or additional fixing hardware is normally required.

Applications

Common applications include:

• Sheet metal edges
• Electrical cabinets and control panels
• Equipment housings and enclosures
• Machinery covers and protective guards
• Metal and plastic panel edge finishing
• Instrument panels and access covers
• General industrial edge protection

Custom Options

SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.

Custom options include:

• Profile dimensions
• Panel grip ranges
• Internal grip structures
• PVC colors and finishes
• Metal carrier specifications
• Roll lengths
• Custom tooling and mold development

FAQ

How do I choose the correct Pinchweld Edge Trim size?

Select the profile according to the panel thickness and required edge coverage. The panel should fall within the specified grip range to achieve a suitable fit.

Does this Pinchweld Edge Trim require adhesive?

No. The push-on U channel design allows the trim to be installed directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Can this edge trim be used on metal and plastic panels?

Yes. The profile is suitable for various metal and plastic panel applications, including enclosures, covers, access panels, and fabricated components.

Are different colors available?

Yes. This profile is available in multiple standard colors, with custom colors available for OEM requirements.

Are samples available before bulk orders?

Yes. Samples can be provided to check profile fit, panel compatibility, and installation before bulk orders.
