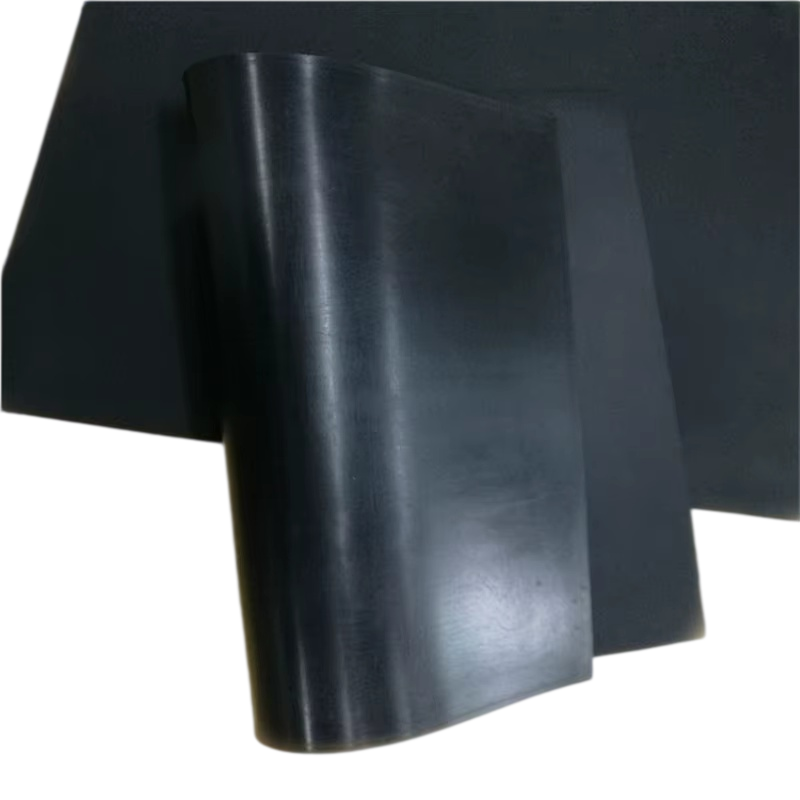

Conductive Silicone Rubber Sheet

Product Overview

SealsHub supplies conductive silicone rubber sheets with a surface resistance of 80–150 Ω, designed for electrical contact, conductive sealing, grounding, and EMI shielding applications. The material combines electrical conductivity with the flexibility, compressibility, and durability of silicone rubber.

The thin sheet format is suitable for applications requiring a flexible conductive layer or contact interface. Sheets can also be converted into custom gaskets, pads, strips, and die-cut shapes according to application requirements.

Key Features

• Conductive silicone rubber with 80–150 Ω surface resistance
• Flexible and compressible for conductive contact and sealing
• Suitable for electrical contact and grounding applications
• Suitable for EMI shielding and conductive sealing assemblies
• Thin sheet construction with thicknesses from 0.3 to 3 mm
• Available in several standard sheet sizes
• Suitable for custom die-cut gaskets, pads, strips, and shapes
• Suitable for electrical, electronic, and industrial equipment

Specifications

Available Sizes

Standard sheet sizes include:

• 200 x 250 mm
• 310 x 500 mm
• 350 x 500 mm
• 500 x 500 mm

Available Thicknesses: 0.3 / 0.5 / 1 / 1.5 / 2 / 3 mm

Other dimensions and thicknesses may be available upon request. Sheets can also be supplied as custom-cut gaskets, pads, strips, and other shapes.

Applications

Conductive silicone rubber sheets are commonly used for:

• Electrical contact and conductive connections
• Conductive sealing
• EMI shielding components
• Grounding and electrical connections
• Electrical cabinets and control panels
• Electronic equipment enclosures
• Communication equipment
• Industrial electrical and electronic assemblies

Custom Options

SealsHub supplies custom conductive silicone rubber components according to application requirements.

Custom options include:

• Sheet dimensions
• Thickness
• Die-cut gasket and pad shapes
• Strips and custom configurations
• Custom profiles and sizes

Shipping & Freight

Due to standard shipping weight limitations, additional freight charges may apply to orders exceeding 2 kg. Final shipping costs depend on order weight, dimensions, destination, and shipping method.

For custom sizes, shapes, larger quantities, or specific shipping requirements, please contact SealsHub for a quotation.

FAQ

What is the surface resistance of this conductive silicone rubber?

The surface resistance is 80–150 Ω. This specification provides a reference for the material's conductive and electrical contact properties.

What applications is this conductive silicone sheet suitable for?

It is suitable for electrical contact, conductive sealing, grounding, and EMI shielding applications in electrical, electronic, communication, and industrial equipment.

Can the sheet be used to make custom gaskets?

Yes. SealsHub can supply the material as custom-cut gaskets, pads, strips, and other shapes according to required dimensions or drawings.

Are custom sheet sizes and thicknesses available?

Yes. Custom dimensions and thicknesses may be available for specific applications. Please contact SealsHub with your required size, thickness, quantity, or drawing for a quotation.
