Large Profile H-Type Silicone Rubber Seal Strip for Glass & Panel Joints
Product Overview
SealsHub supplies a heavy-duty H-type silicone rubber seal strip designed for joining and retaining compatible glass panels, sheets, and panel components.

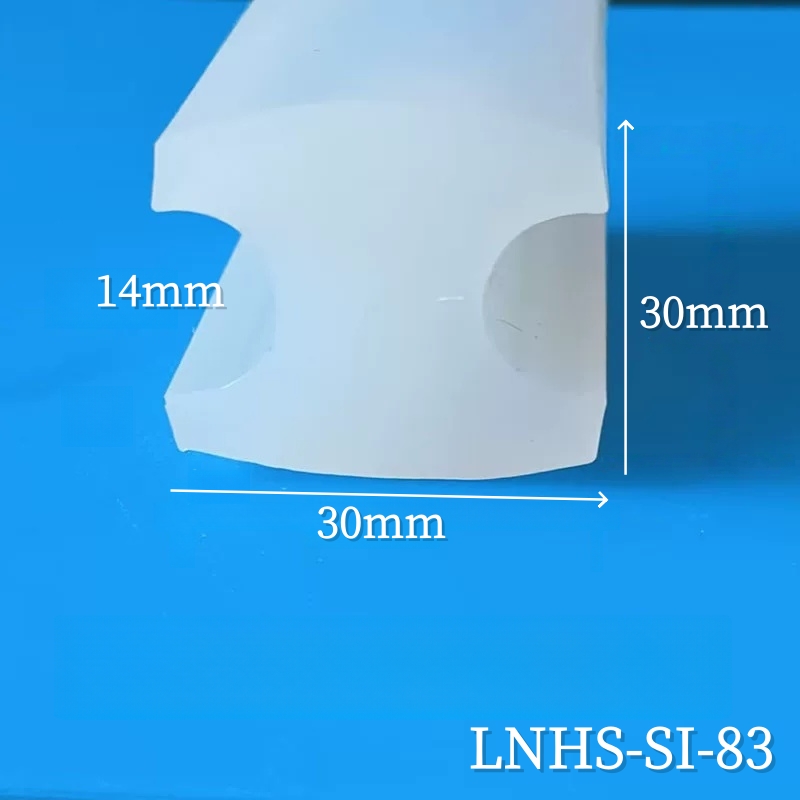

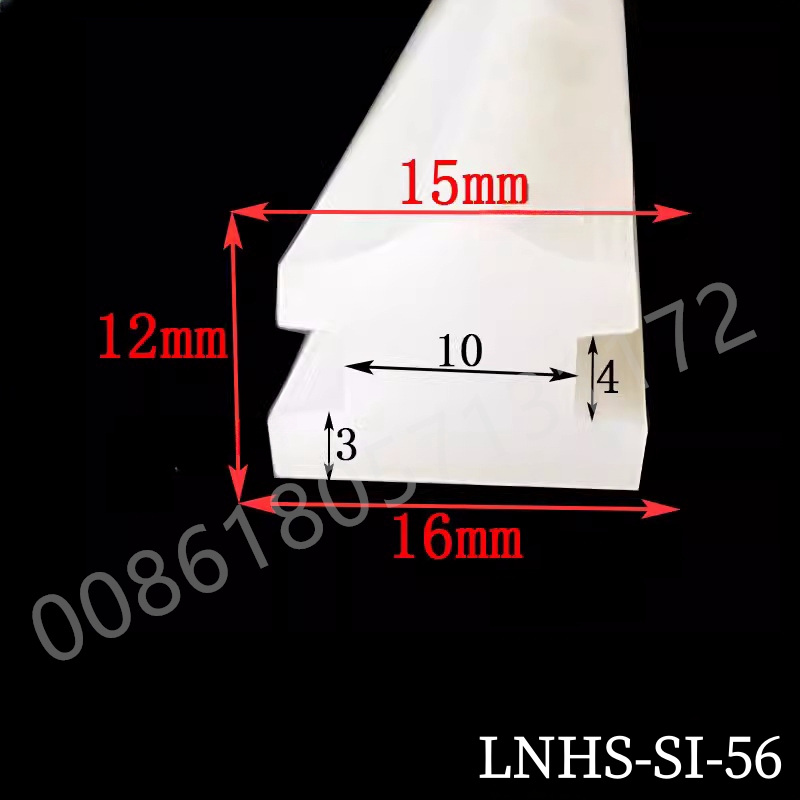

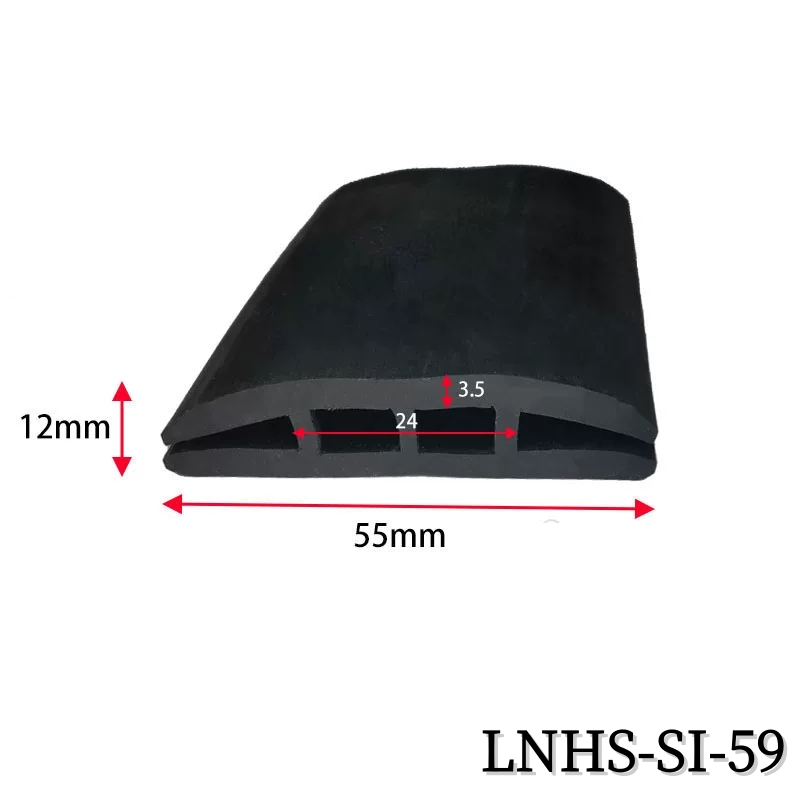

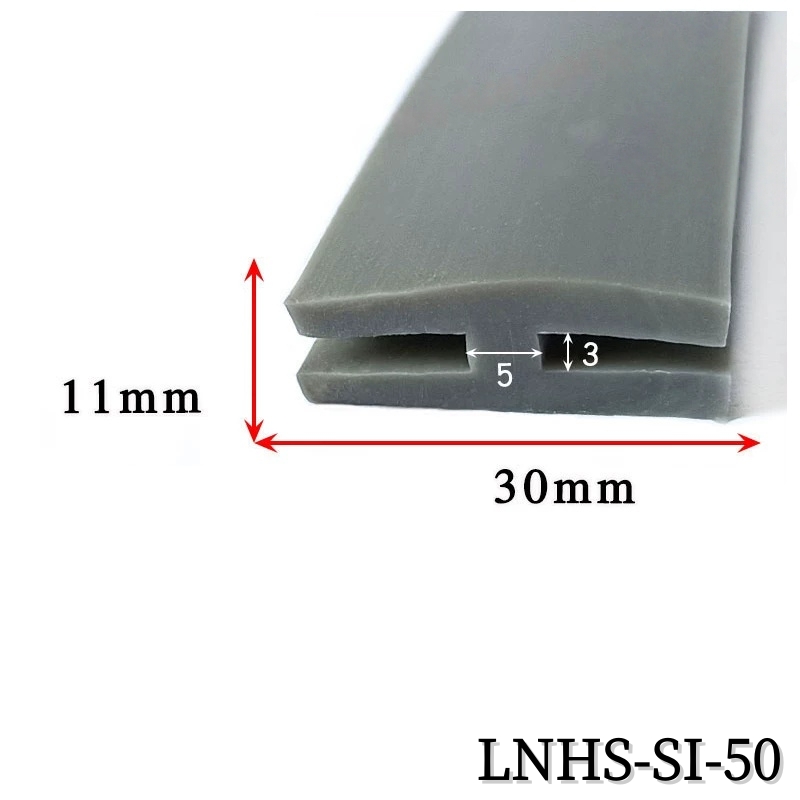

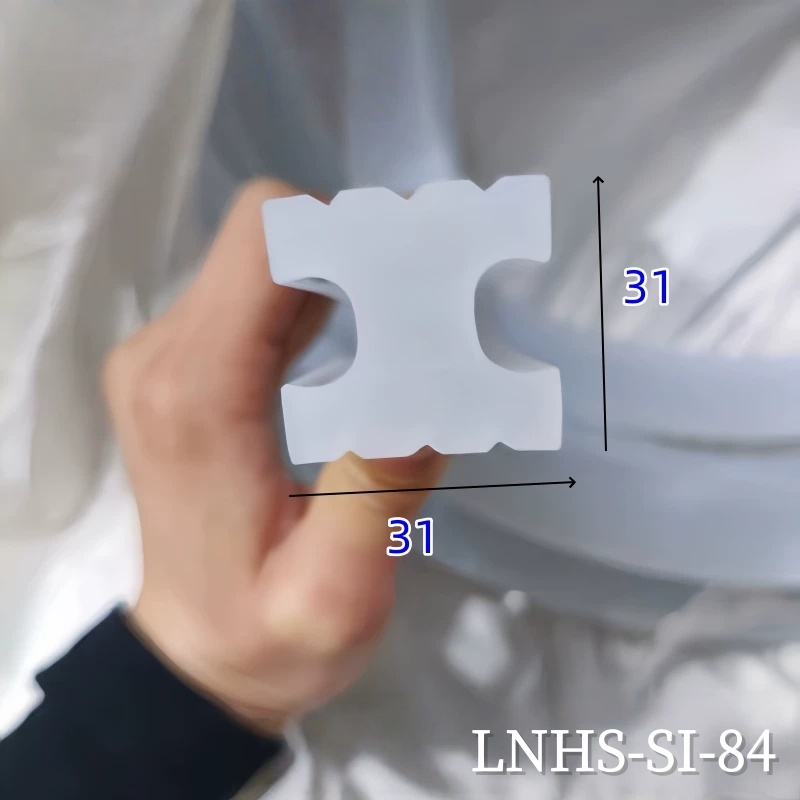

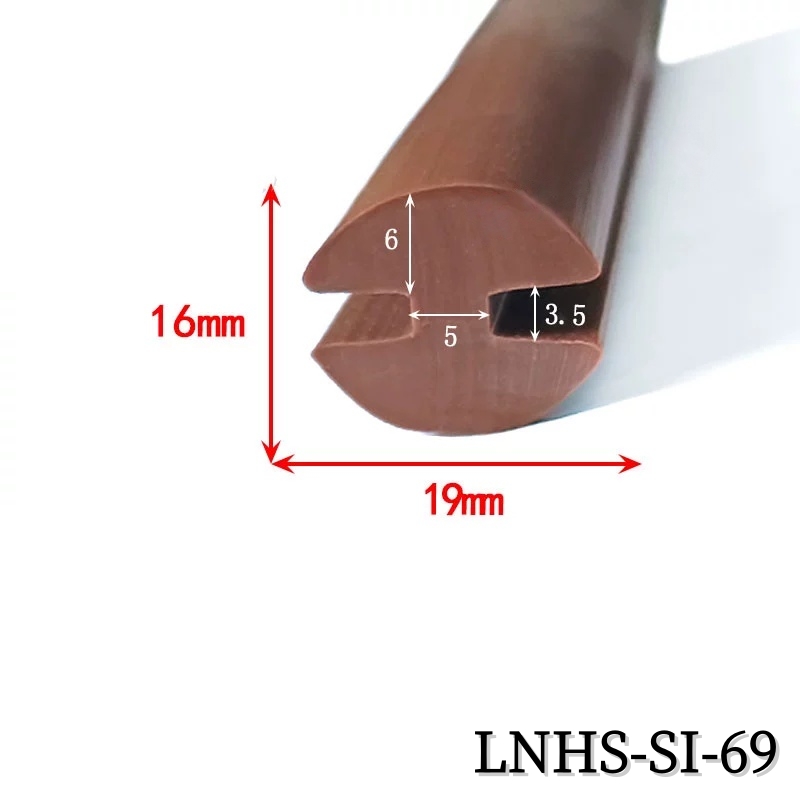

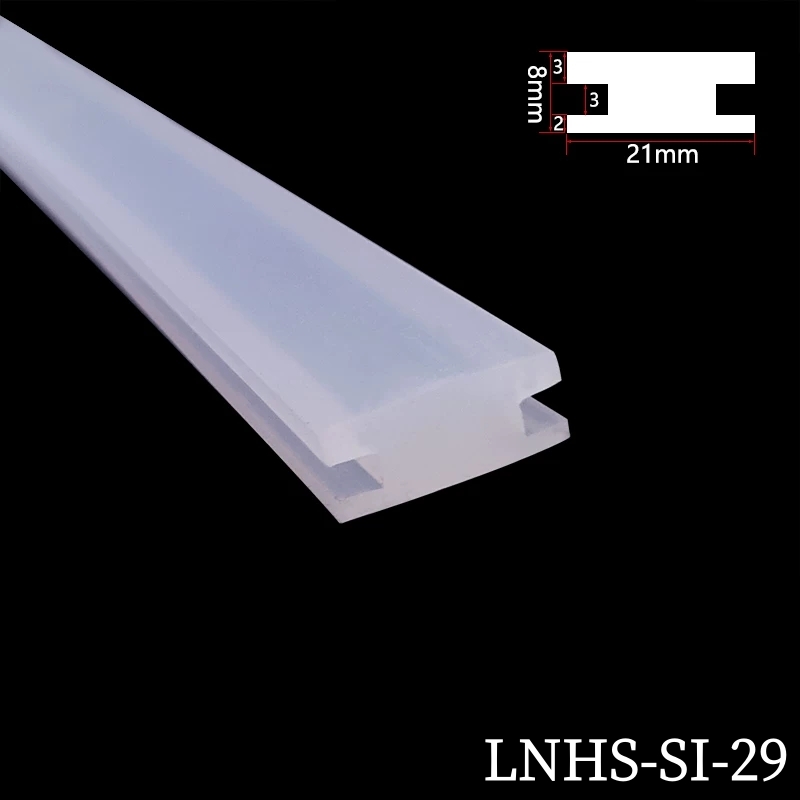

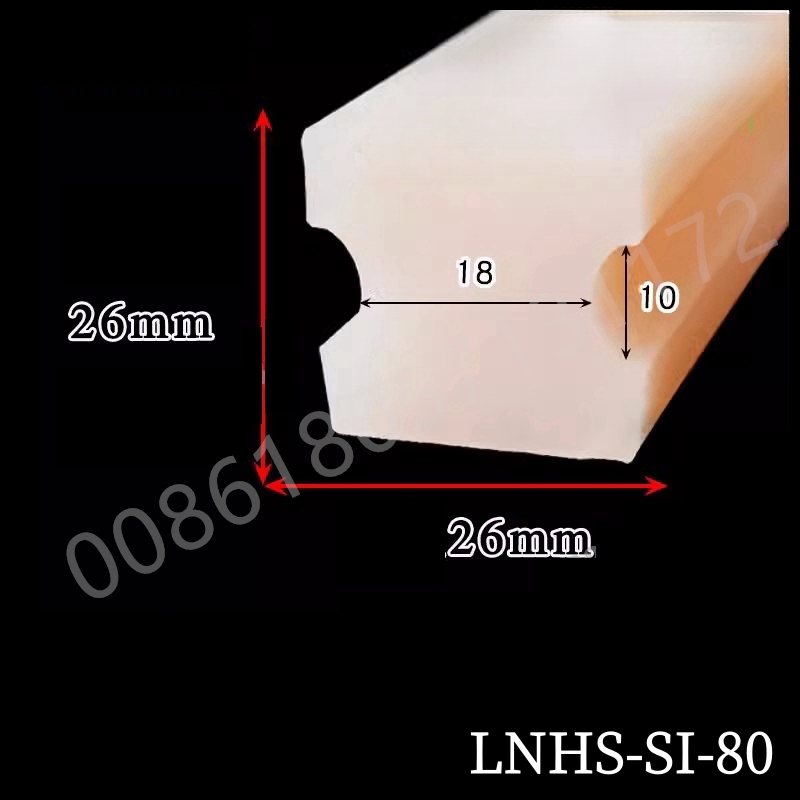

Its large-profile H-shaped cross-section features opposing insertion channels connected by a central section, allowing panels to be inserted from both sides. This configuration supports panel alignment, retention, and sealing in compatible assemblies.
Made from silicone rubber, the profile offers good water resistance, flexibility, and resistance to UV exposure and weathering. Silicone rubber also maintains its flexibility across a relatively wide temperature range compared with many conventional elastomers. Actual performance depends on the silicone formulation, profile dimensions, and operating conditions.
Suitable for selected architectural, industrial, and equipment applications, this H-type profile is available for sample evaluation and bulk orders. Custom profile dimensions, colors, hardness (Shore A), and lengths can be discussed according to project requirements.
Key Features
- Large-profile H-type design for joining and retaining compatible glass and panel components.
- Dual-channel structure with opposing insertion grooves for panel engagement from both sides.
- Water-resistant silicone rubber suitable for compatible sealing applications.
- UV and weathering resistance for applications exposed to sunlight and outdoor conditions.
- Flexible and resilient material to accommodate suitable panel assemblies.
- Resistance to high and low temperatures, with the applicable temperature range dependent on the silicone compound.
- Custom specifications and bulk supply for industrial, architectural, and equipment projects.
Specifications
| Item | Details |
|---|
| Product Type | Connector Gasket |
| Profile Shape | H Type |
| Profile Structure | Opposing Panel Insertion Channels with a Central Connecting Section |
| Profile Size Range | Heavy-Duty |
| Material | Solid Silicone Rubber |
| Temperature Range | -40°C to +200°C, subject to compound confirmation |
| Hardness | 50–75 Shore A, customizable where available |
| Color Options | Translucent / Transparent / Black / Custom, subject to availability |
| Installation | Push-Fit Panel Insertion |
| Supply Form | Roll / Coil |
Application
- Glass panel joining and connection
- Glass partitions and compatible framed panel assemblies
- Glass cabinet doors and display cabinets
- Equipment cabinets and industrial enclosures
- Machinery covers and industrial panel assemblies
- Architectural and equipment applications requiring H-type panel connection and sealing
Length Selection Guide
Available lengths depend on profile dimensions, order quantity, packaging requirements, and shipping method.
- Sample lengths: 1 m and 3 m options may be available for fit checks, material evaluation, and small trial orders.
- Bulk rolls: 50–100 m supply options may be available for applicable specifications, subject to profile size, production capability, and packaging requirements.
- Large profiles: Practical roll lengths and shipping arrangements depend on the dimensions and shipment size. Commercial express, air freight, or sea freight can be considered according to order requirements.
- Custom lengths: Alternative cutting lengths and production quantities can be discussed for project orders.
- Existing extrusion molds: Some non-standard specifications may be produced using existing molds. Mold compatibility, minimum order quantities, and any tooling costs must be confirmed before ordering.
Please confirm the required profile specification and available length before placing an order. For bulk quantities, custom lengths, or special shipping arrangements, contact SealsHub for confirmation.
Installation
- Check the profile dimensions and panel thickness compatibility before installation.
- Align the H-type seal strip with the edges of the panels to be joined.
- Insert each panel into its corresponding channel, ensuring an even and secure fit.
- Inspect the joint for alignment, retention, and continuous contact along the sealing area.
- For water-resistant sealing applications, verify the assembled joint under the intended installation and service conditions.
Custom Options
Custom colors, lengths and profiles available upon request.

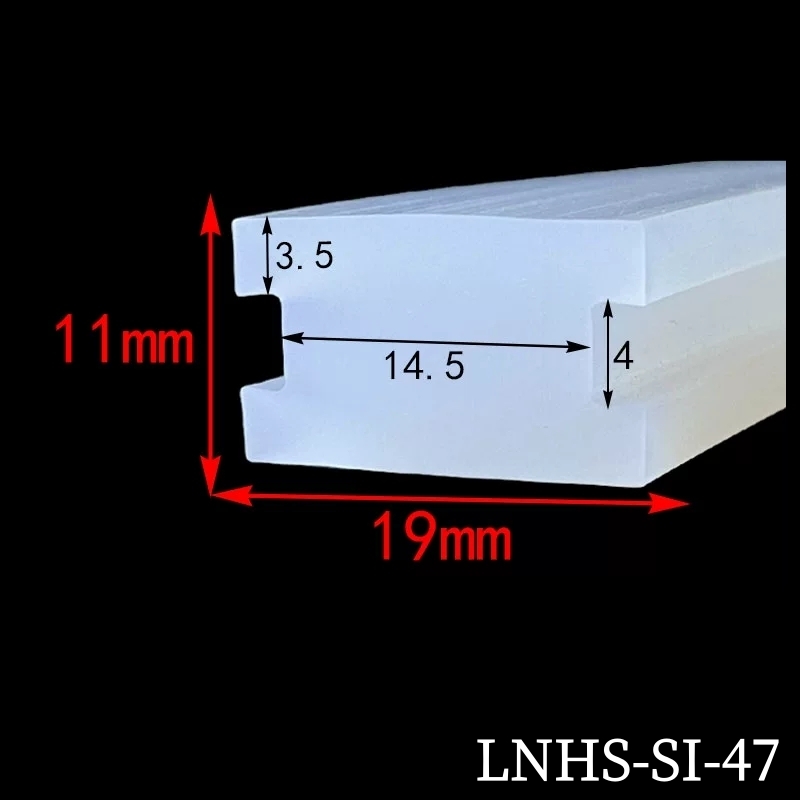

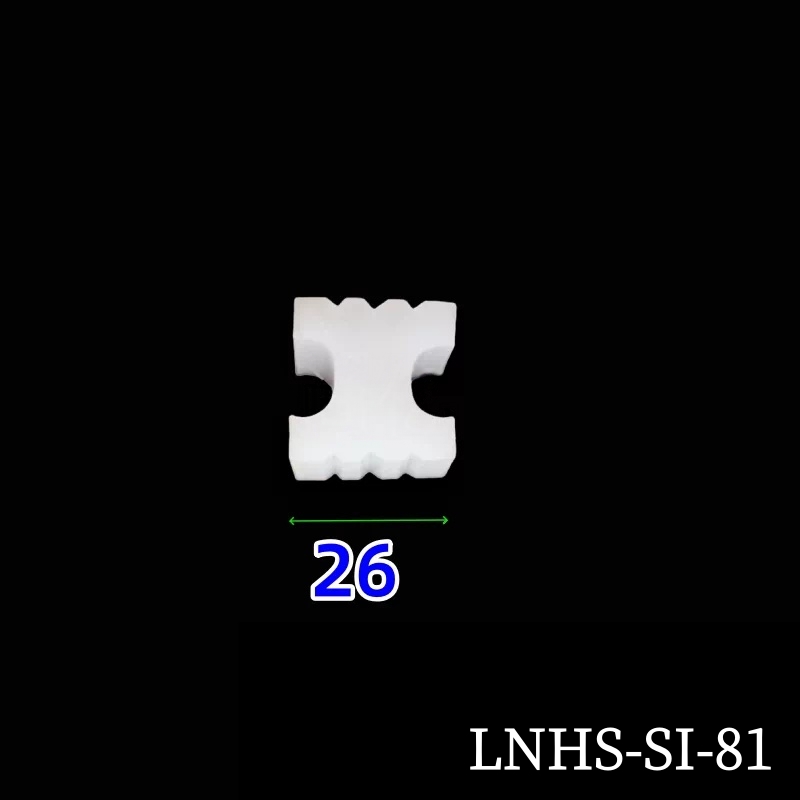

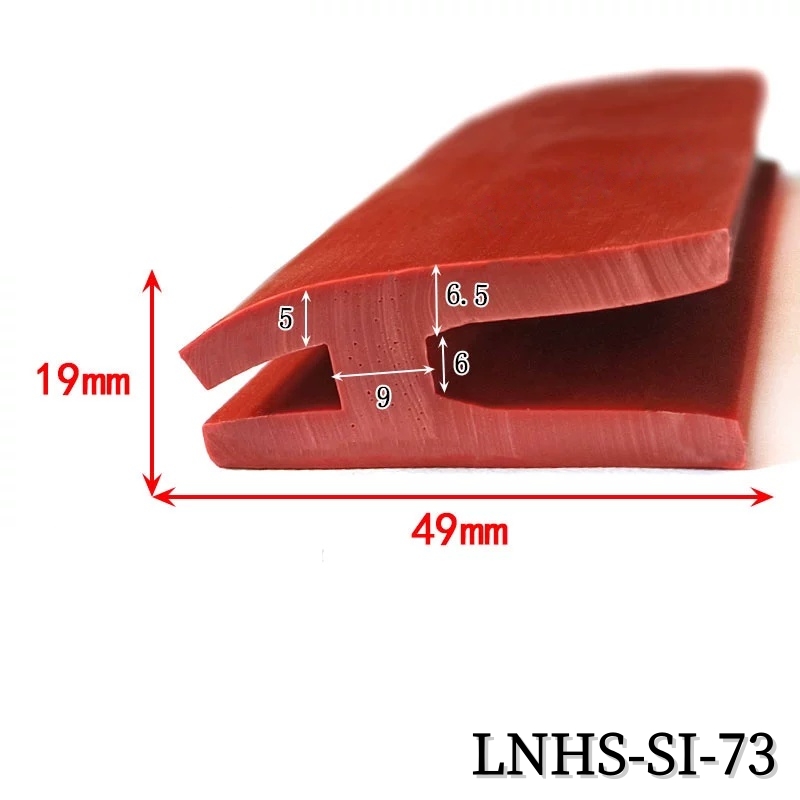

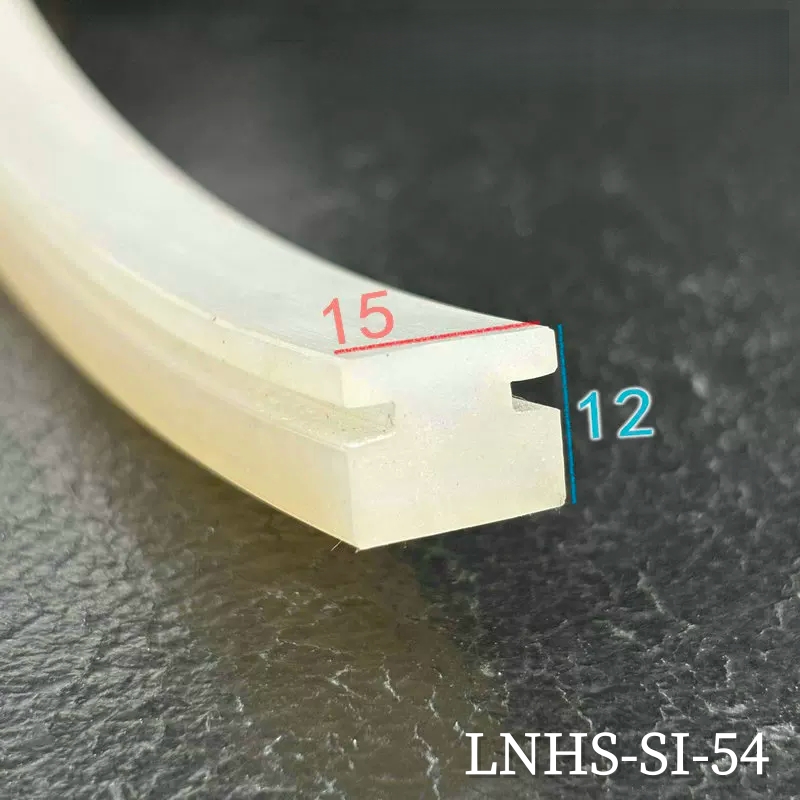

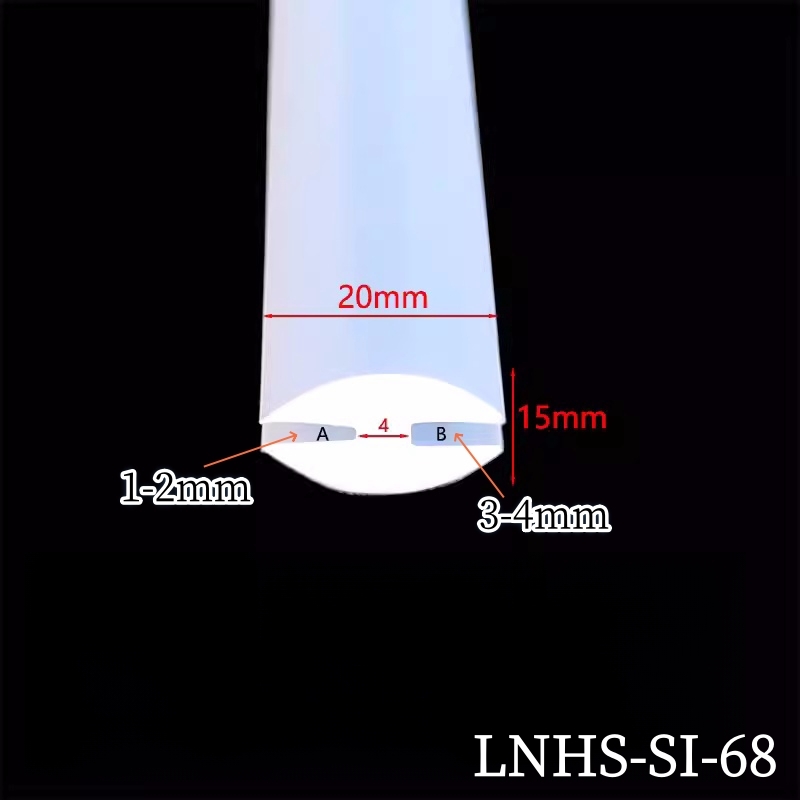

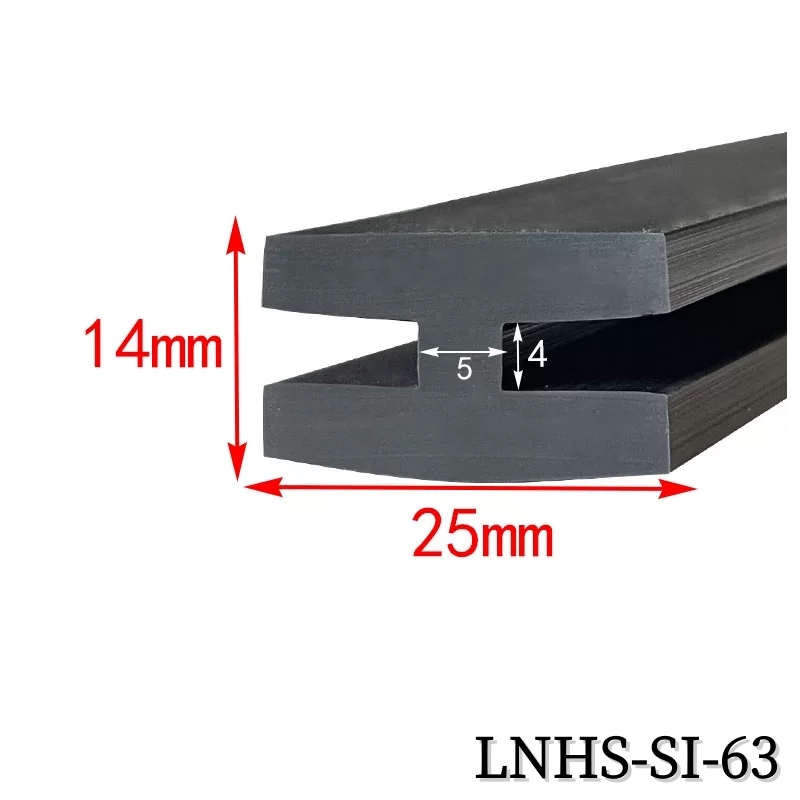

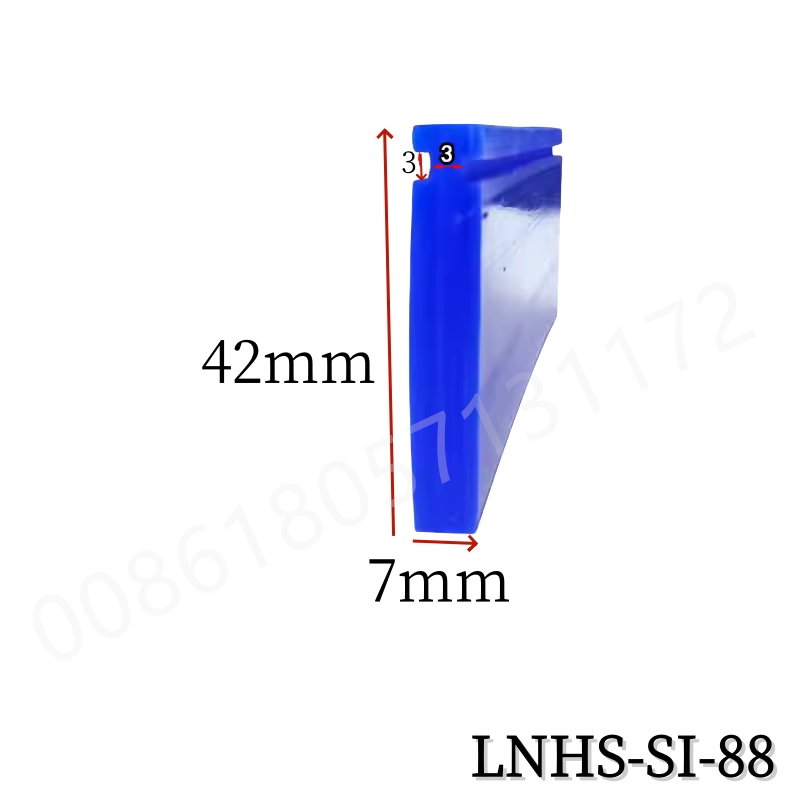

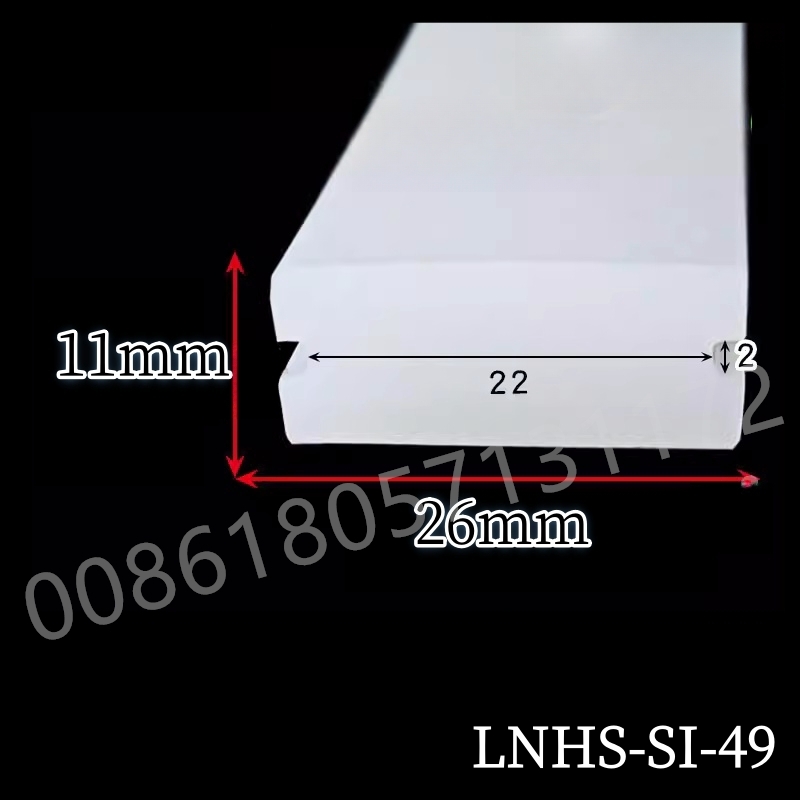

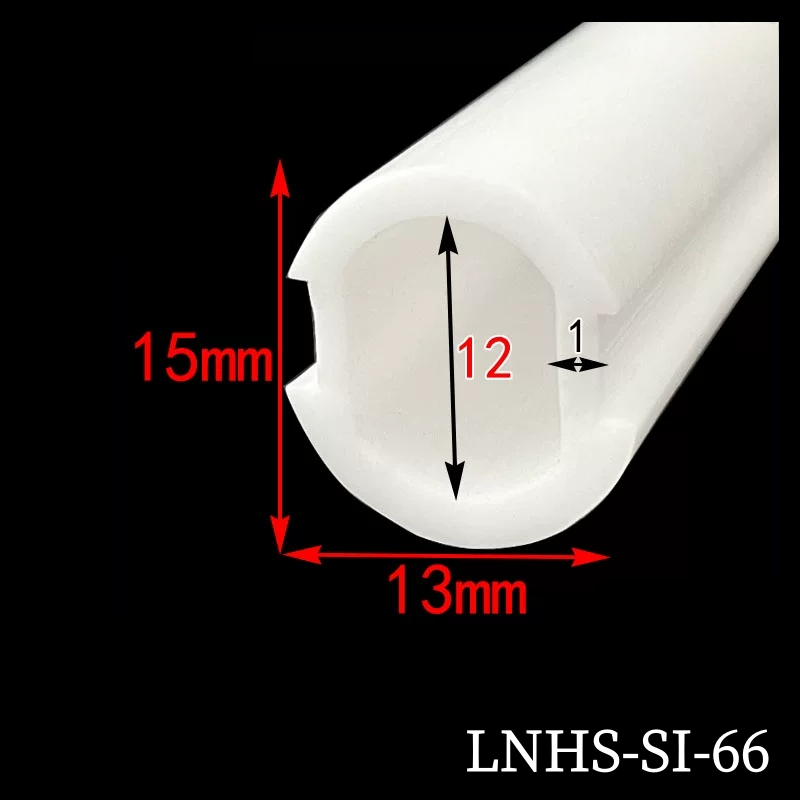

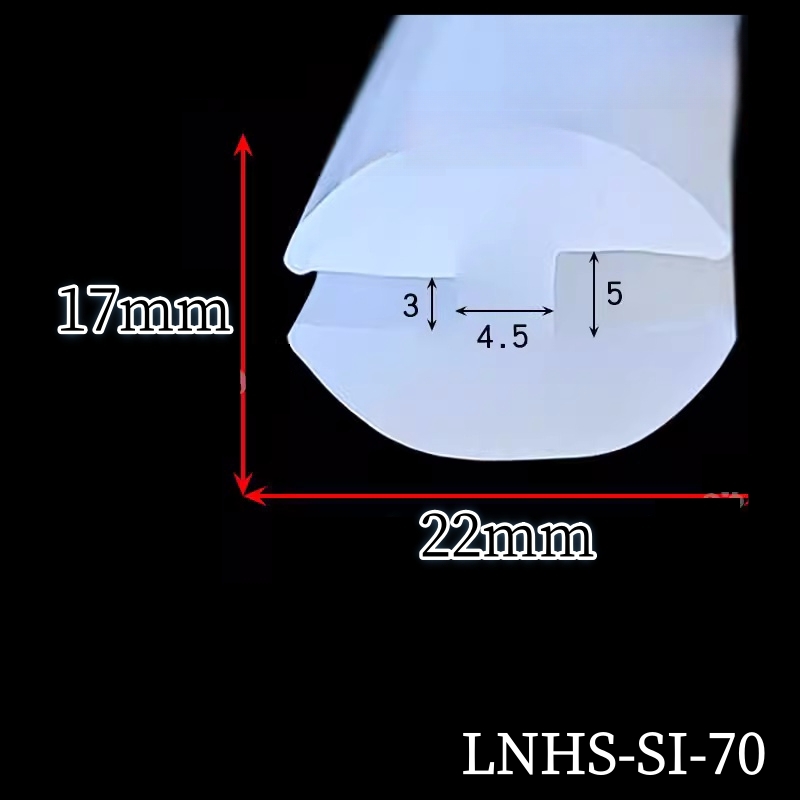

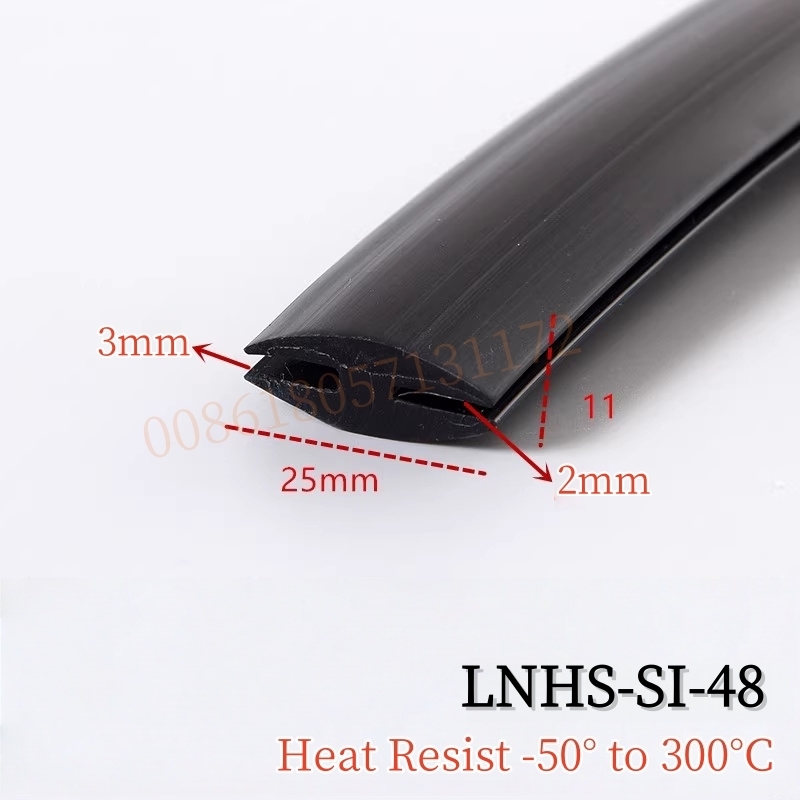

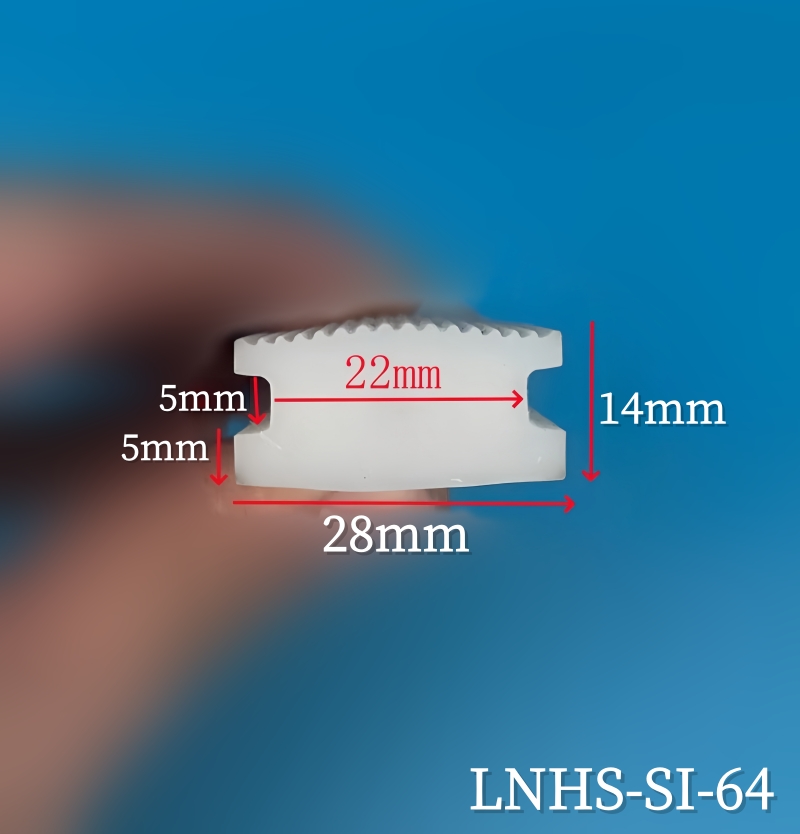

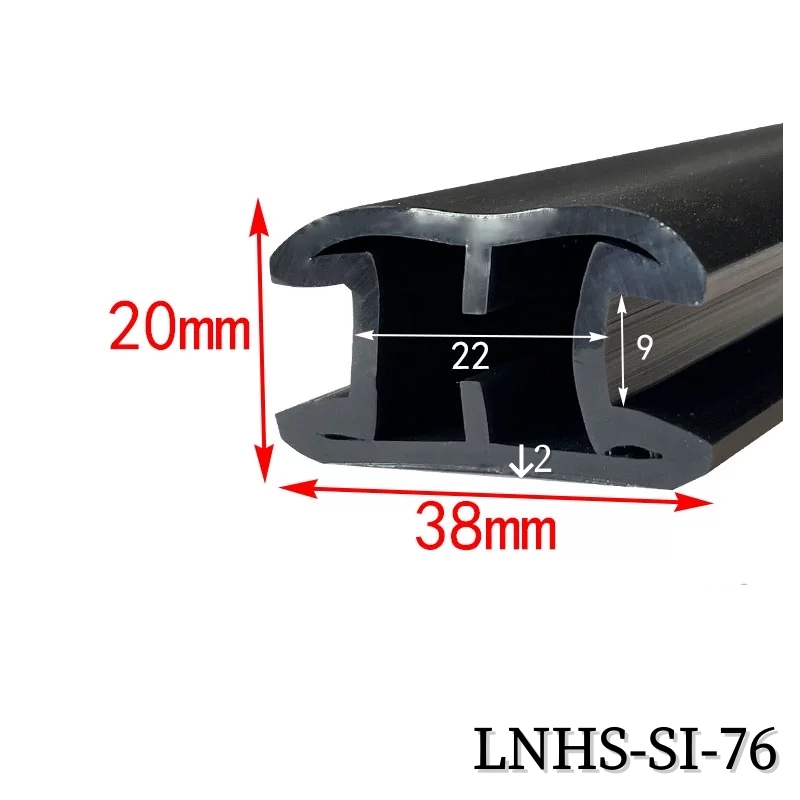

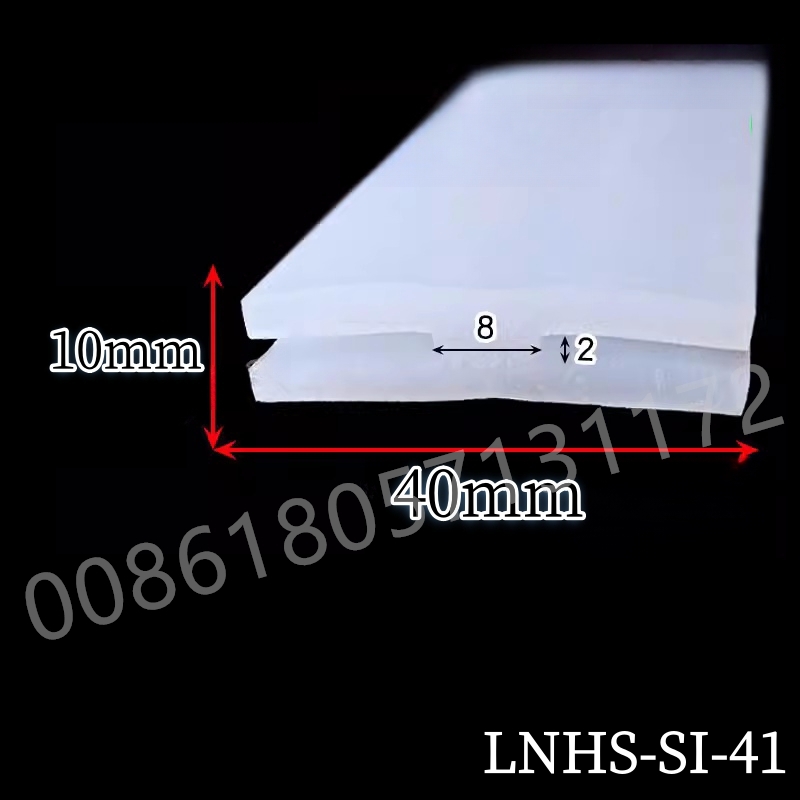

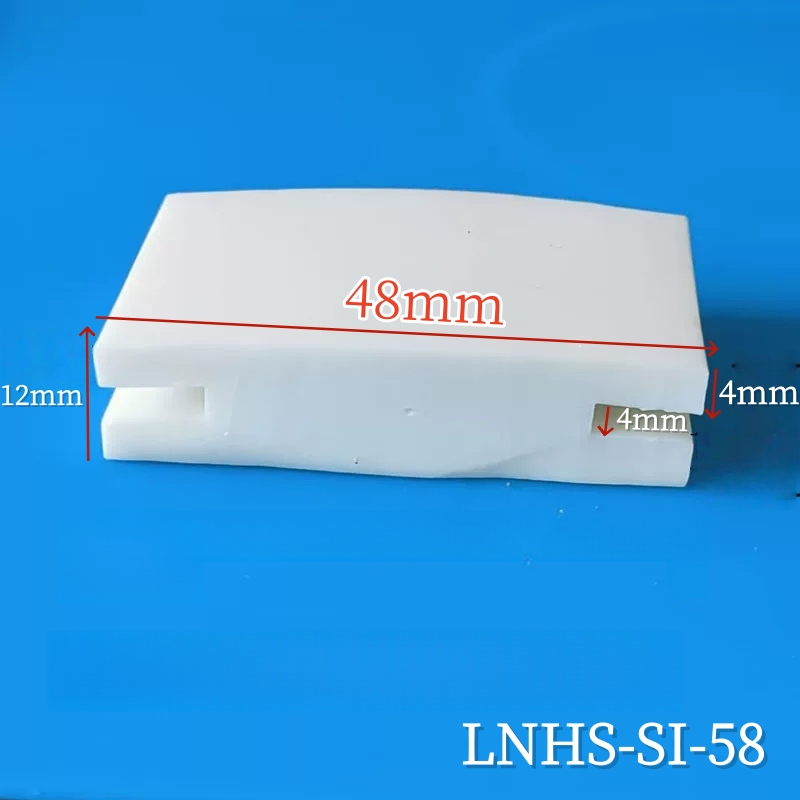

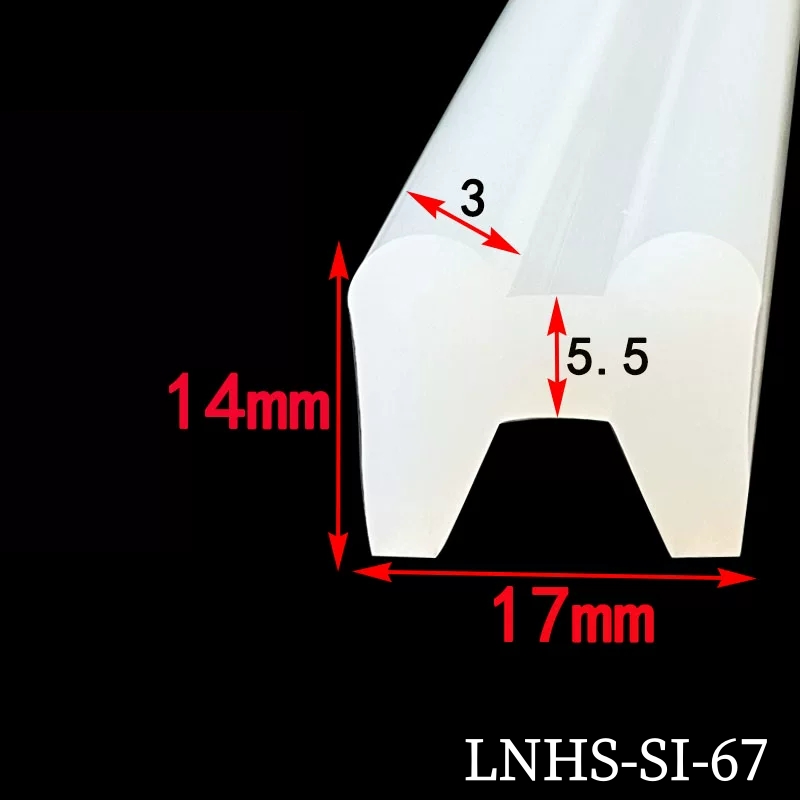

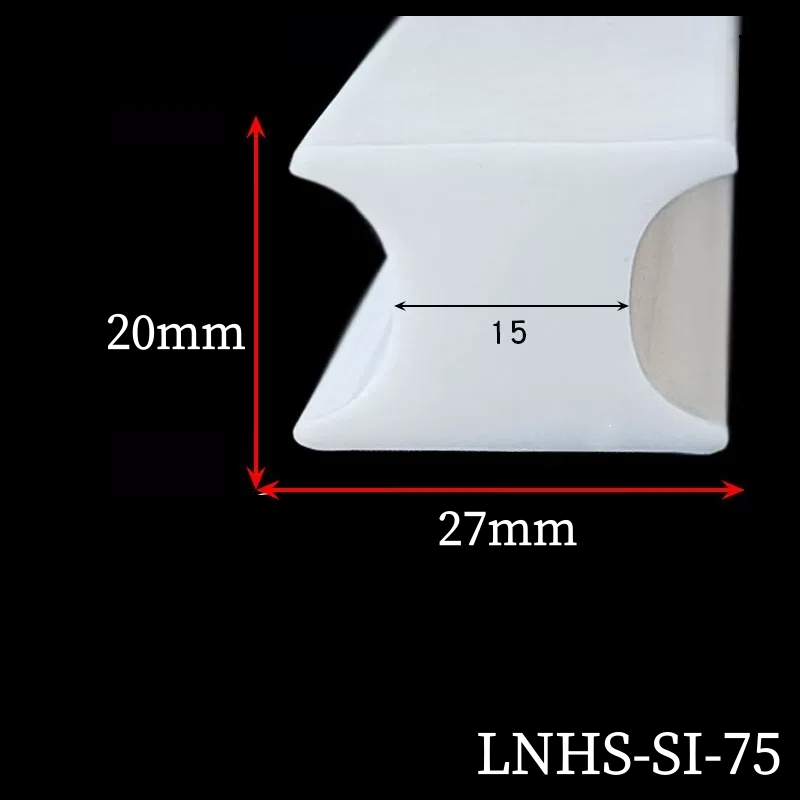

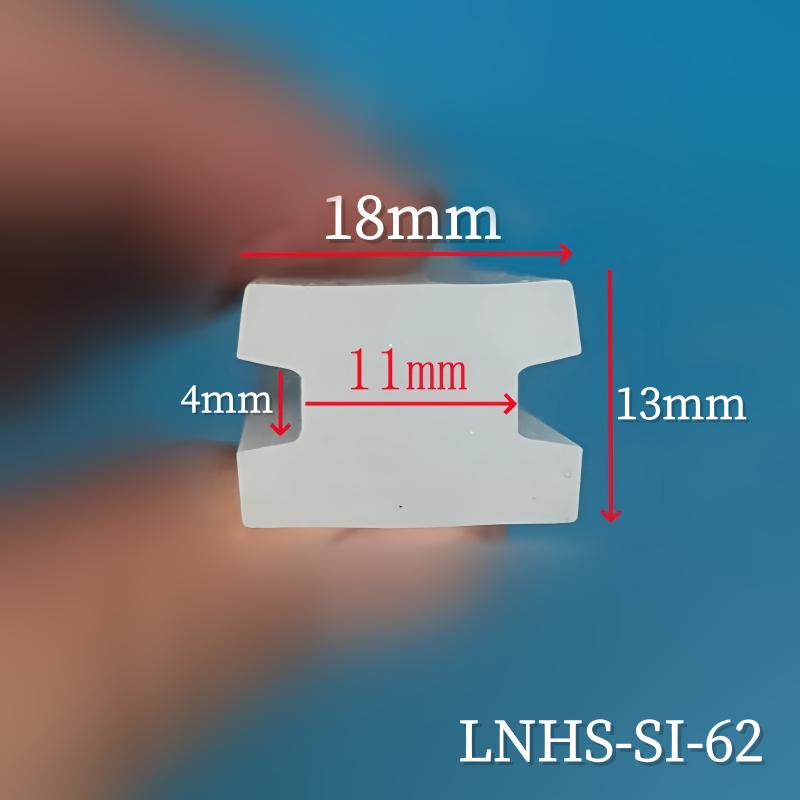

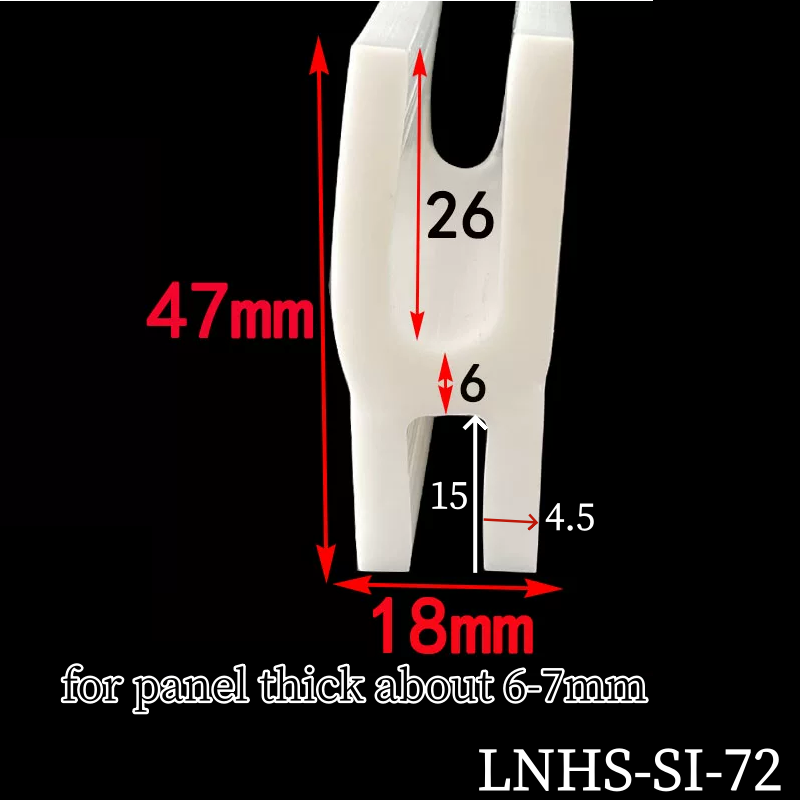

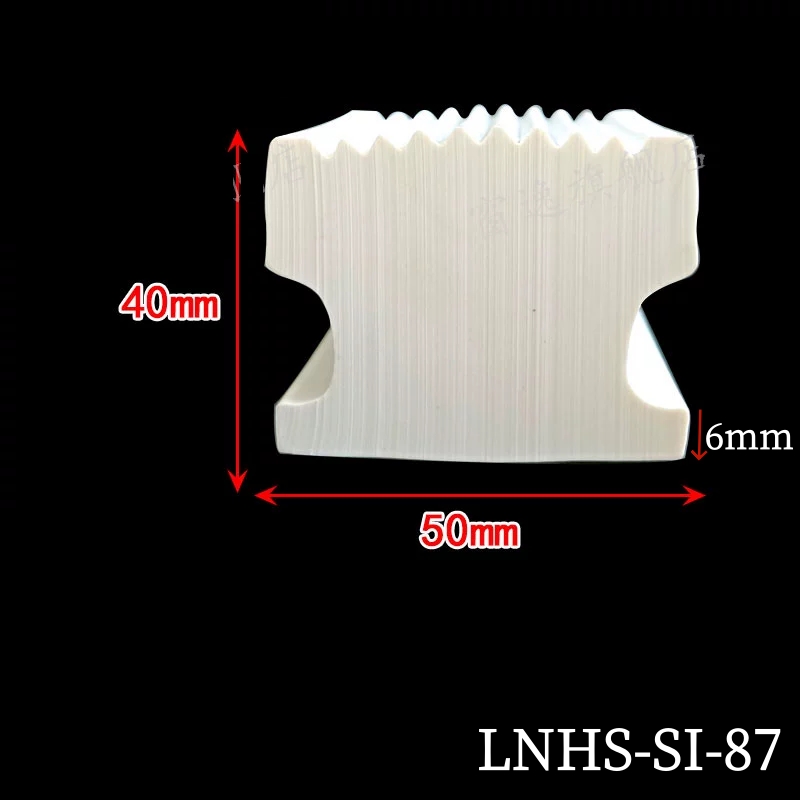

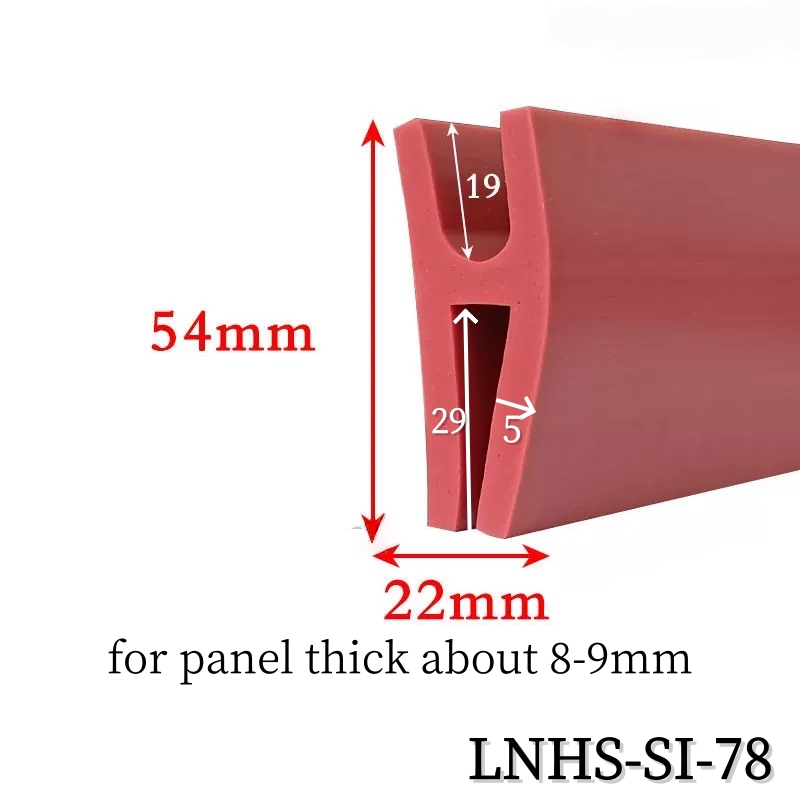

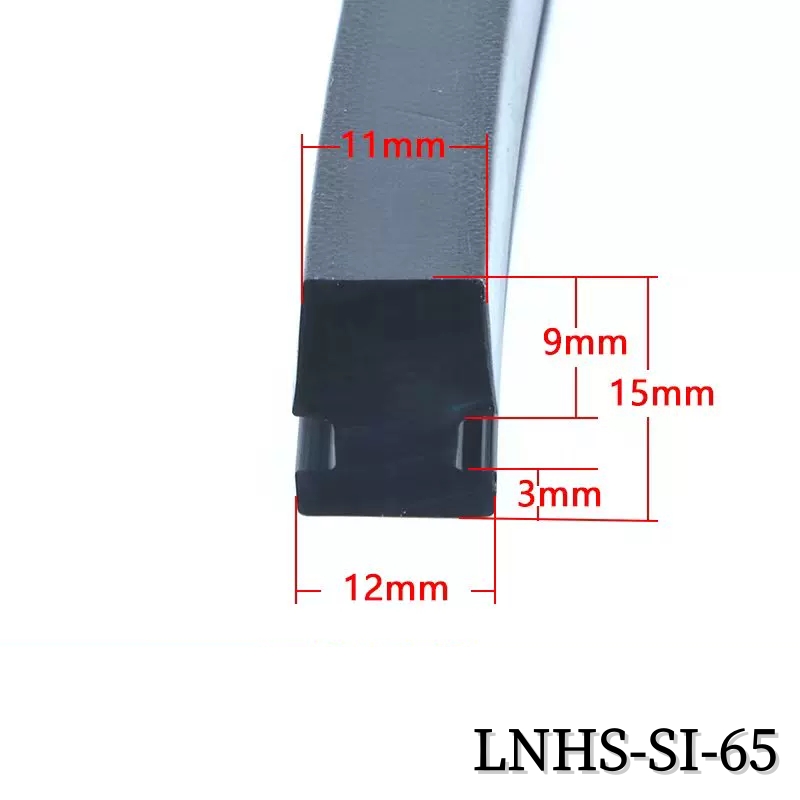

Size Chart
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
