I-Type Silicone Seal Strip (Groove Seal Gasket)
Product Overview
SealsHub supplies I-type silicone seal strips designed for groove sealing applications. The tapered profile features a wide top and narrow bottom, allowing the base to fit into a compatible groove for secure positioning.
Suitable for doors, windows, cabinets and light industrial equipment, this profile provides a flexible sealing interface for applications requiring groove-mounted installation.
Made from solid silicone rubber, the seal strip offers flexibility and resilience, with resistance to aging and temperature changes depending on the material grade and operating conditions.
Key Features
- Tapered I-Type Profile: Wide top and narrow bottom for compatible groove installation.
- Groove-Fitting Base: Designed to fit matching single-slot grooves for stable positioning.
- Flexible Silicone Rubber: Supports installation and provides a resilient sealing interface.
- Environmental Resistance: Silicone rubber can offer resistance to aging, weathering and UV exposure, depending on the compound and service conditions.
- Durable Construction: Suitable for repeated use in compatible sealing applications.
Note: Color is specified only for non-standard color options. Products without a color indication are supplied in the standard color shown in the product specifications.
Specifications
- Product Type: I-Type Silicone Seal Strip
- Material: Solid Silicone Rubber

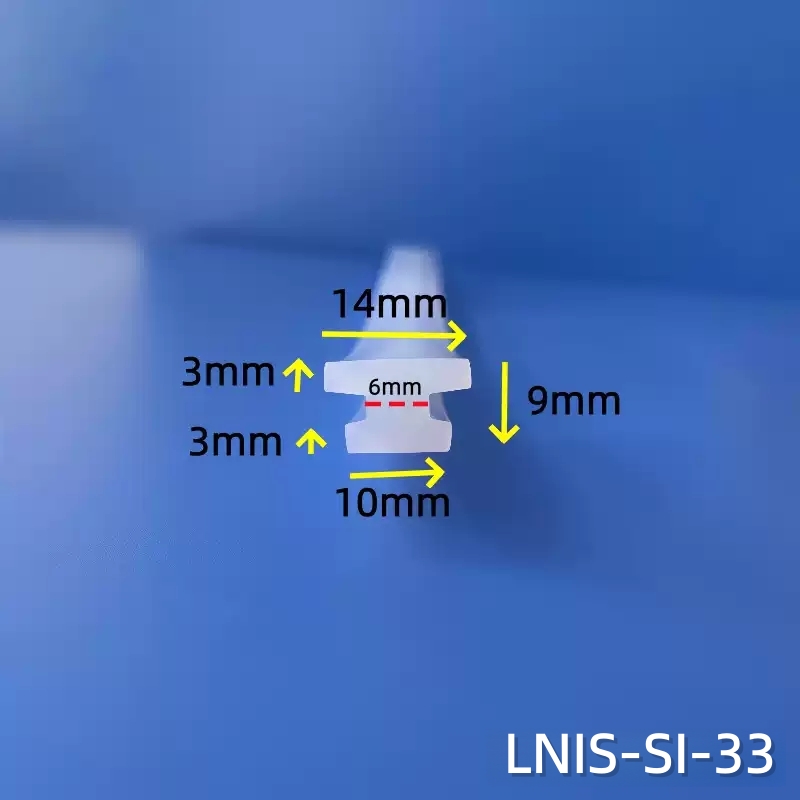

- Structure: I-Type Tapered Profile (Wide Top / Narrow Bottom)
- Installation: Groove Insertion
- Groove Compatibility: Compatible Single-Slot Grooves
- Temperature Range: -40°C to +200°C (subject to silicone compound grade and operating conditions)
- Hardness: 50–70 Shore A (customizable, subject to confirmation)
- Color Options: Black / White / Grey / Custom Colors
- Manufacturing Process: Silicone Extrusion
Length Selection Guide
Available lengths vary according to profile dimensions, production requirements, order quantity and shipping method.
- Standard Lengths: Common options may include 1 m, 3 m and 10 m, depending on the specification and availability.
- Large Profiles: Long-length options may be limited by package dimensions and shipping requirements. Commercial express, air freight or sea freight can be considered according to order size and destination.
- Bulk Orders: Custom lengths and production quantities are available for wholesale orders and engineering projects, subject to confirmation.
- Custom Production: If a requested size or length is not listed, contact SealsHub to check whether it can be produced using existing extrusion tooling. Additional tooling charges may be avoided when suitable tooling is already available.
Application
This I-type silicone seal strip is suitable for compatible groove-sealing applications, including:
- Door frame sealing systems
- Window groove sealing
- Cabinet and furniture sealing
- Electrical enclosure sealing
- HVAC and light industrial equipment
- Construction gap sealing
- Machinery and equipment panel sealing
Size Selection
Choose the profile according to the groove width, groove depth, profile height and required sealing gap. Check the dimensions of both the groove and the seal strip before ordering to ensure a suitable fit.
Different cross-section sizes are available for various installation conditions. For assistance with selection, provide SealsHub with the groove dimensions, sealing gap and application details.

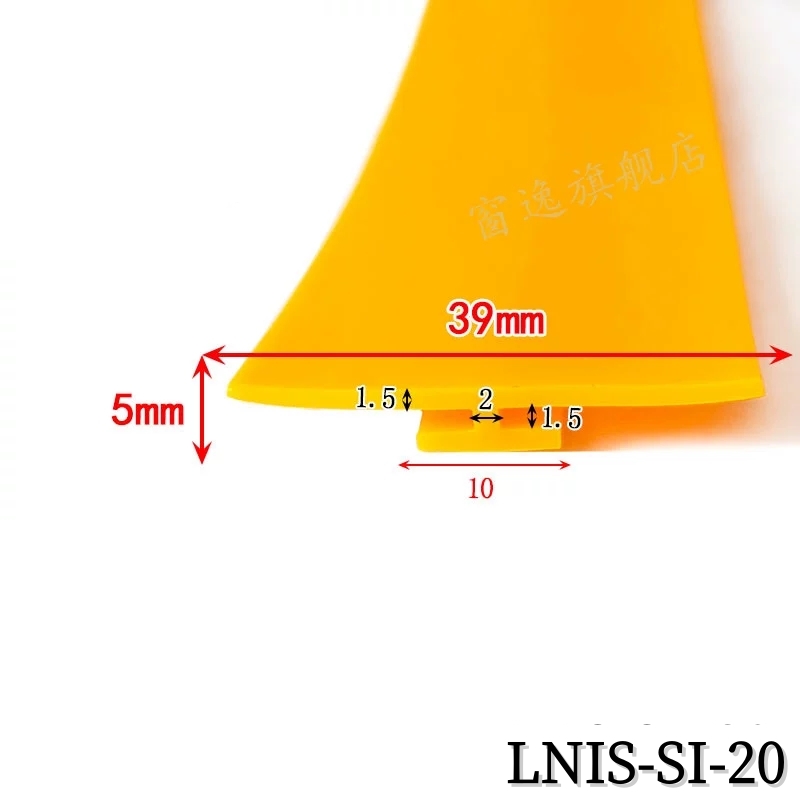

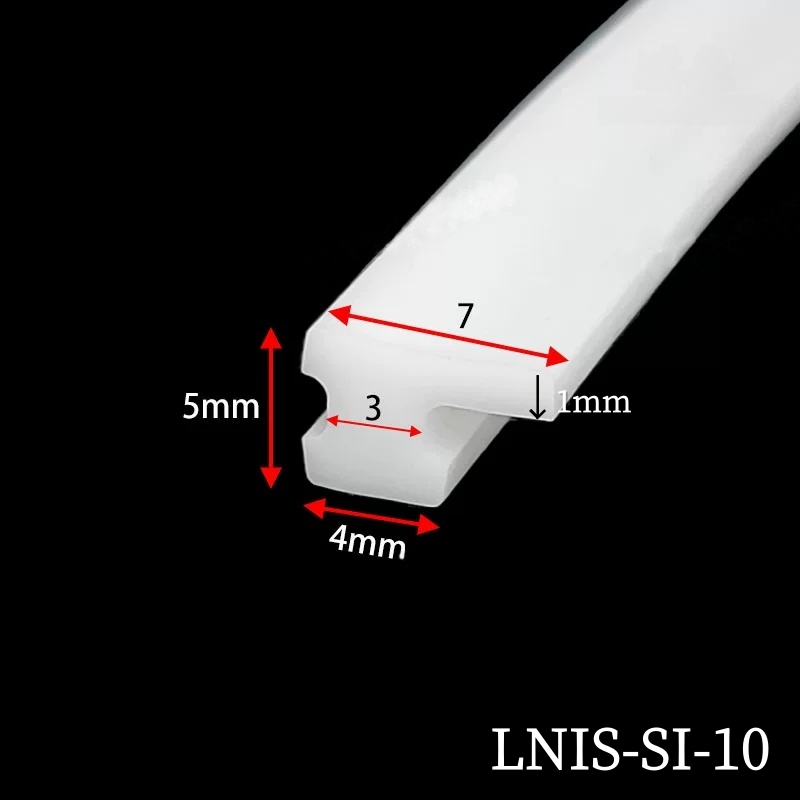

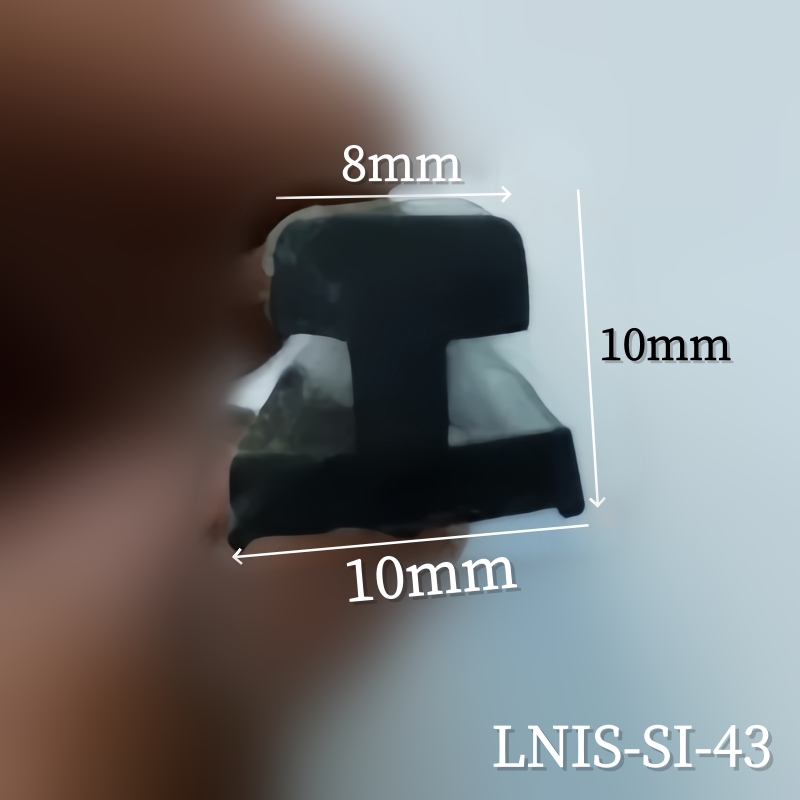

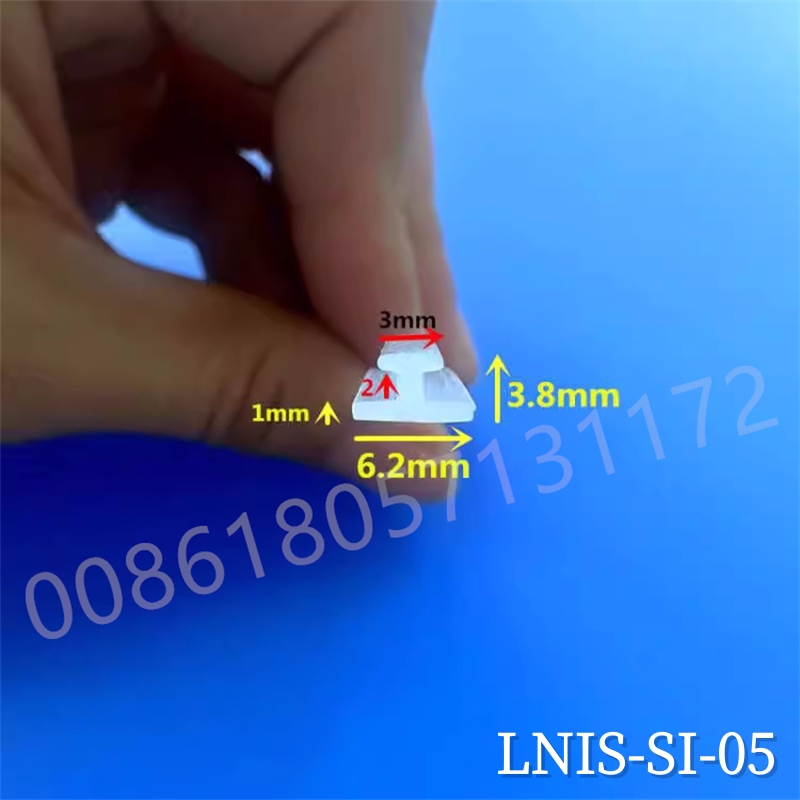

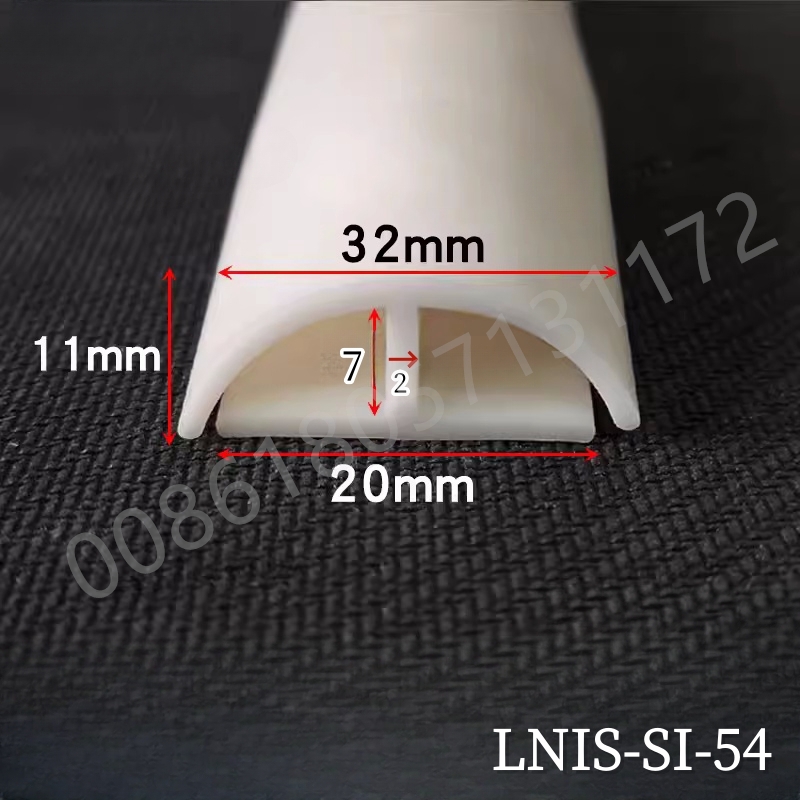

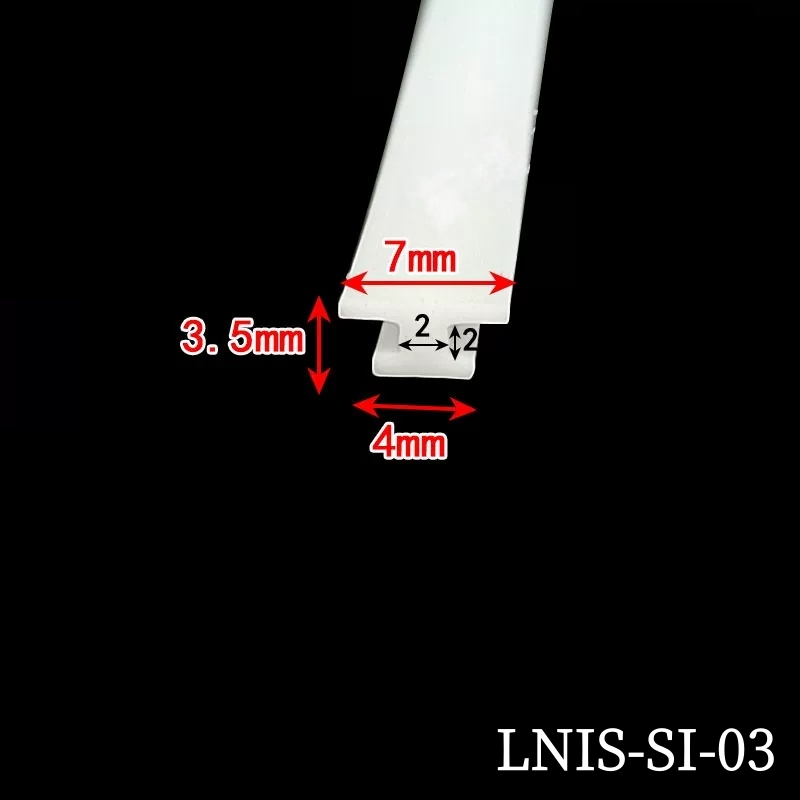

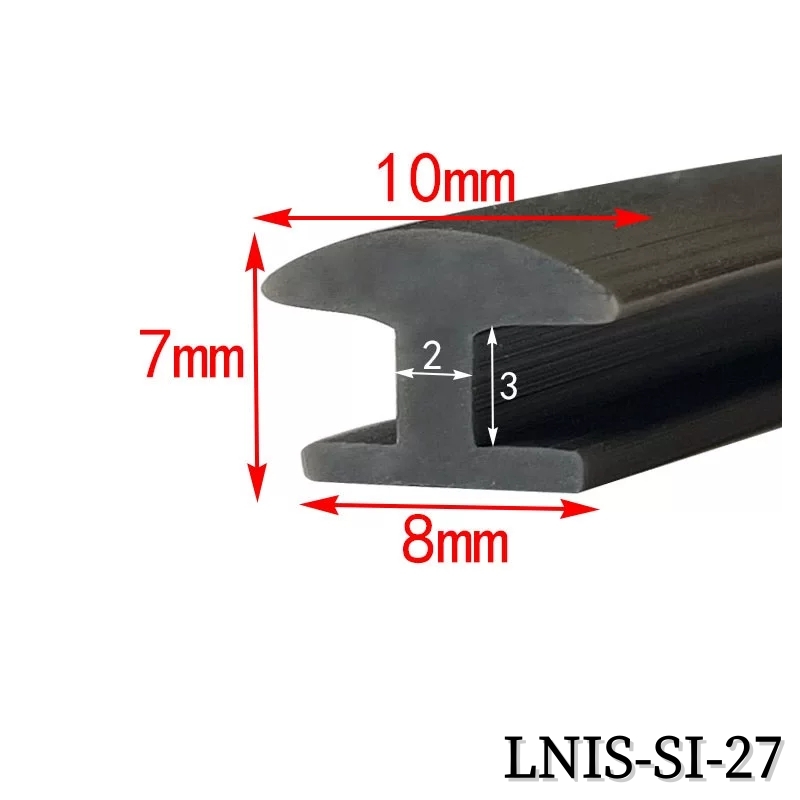

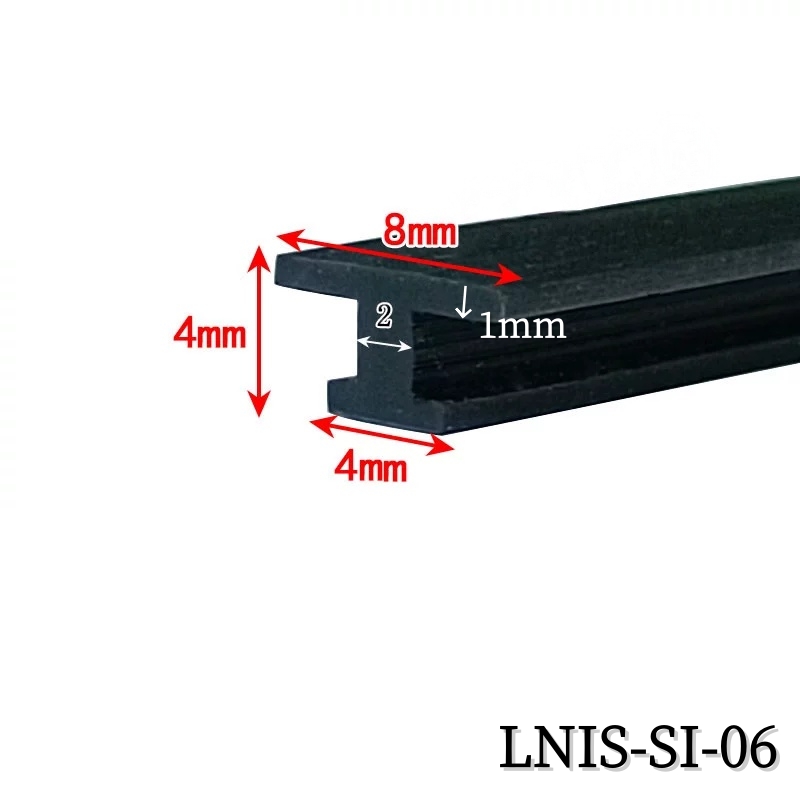

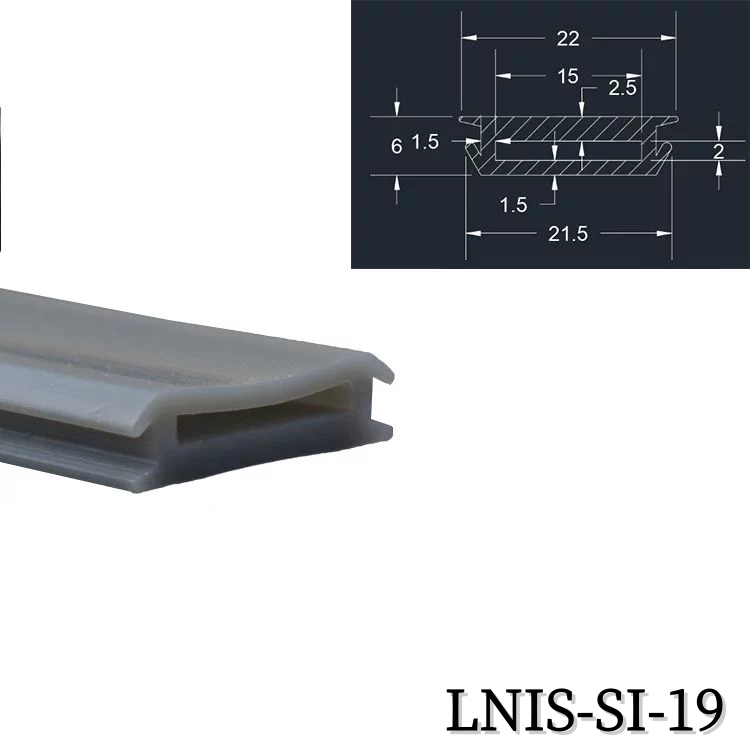

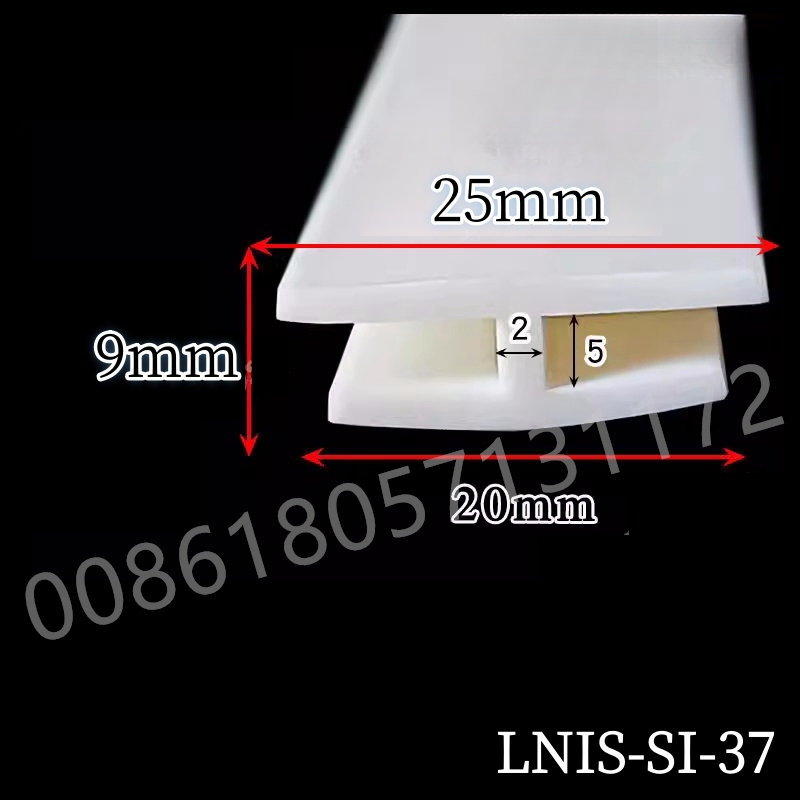

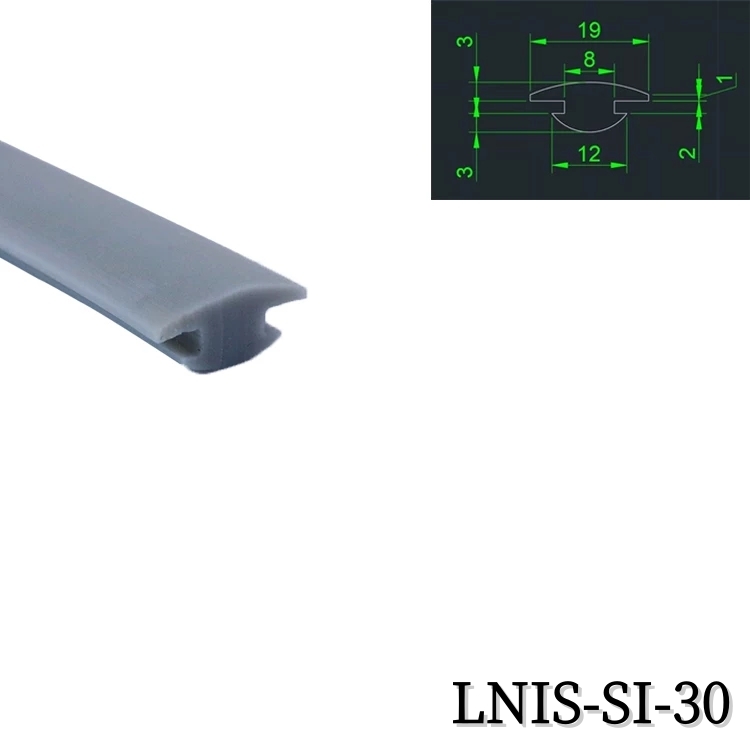

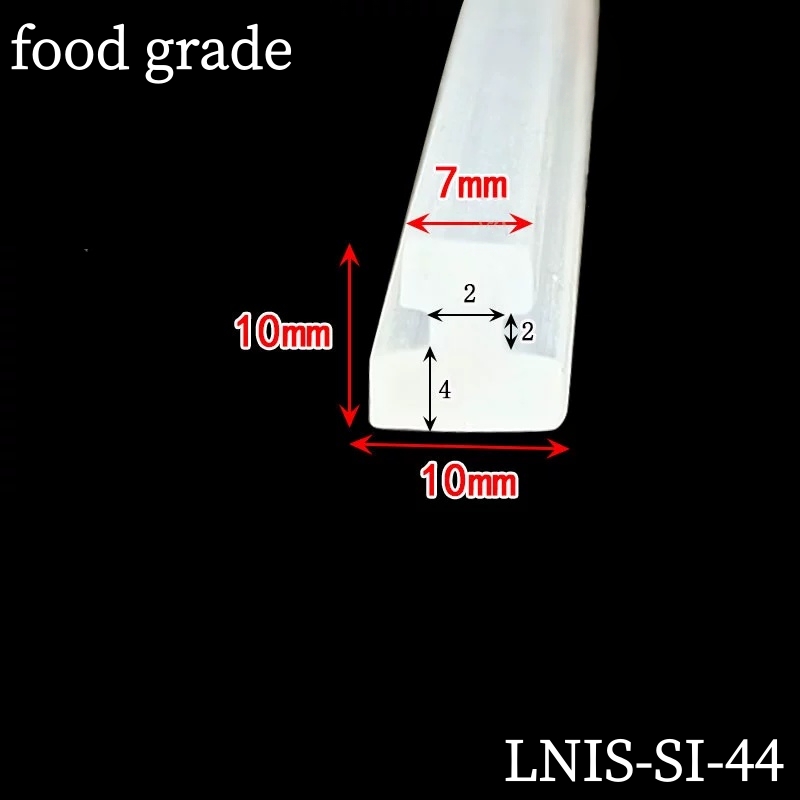

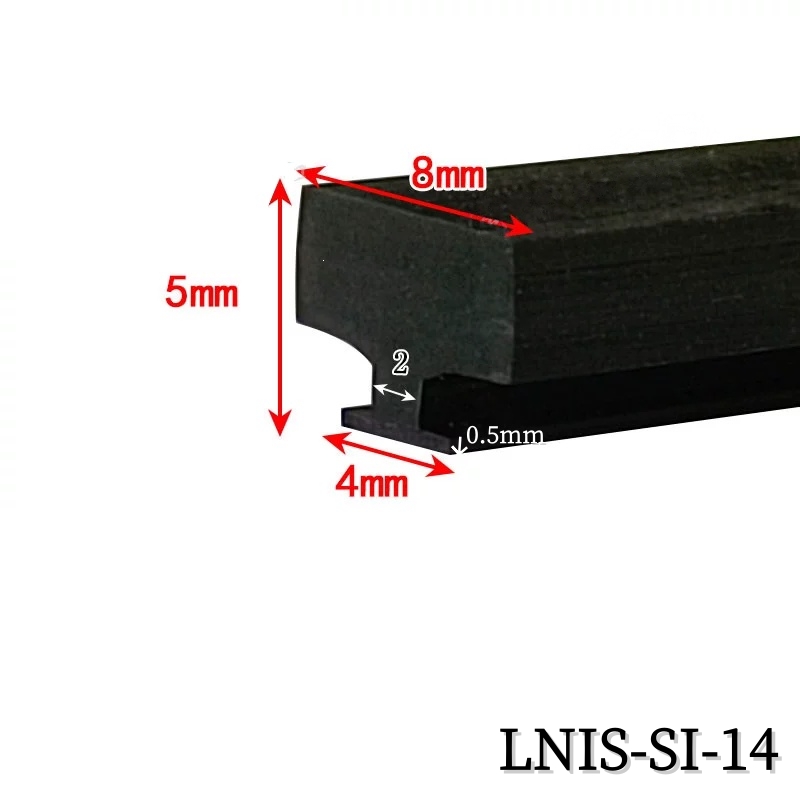

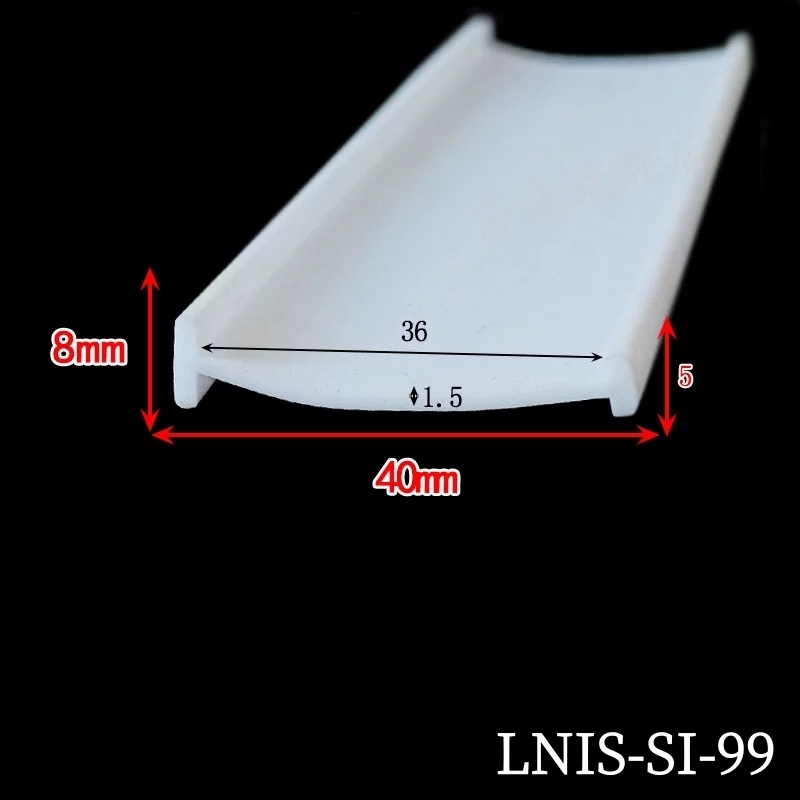

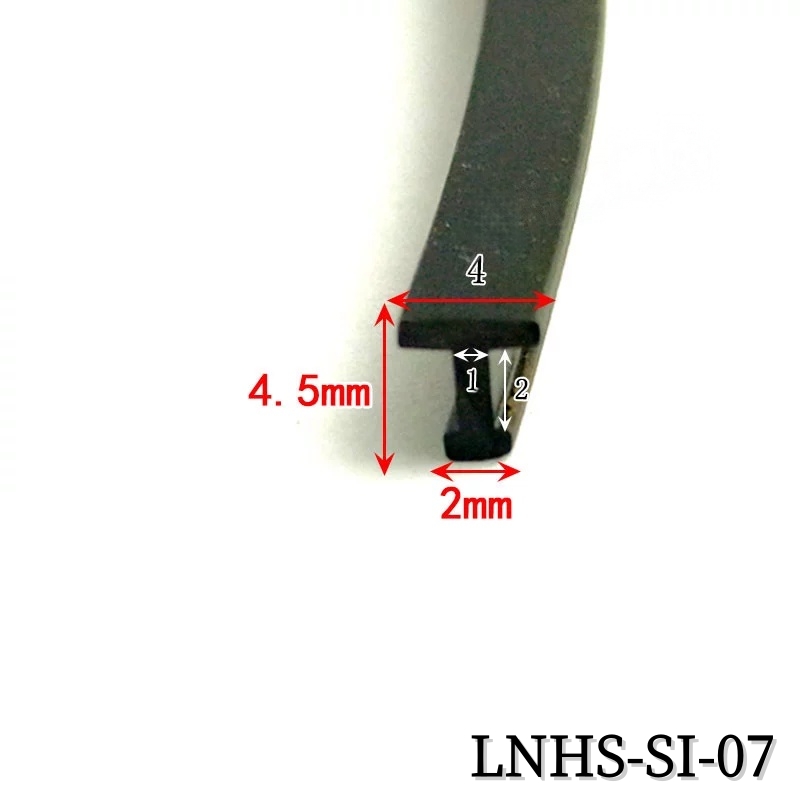

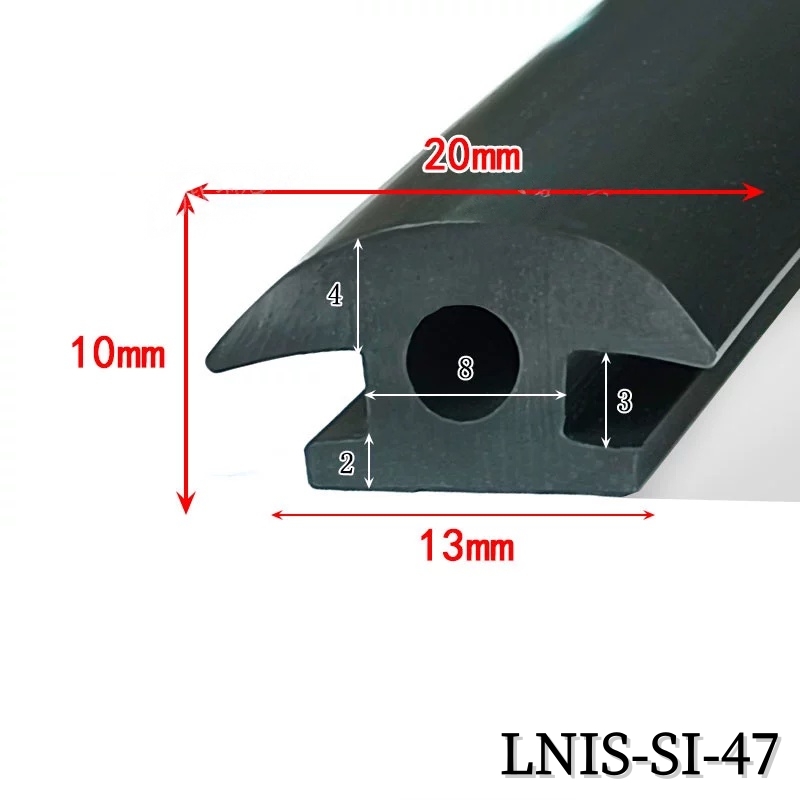

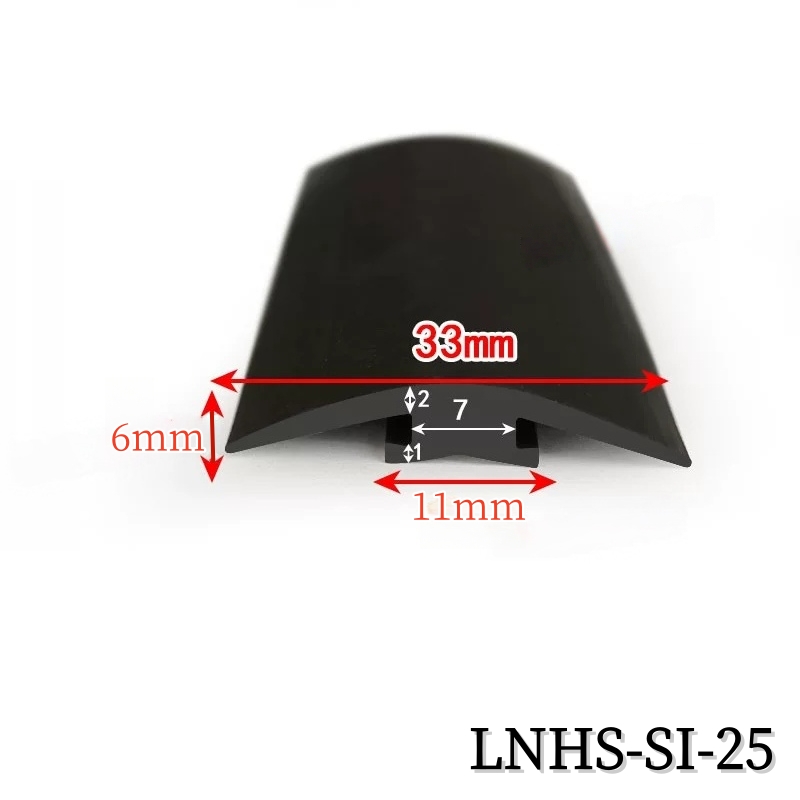

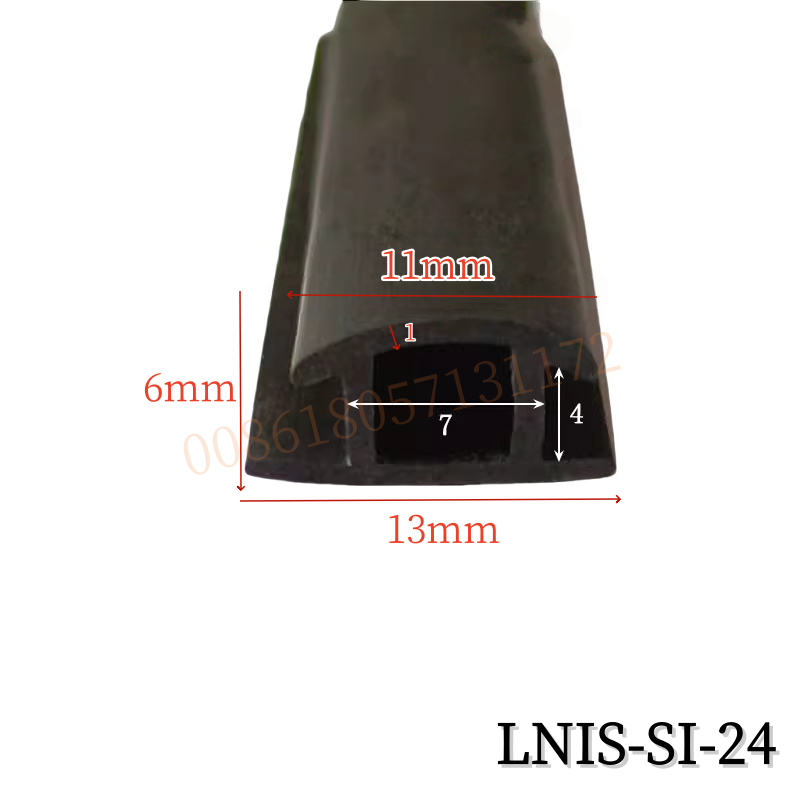

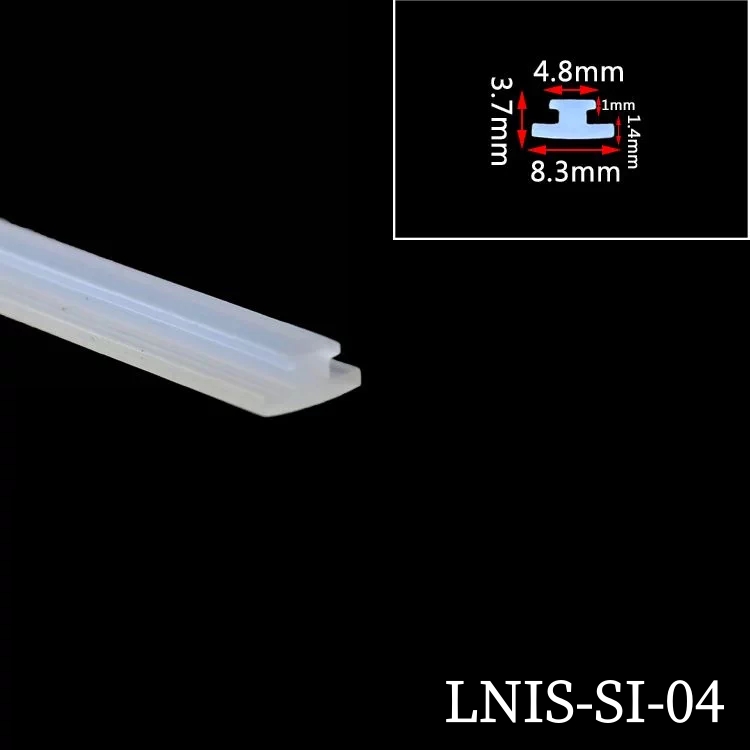

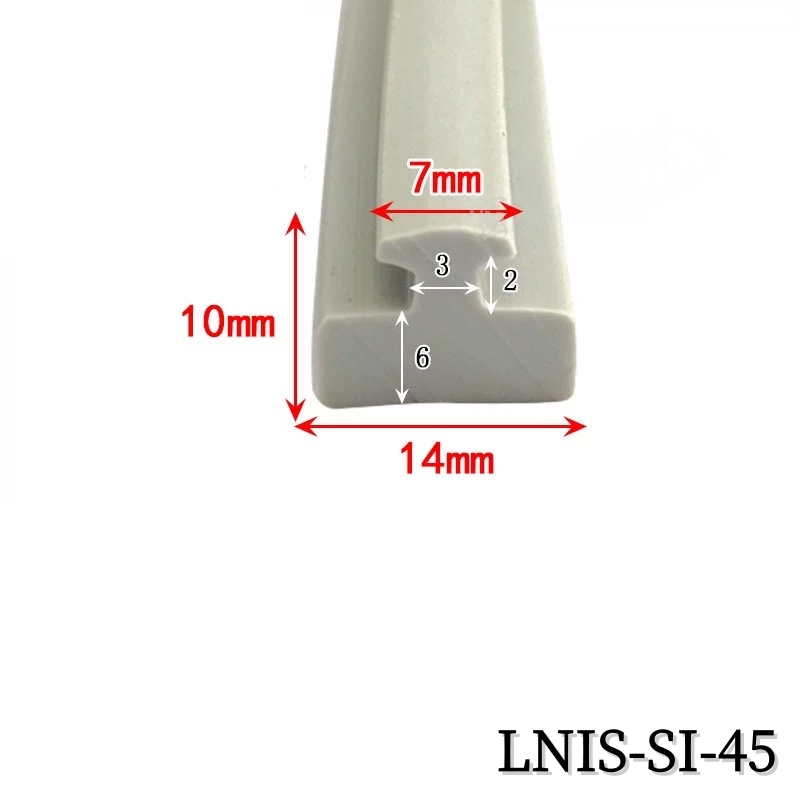

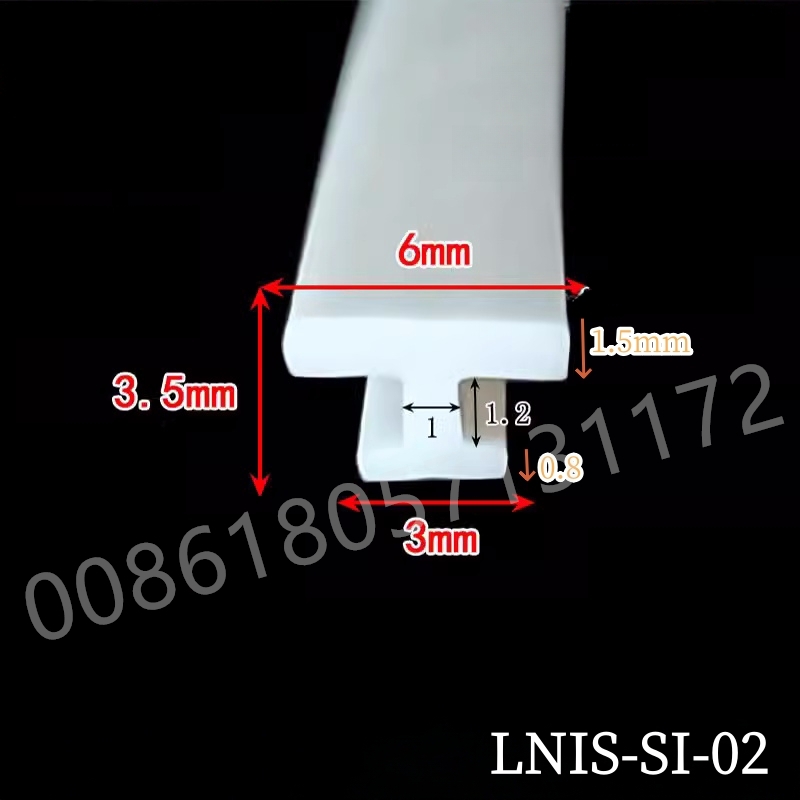

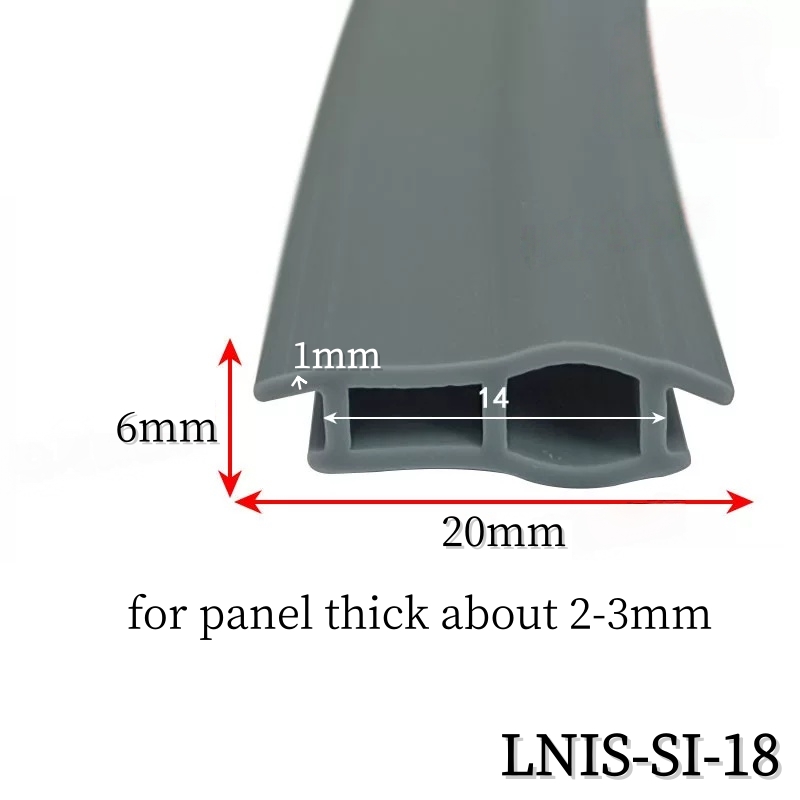

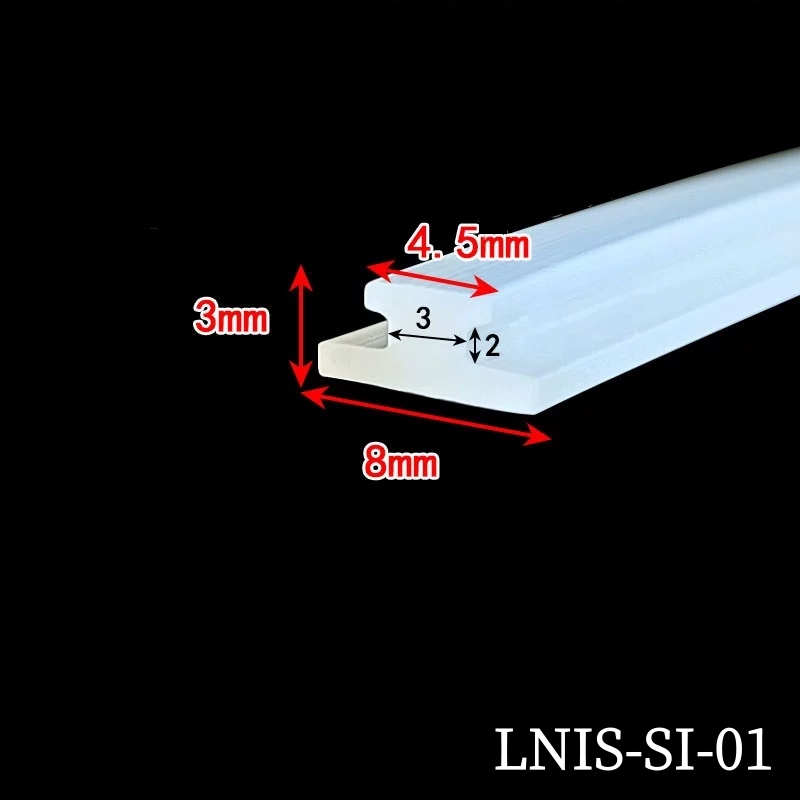

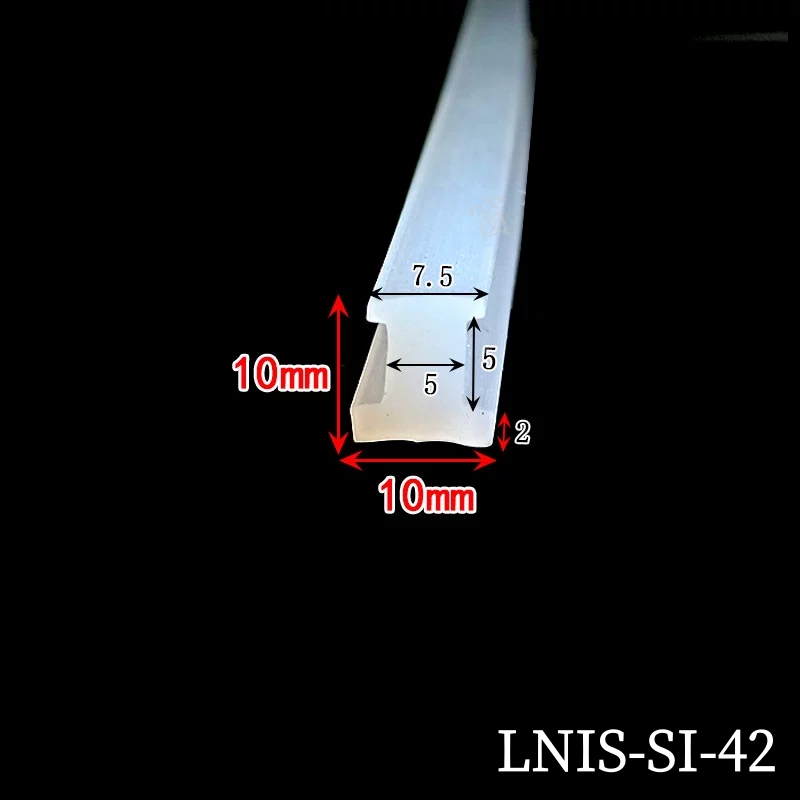

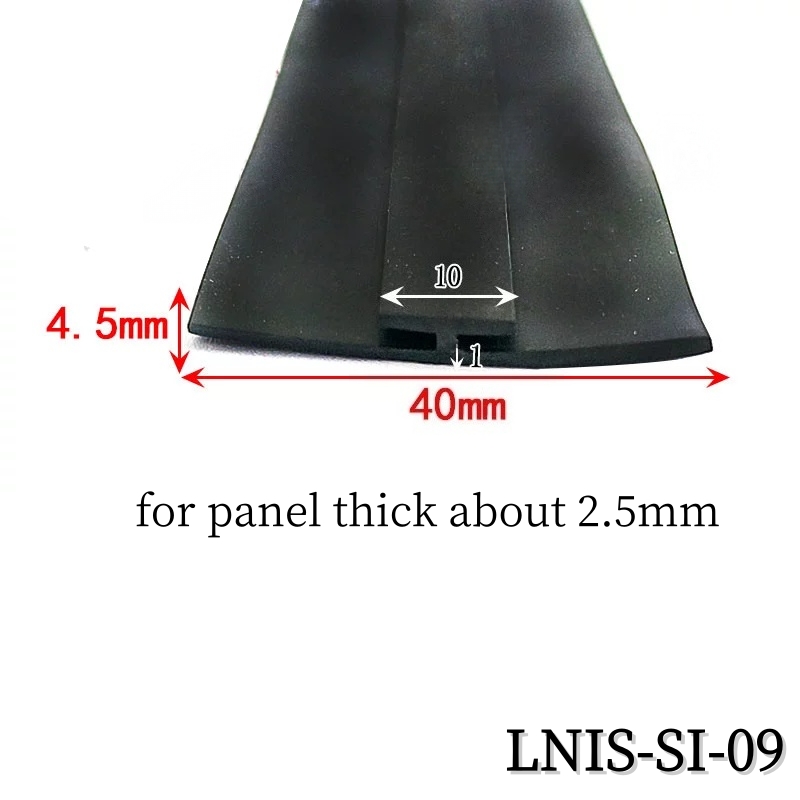

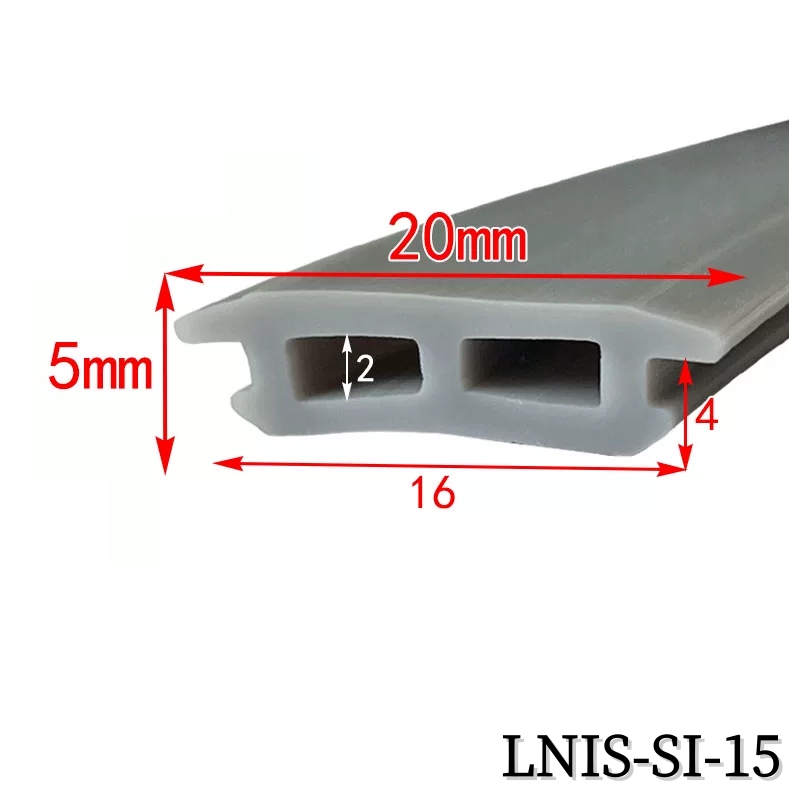

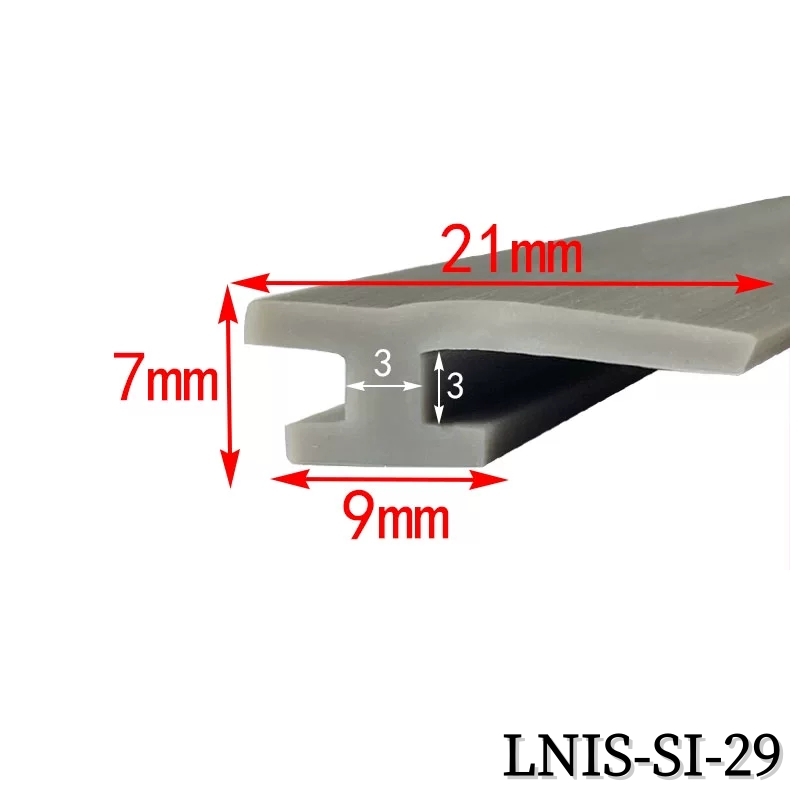

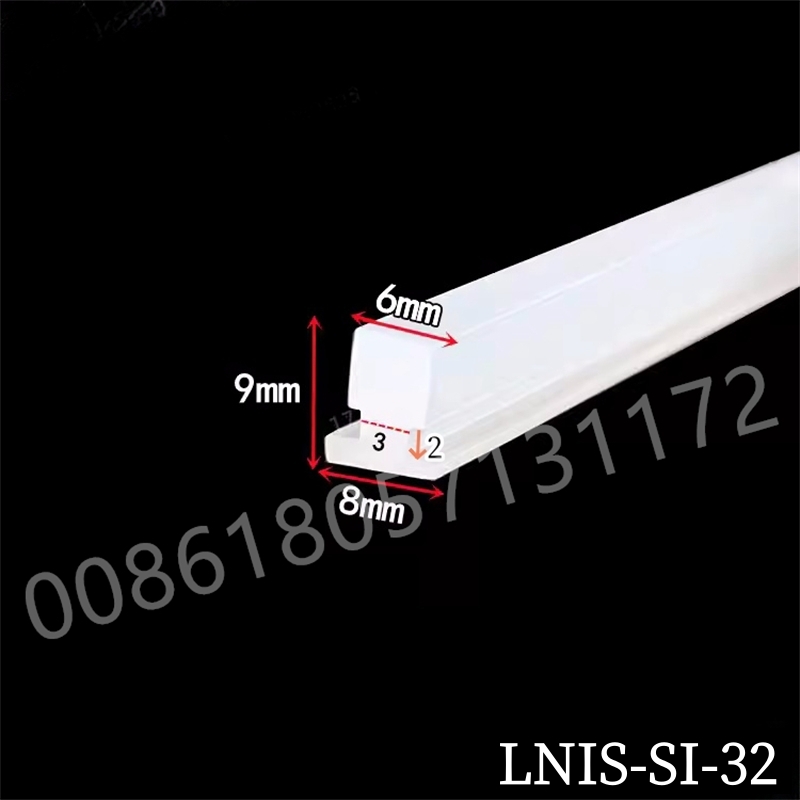

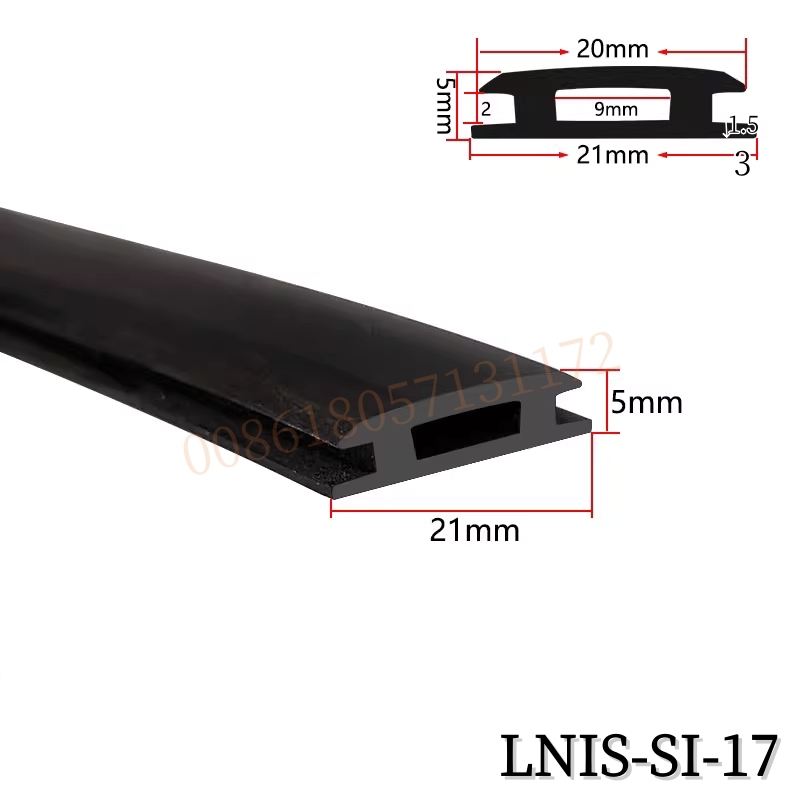

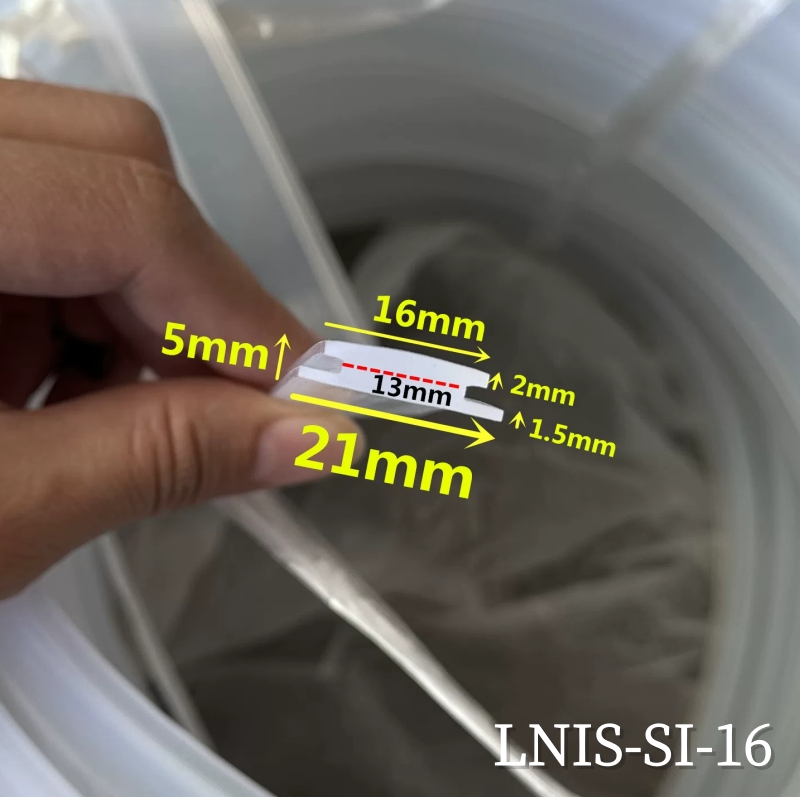

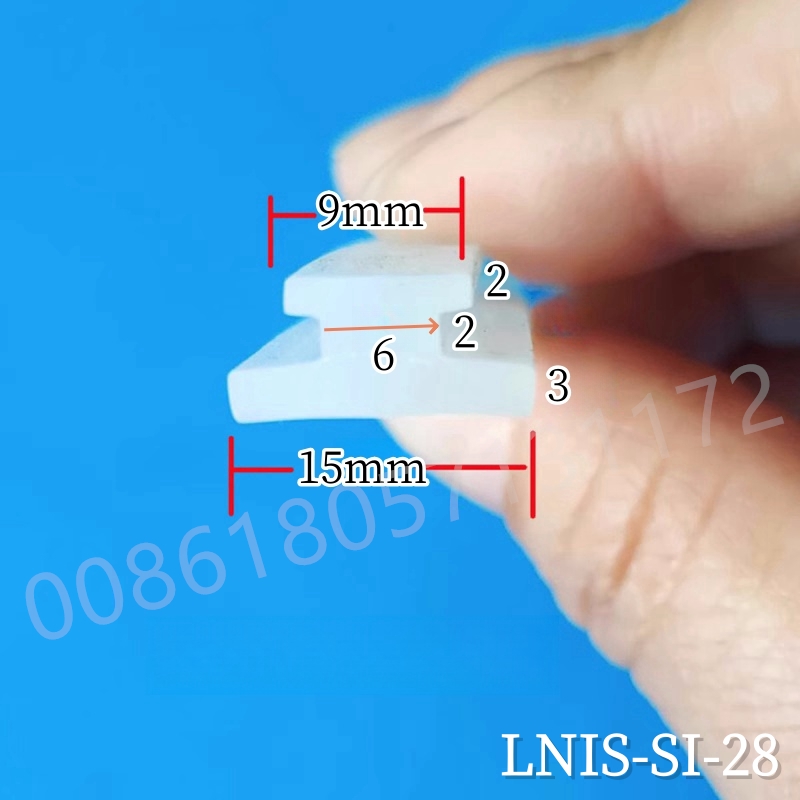

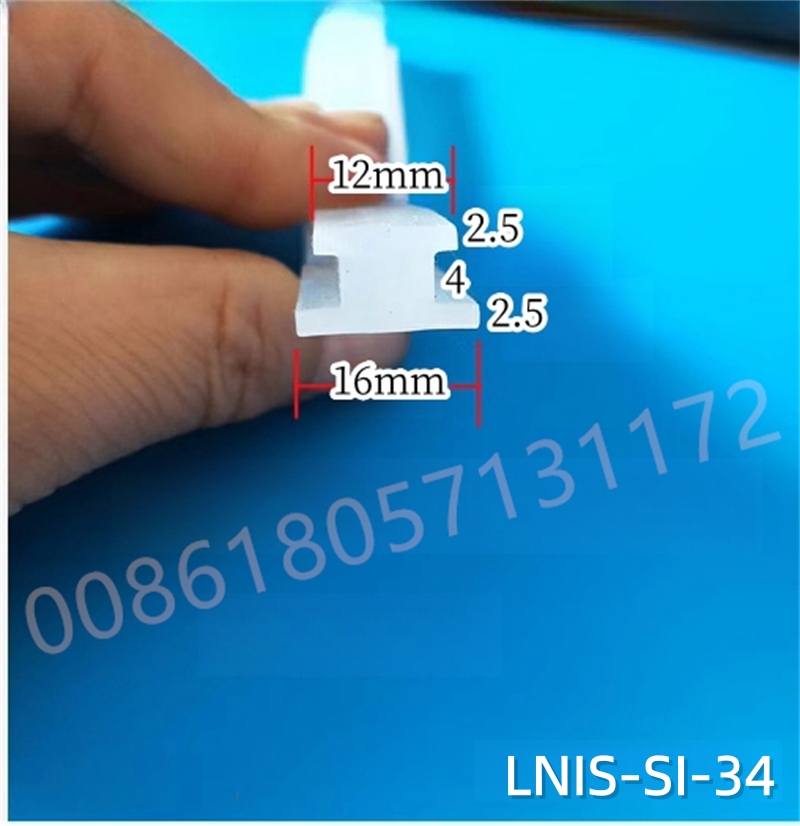

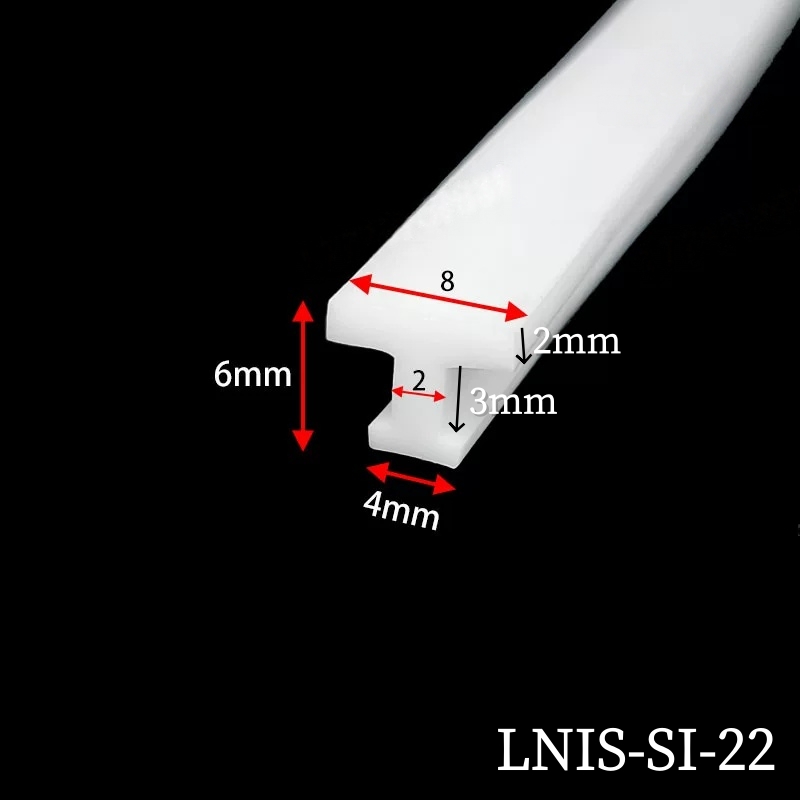

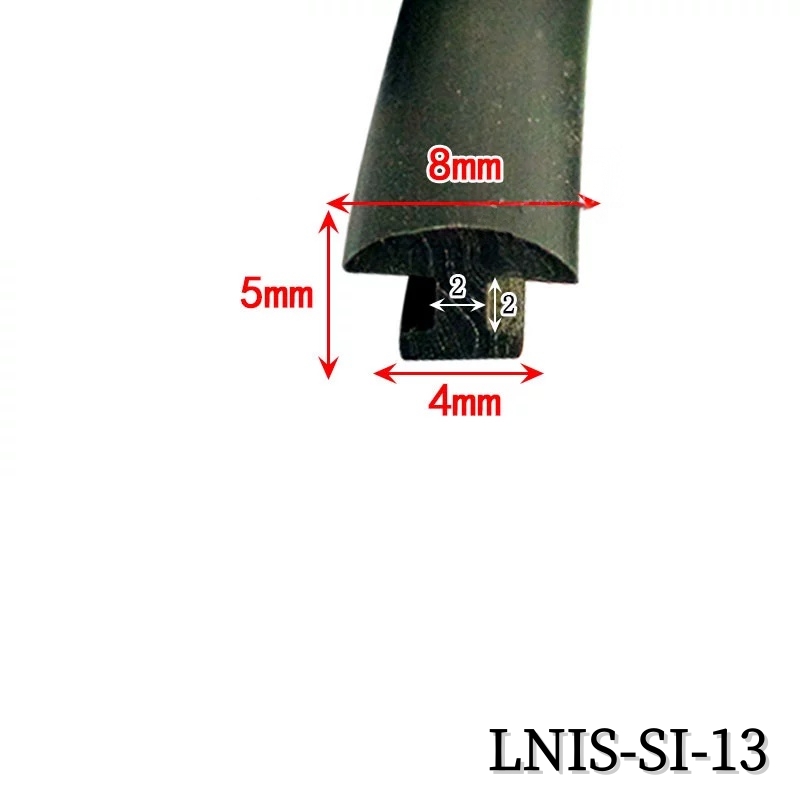

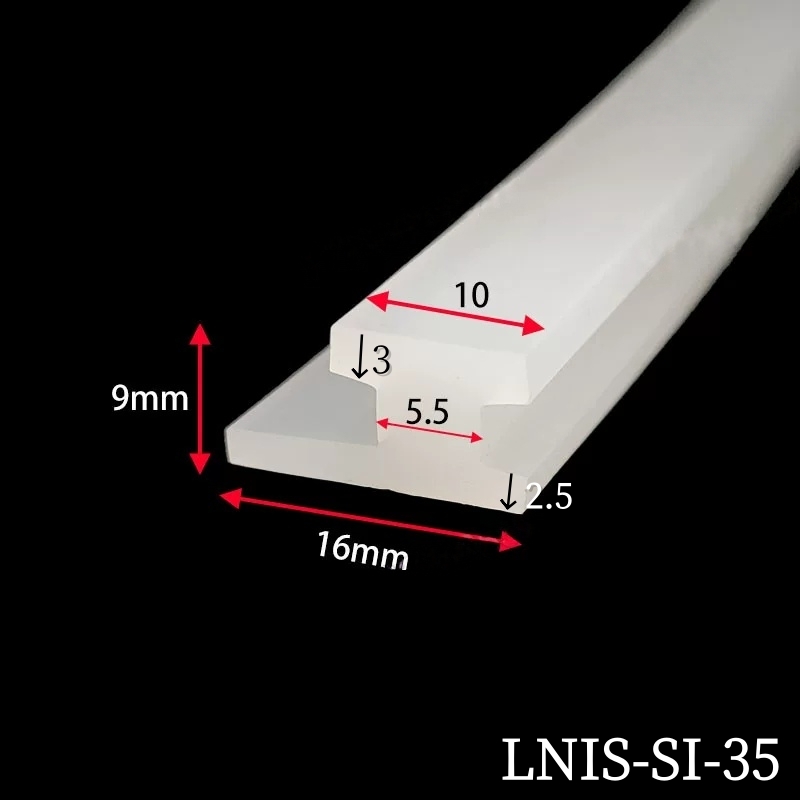

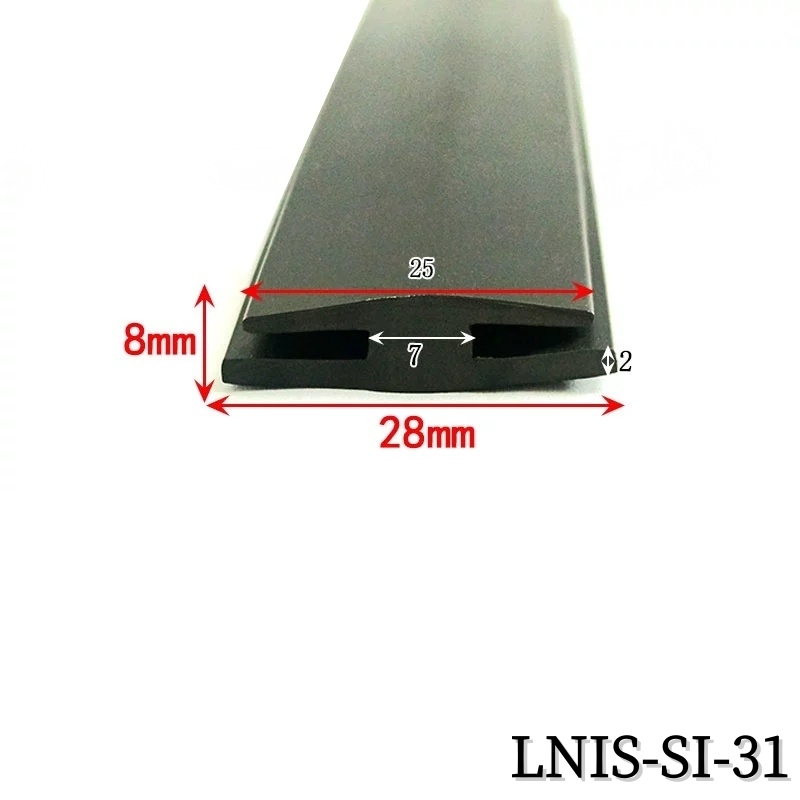

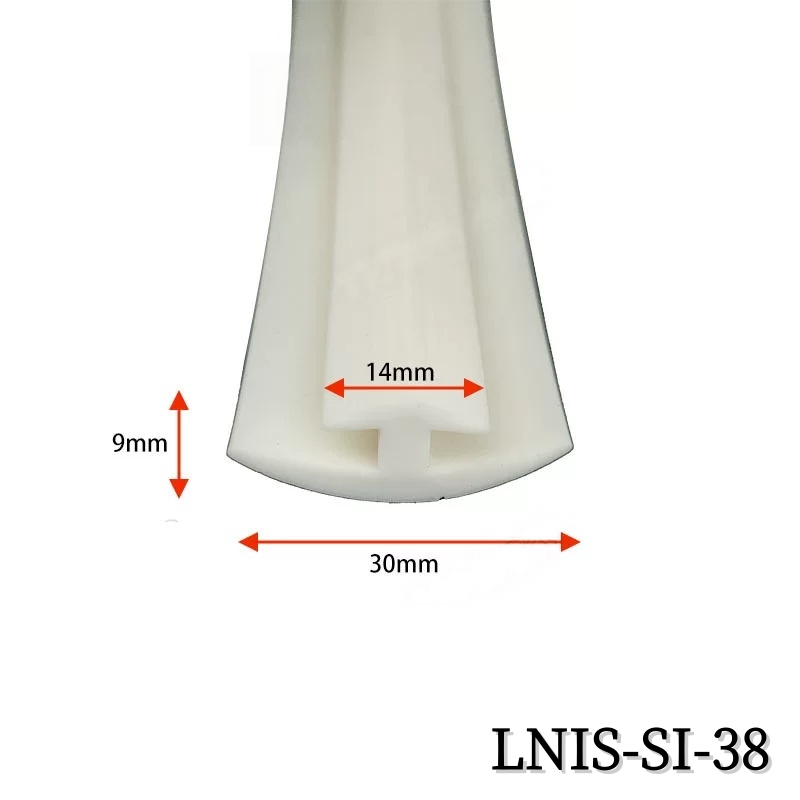

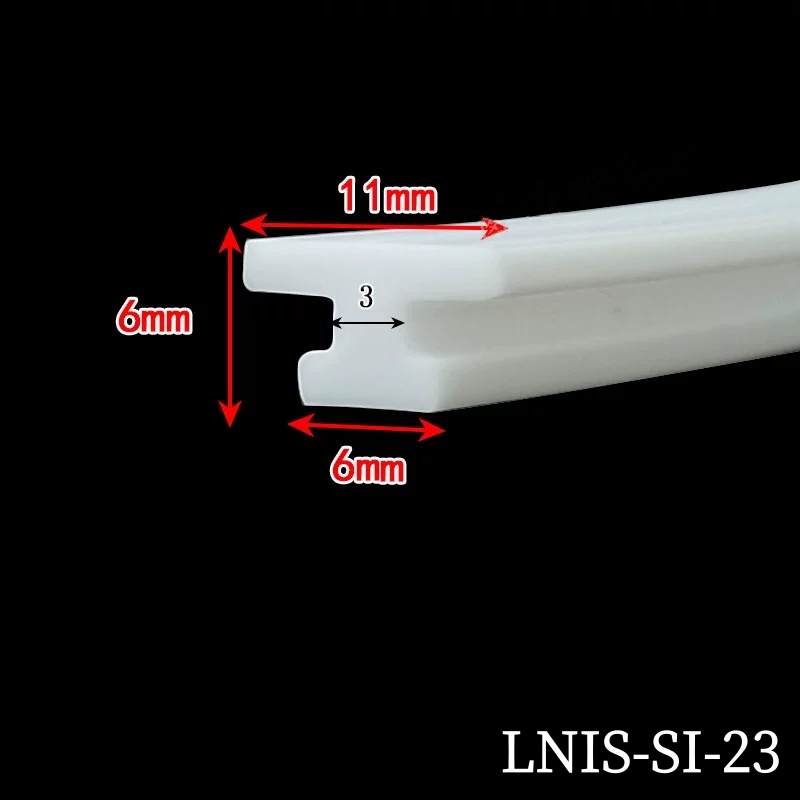

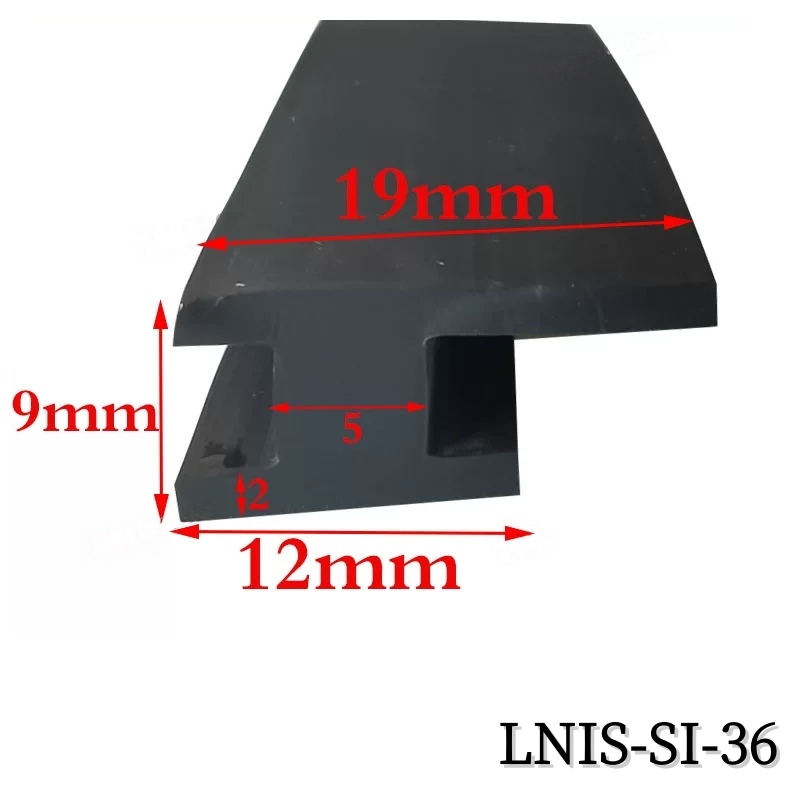

Size Chart
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
