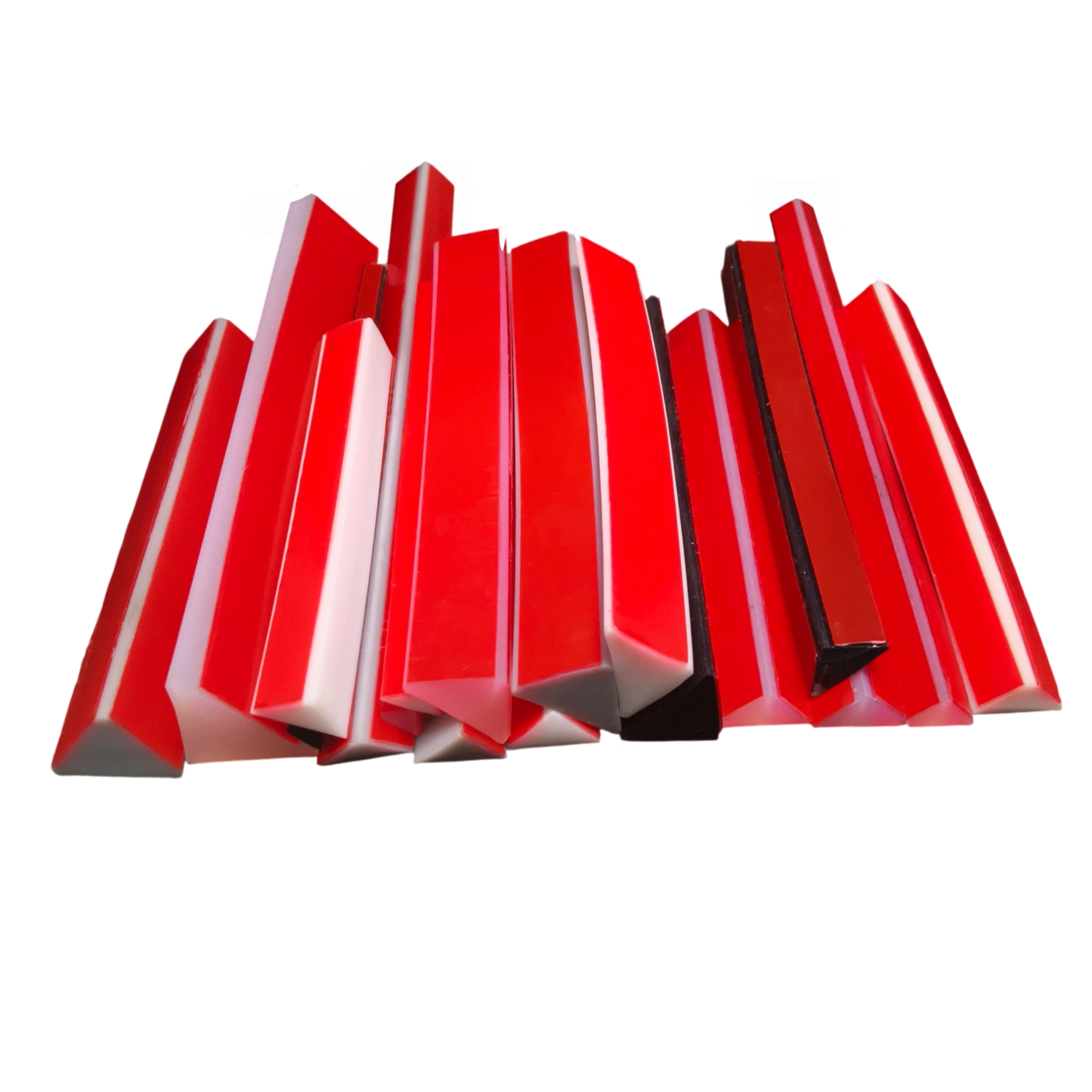

Large Right Angle Triangle Solid Silicone Seal Strip

Product Overview

SealsHub supplies large right angle triangle silicone seal strips designed for larger gap sealing, cushioning and structural support applications. The enlarged triangular profile provides increased contact area and stable compression performance for demanding installation requirements.

Made from solid silicone rubber, these profiles offer reliable elasticity, shape retention and long-term performance. Custom adhesive placement is available on selected triangle faces, including one face, two faces or all three faces, allowing flexible installation according to different mounting requirements.

Key Features

• Large right angle triangle profile for increased gap filling capability
• Two equal legs provide stable positioning and consistent contact surfaces
• Solid silicone construction offers reliable compression support and shape retention
• Suitable for larger gaps and wider contact surfaces
• Multiple adhesive placement options for different mounting requirements
• Provides cushioning and protection in demanding assemblies

Specifications

Size Selection

Select the appropriate size according to the two equal leg lengths of the right triangle profile. For example, a 5 × 5 mm profile has two equal legs of 5 mm, with a hypotenuse of approximately 7 mm.

Choose the profile size based on the installation space, contact surface and required compression level.

Application

• Industrial equipment covers and housings
• Large panels and enclosure systems
• Machinery protection and cushioning
• Glass, metal and structural component support
• Heavy-duty gap filling applications
• Equipment vibration and impact protection

Installation

Clean and dry the mounting surface before installation.

For adhesive-backed versions, remove the release liner and press the profile firmly onto the mounting surface to ensure proper bonding.

The adhesive location can be customized according to the installation direction, including one leg, two legs, the hypotenuse or multiple triangle faces. Non-adhesive versions can be installed using suitable silicone adhesive, compression fitting or other fixing methods.

Custom Options

Custom colors, lengths and profiles available upon request.

Custom dimensions, silicone hardness, adhesive types and adhesive placement on different triangle faces can be produced according to specific application requirements.

FAQ

Q: How is the size of a right angle triangle silicone seal strip defined?

A: The size is defined by the two equal leg lengths of the isosceles right triangle profile. For example, a 5 × 5 mm profile has two equal 5 mm legs, while the hypotenuse is determined by the triangle geometry.

Q: Where can adhesive backing be applied?

A: Adhesive can be applied to selected triangle faces, including one leg, two legs, the hypotenuse or all three faces, according to the installation requirements.

Q: What applications are suitable for right angle triangle silicone profiles?

A: They are suitable for corner sealing, gap filling, cushioning, component protection and compression sealing applications where a stable triangular profile is required.

Q: What is the difference between solid silicone and silicone sponge profiles?

A: Solid silicone provides higher material density, stable shape retention and consistent support, while silicone sponge profiles provide softer compression and are mainly used where greater deformation and sealing recovery are required.
