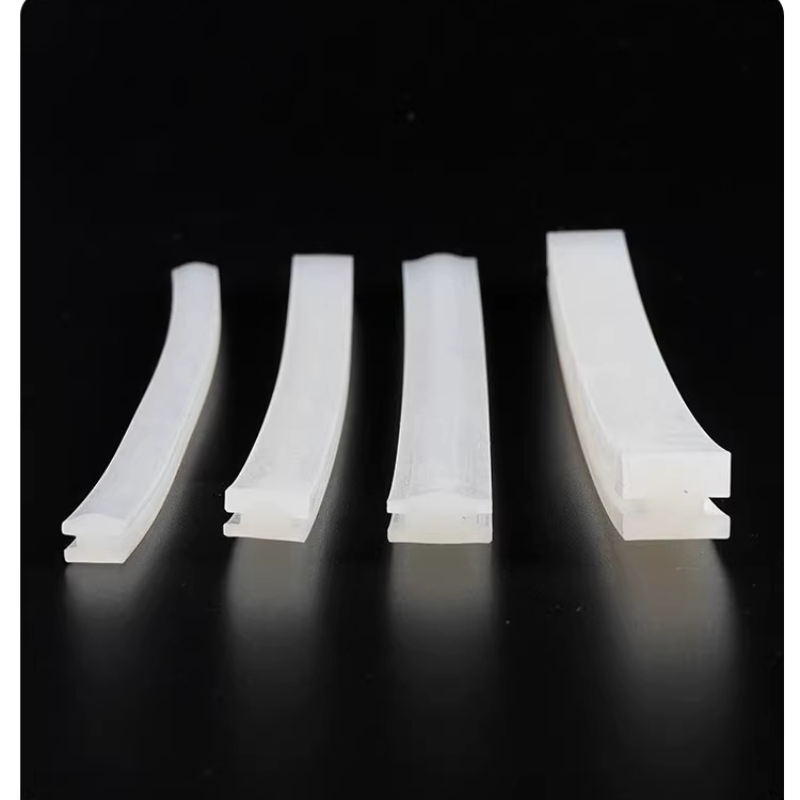

Small & Medium H-Type Silicone Rubber Connector Gasket

Product Overview

SealsHub supplies small and medium H-type silicone rubber connector gaskets designed to connect and retain compatible glass panels, plastic sheets, and other panel components.

The H-shaped cross-section features opposing panel insertion channels joined by a central connecting section. Each channel receives a panel edge, allowing the profile to connect two panels while helping maintain their alignment. The fit and sealing performance depend on the profile dimensions, panel thickness, and installation conditions.

Made from solid silicone rubber, these gaskets offer flexibility, good water resistance, and resistance to UV exposure and weathering. Silicone rubber also provides good resistance to high and low temperatures, although the applicable operating range depends on the specific compound.

Available in small and medium profile sizes, these H-type connector gaskets are suitable for compatible glass, plastic panel, cabinet, display, and industrial enclosure assemblies.

Key Features

  • H-type connecting structure: Opposing insertion channels accommodate panel edges from both sides.
  • Panel connection and retention: The central connecting section joins the two channels to help hold adjoining panels in position.
  • Small and medium profile options: Suitable for compatible panel assemblies requiring different profile dimensions.
  • Flexible silicone rubber: Provides flexibility and resilience for panel connection and sealing applications.
  • Good water resistance: Suitable for water-resistant sealing applications when the profile and installation provide an appropriate seal.
  • UV and weathering resistance: Silicone rubber generally performs well in many indoor and outdoor environments.
  • Temperature resistance: Suitable for applications requiring resistance to temperature variations, subject to the selected silicone compound.
  • Multiple color options: Translucent, transparent, black, and custom colors may be available depending on the specification.

Specifications

ItemDetails
Product TypeConnector Gasket
Profile ShapeH Type
Profile StructureOpposing Panel Insertion Channels with a Central Connecting Section
Profile Size RangeSmall / Medium
MaterialSolid Silicone Rubber
Temperature Range-40°C to +200°C, subject to compound confirmation
Hardness50–75 Shore A, customizable where available
Color OptionsTranslucent / Transparent / Black / Custom, subject to availability
InstallationPush-Fit Panel Insertion
Supply FormRoll / Coil

Application

  • Glass partition systems: Connecting compatible glass panels.
  • Architectural glazing assemblies: Joining panels in suitable framed glazing systems.
  • Plastic panel connections: Connecting compatible acrylic and polycarbonate sheets.
  • Industrial machinery enclosures: Panel joints, equipment covers, and housing assemblies.
  • Cabinets and display units: Glass or plastic panel connections in display cabinets and showcases.
  • Furniture and interior partitions: Connecting compatible panels in interior assemblies.

Length Selection Guide

Available supply lengths depend on profile dimensions, order quantity, packaging, and shipping requirements.

  • Sample lengths: 3 m and 10 m options may be available for fit checks, material evaluation, and small trial orders.
  • Bulk rolls: 50–100 m rolls may be available for applicable profile specifications, subject to production and packaging requirements.
  • Profile size considerations: Practical roll lengths may vary depending on the cross-sectional dimensions and handling requirements.
  • Custom lengths: Alternative cutting lengths and production quantities can be discussed for project orders.
  • Existing extrusion molds: Some non-standard specifications may be produced using existing molds, subject to mold compatibility and production confirmation.

Please confirm the required profile dimensions, panel thickness, color, and order quantity before ordering. For bulk purchases or special requirements, contact SealsHub to confirm availability and shipping arrangements.

Installation

  1. Confirm that both panel thicknesses are compatible with the corresponding insertion channels.
  2. Align the H-type gasket with the edges of the panels to be connected.
  3. Insert each panel into its corresponding channel using even pressure.
  4. Check that both panels are seated correctly and that the gasket remains aligned along the joint.
  5. For water-resistant sealing applications, inspect the assembled joint and verify performance under the intended installation conditions.

Custom Options

Custom colors, lengths and profiles available upon request.

FAQ

Q: What is an H-type silicone rubber connector gasket used for?

A: It connects and retains two compatible panels using opposing insertion channels. Typical applications include glass partitions, plastic panels, display cabinets, and industrial enclosures.

Q: Can this gasket connect panels of different thicknesses?

A: This depends on the specific profile design. Check the dimensions of both insertion channels against the intended panel thicknesses before ordering.

Q: Is silicone rubber suitable for water-resistant sealing?

A: Yes. Silicone rubber generally has good water resistance. The assembled joint's sealing performance depends on profile geometry, panel fit, and installation conditions.

Q: Can these gaskets be used outdoors?

A: Silicone rubber generally offers good UV and weathering resistance, making it suitable for many outdoor applications. Confirm that the selected compound meets the intended environmental requirements.

Q: Are samples and bulk rolls available?

A: Sample lengths of 3 m and 10 m and bulk rolls of 50–100 m may be available, depending on the profile size and order requirements. Please confirm availability before ordering.

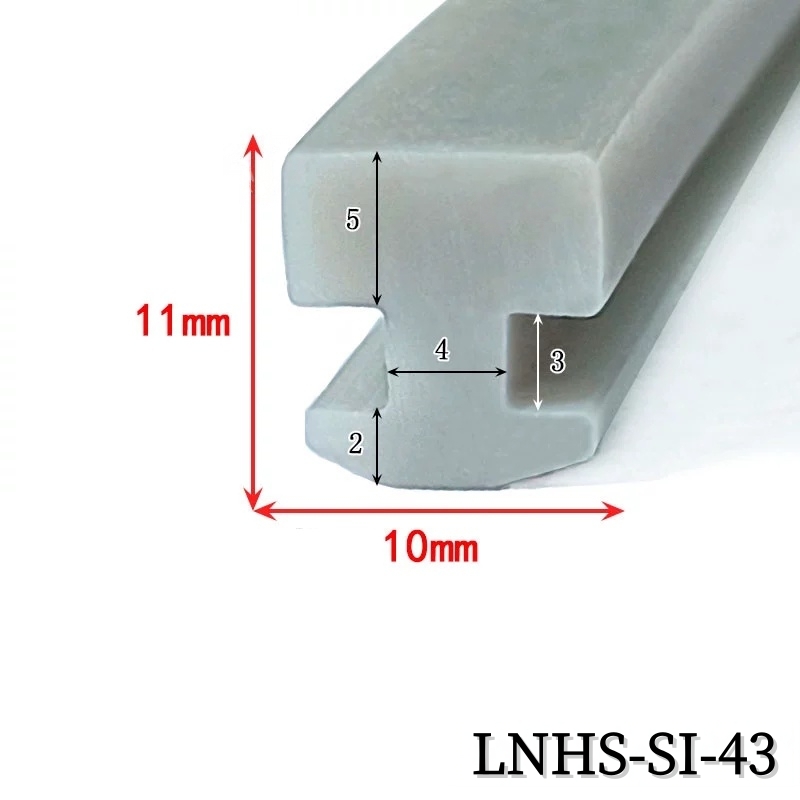

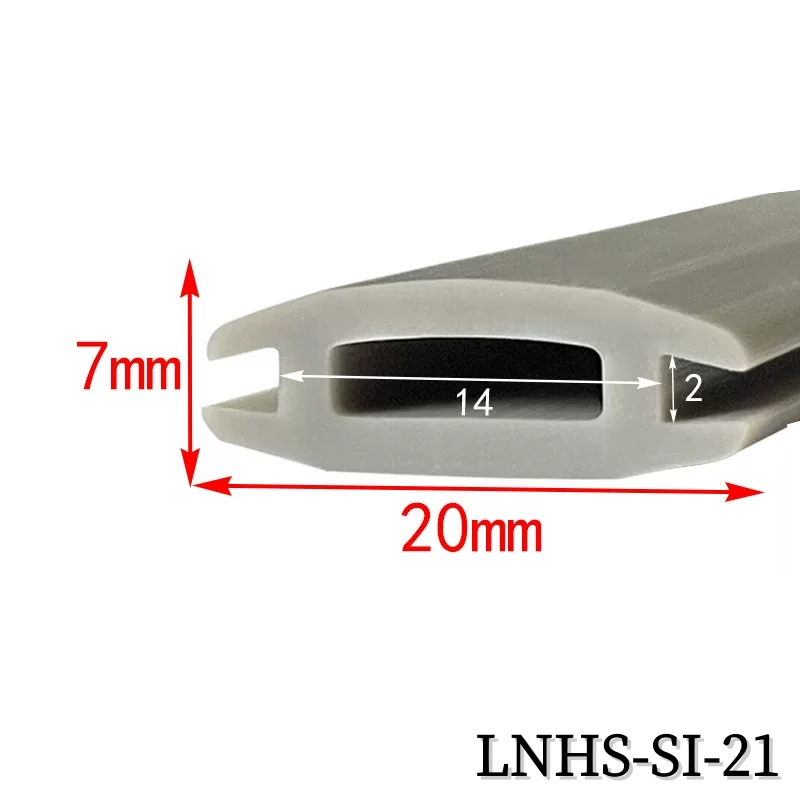

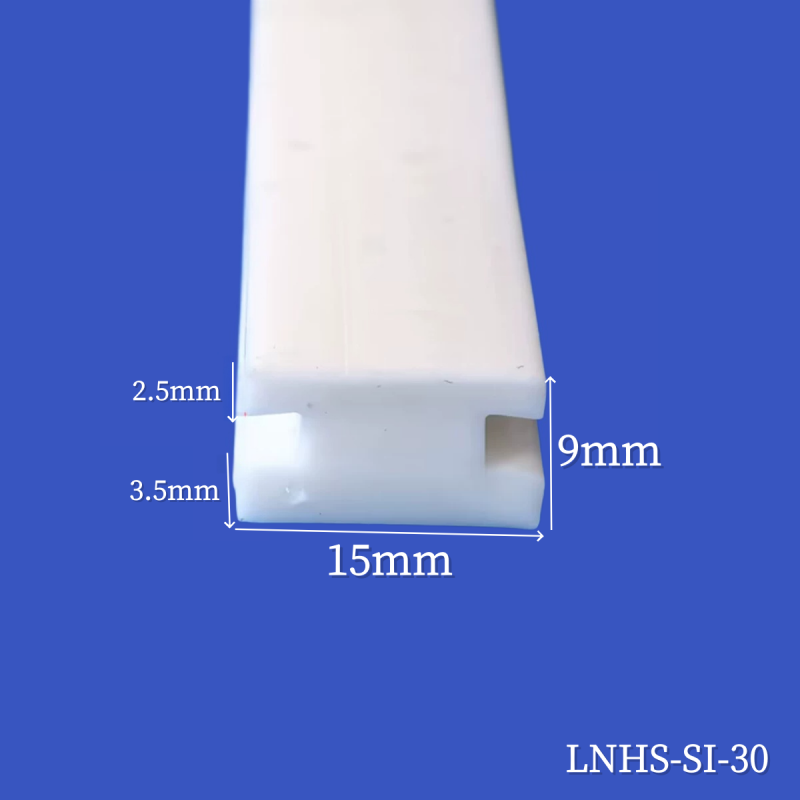

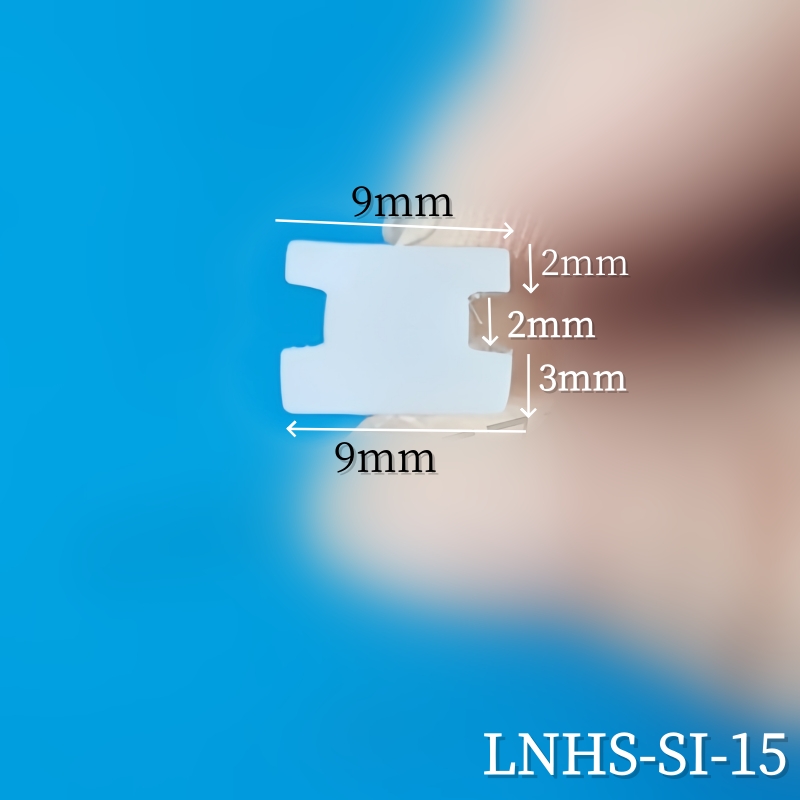

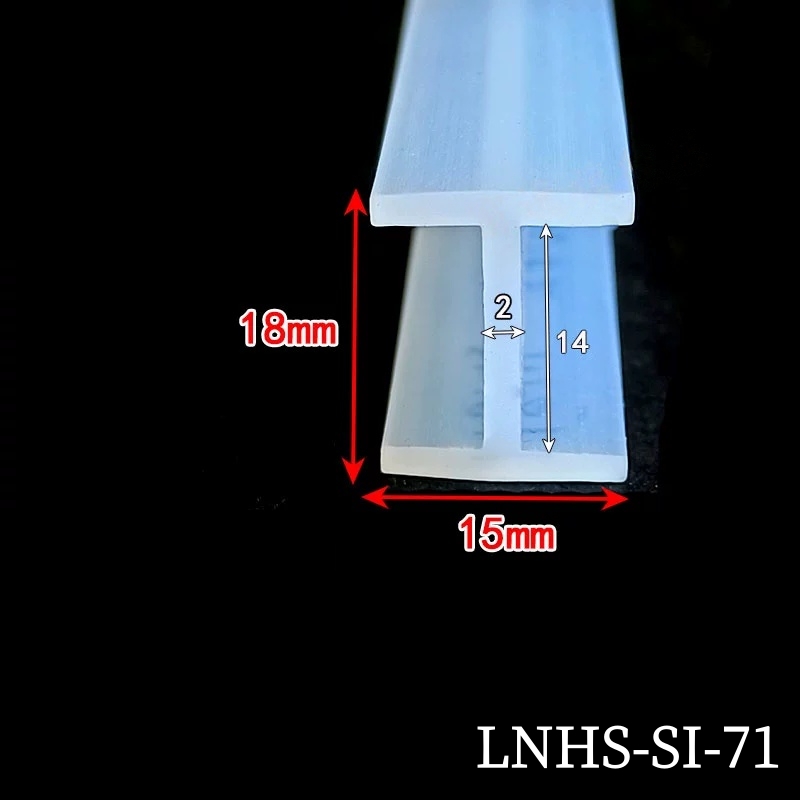

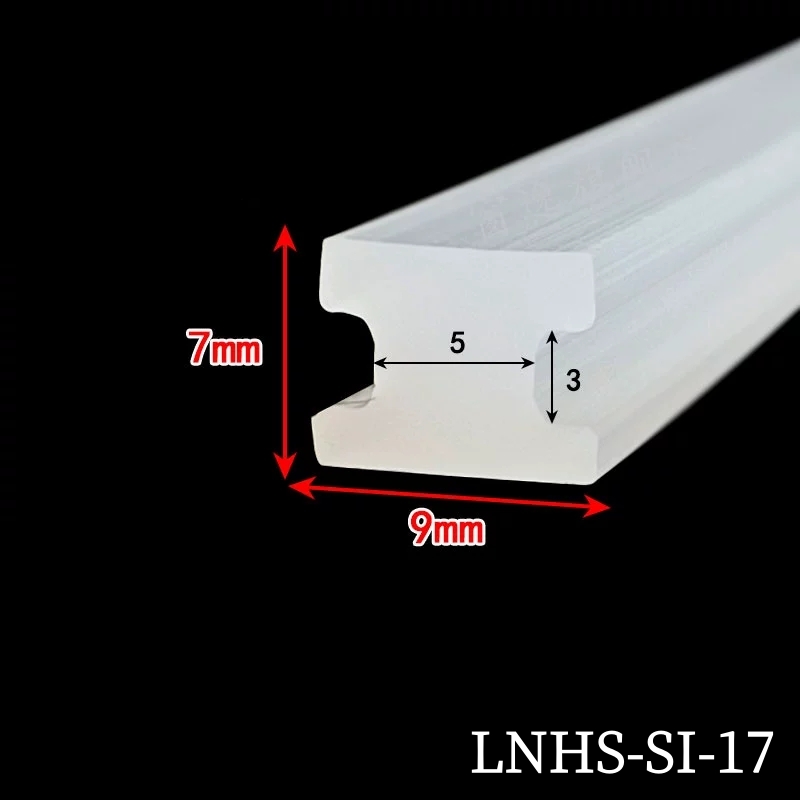

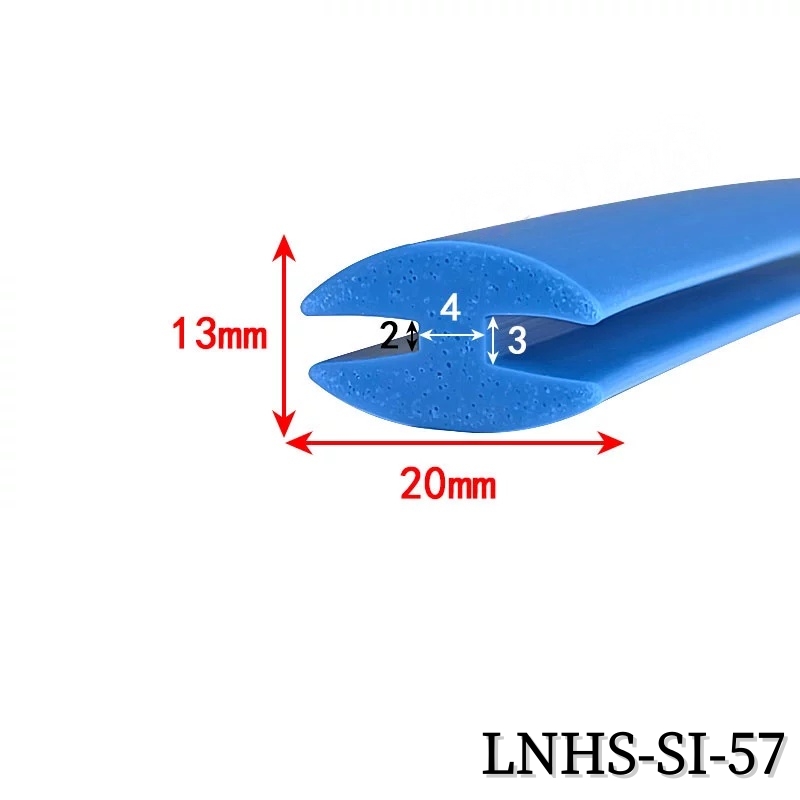

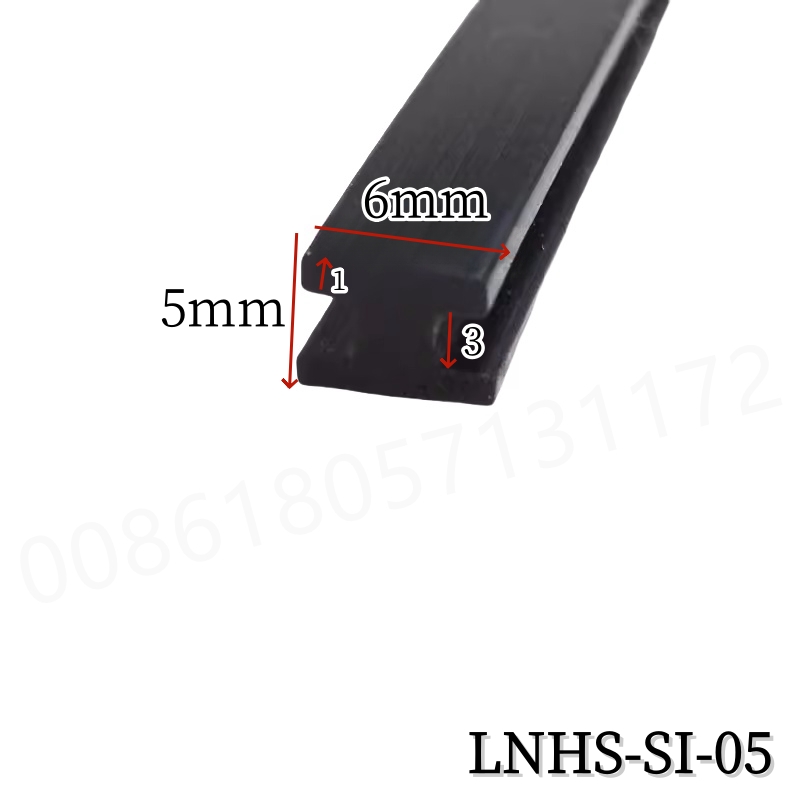

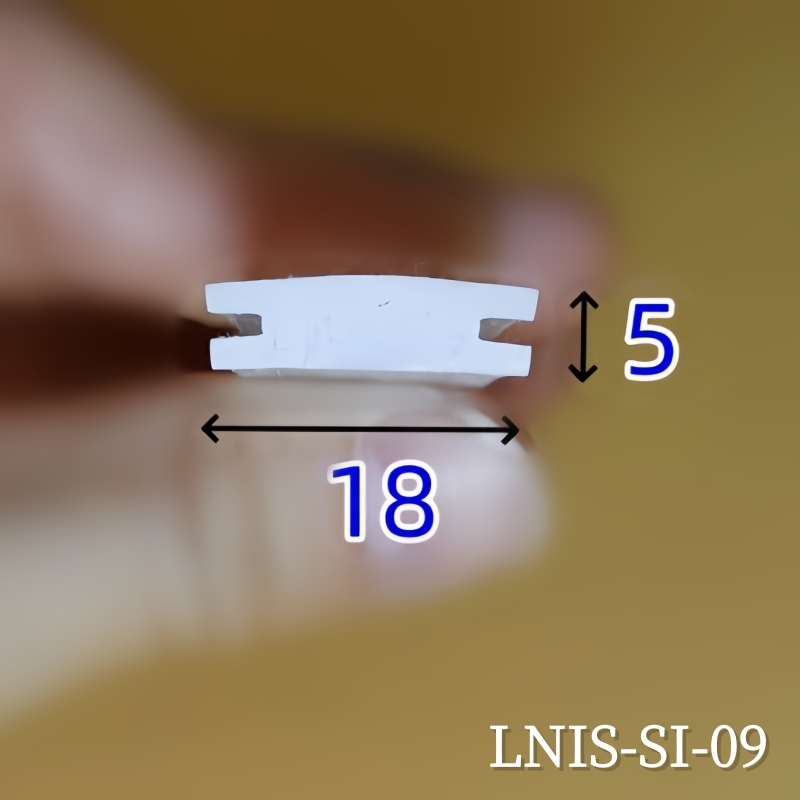

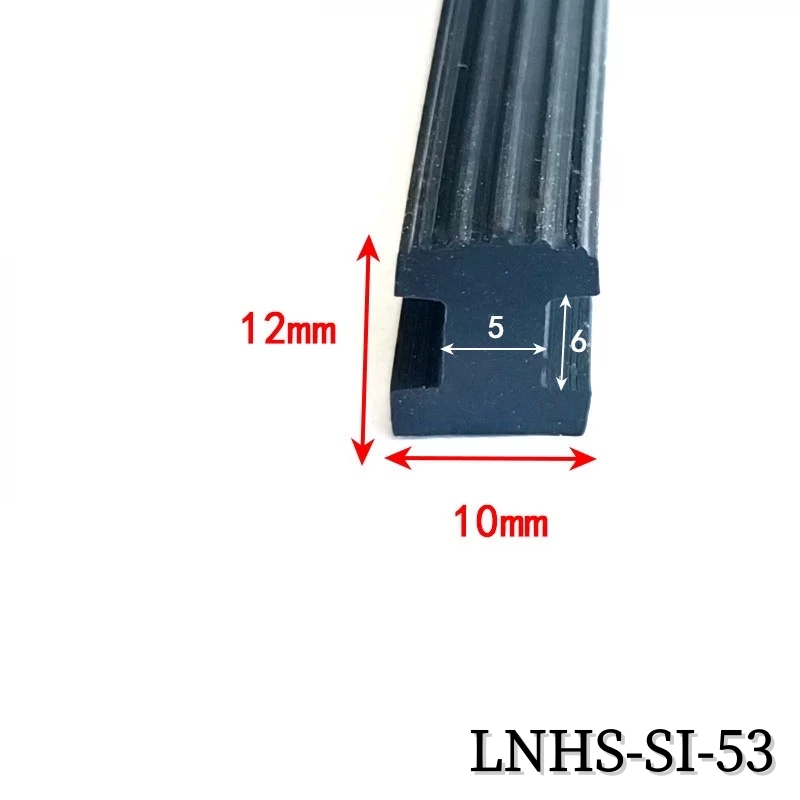

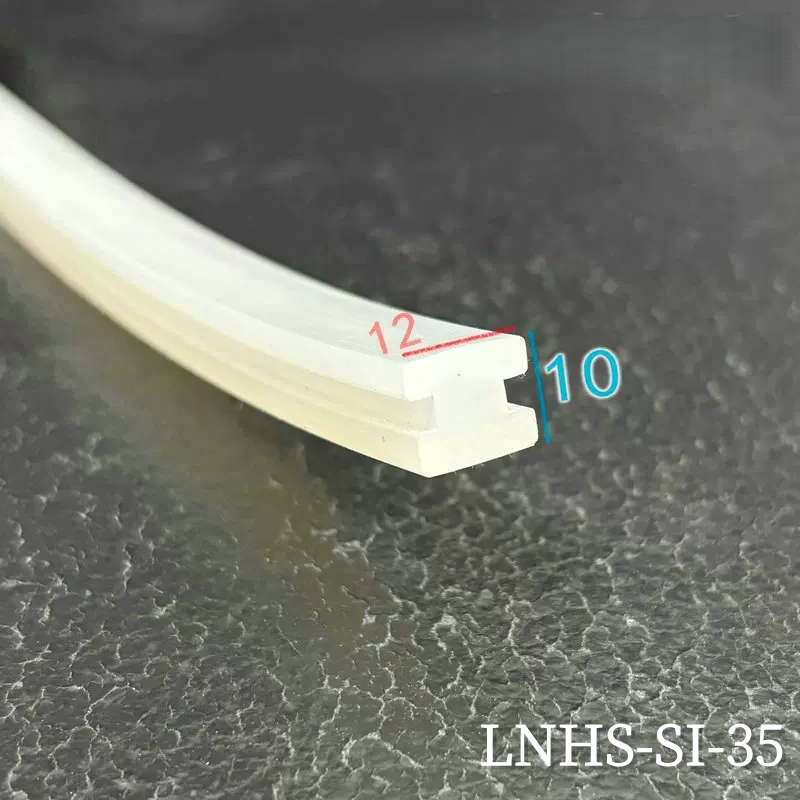

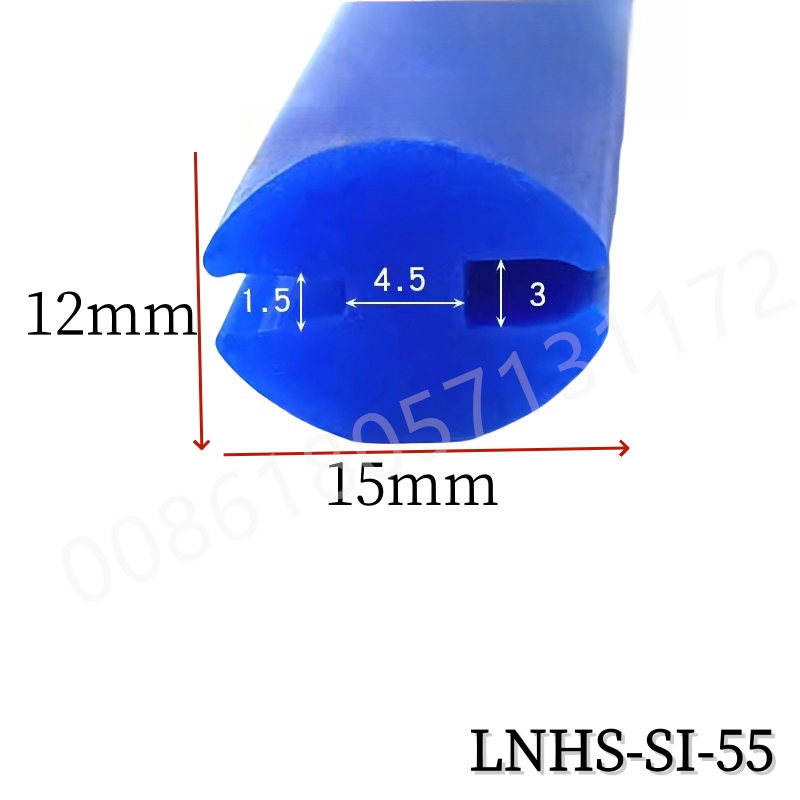

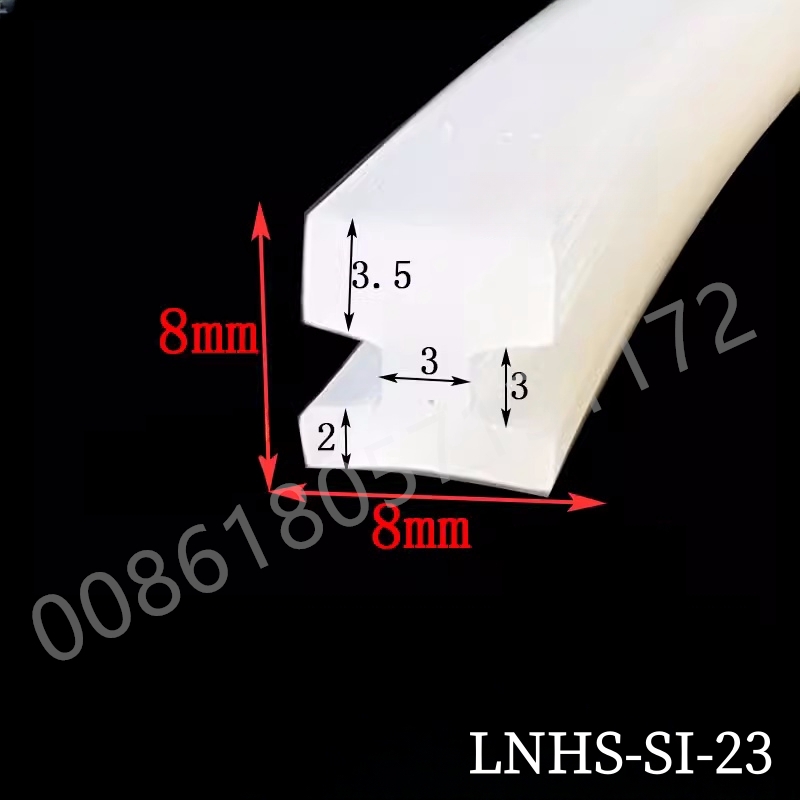

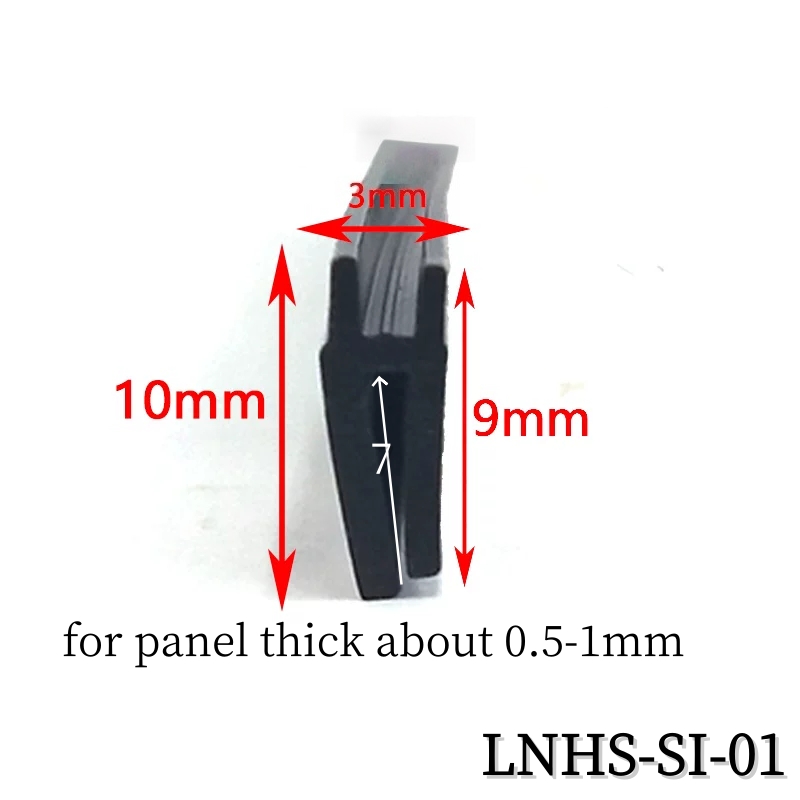

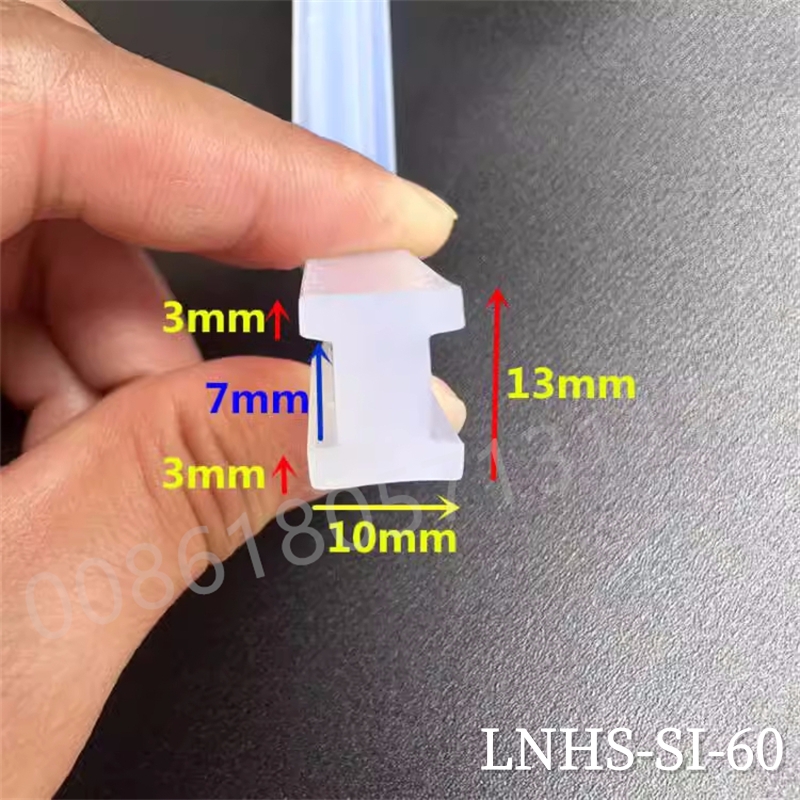

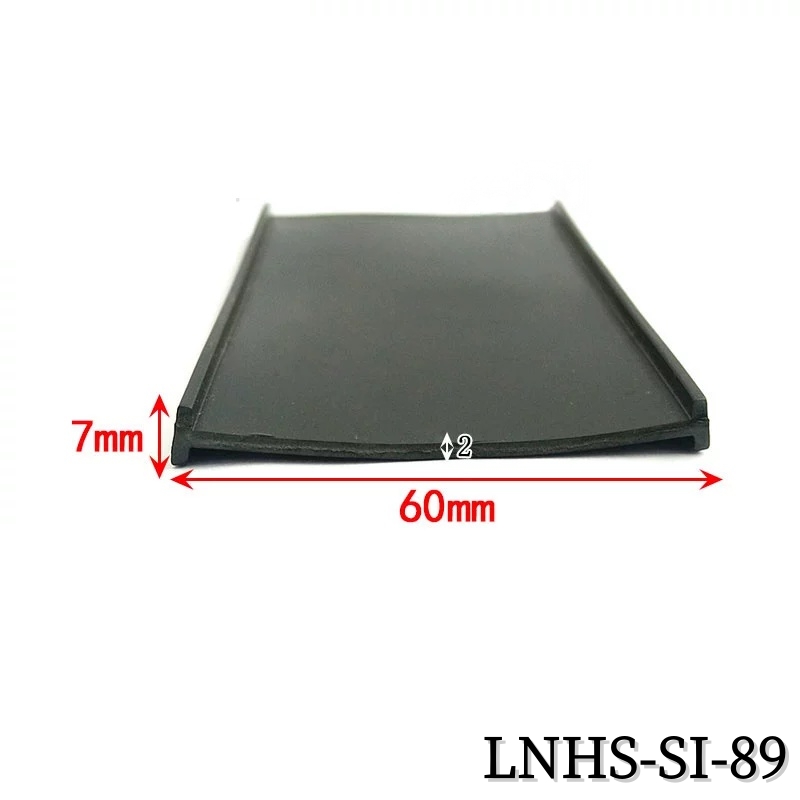

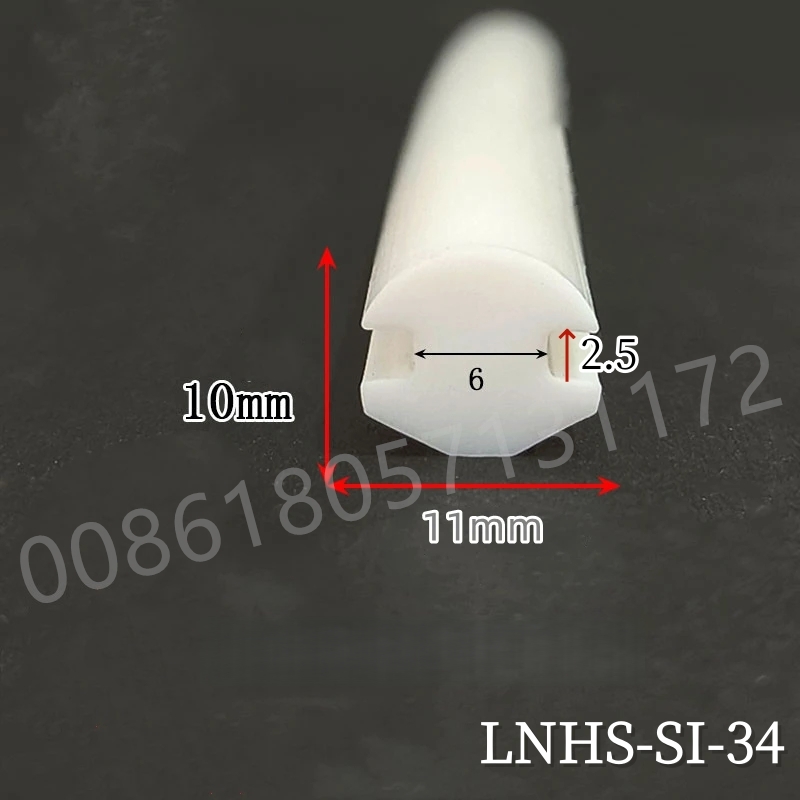

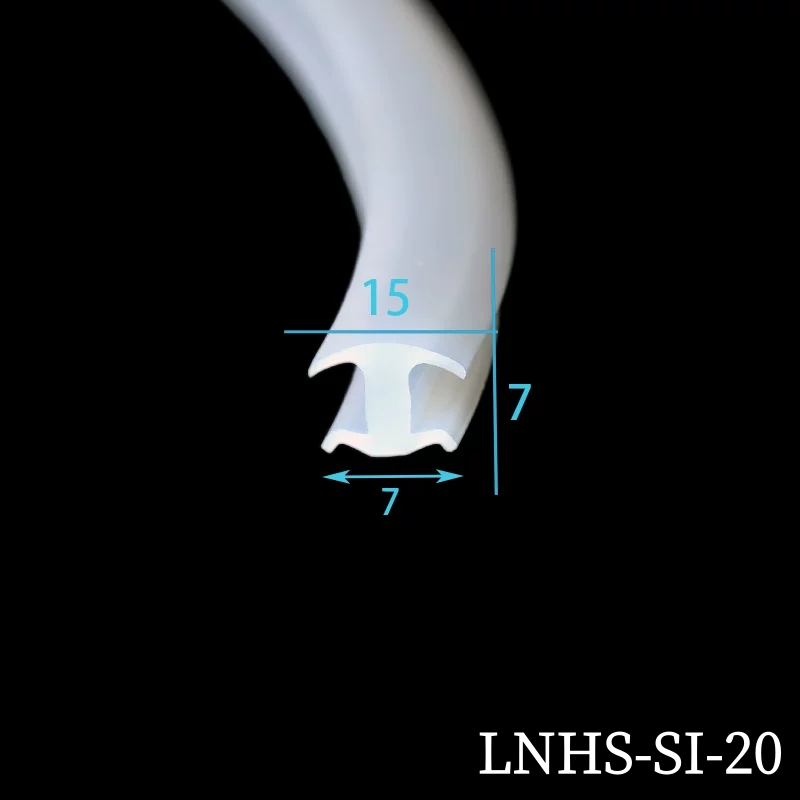

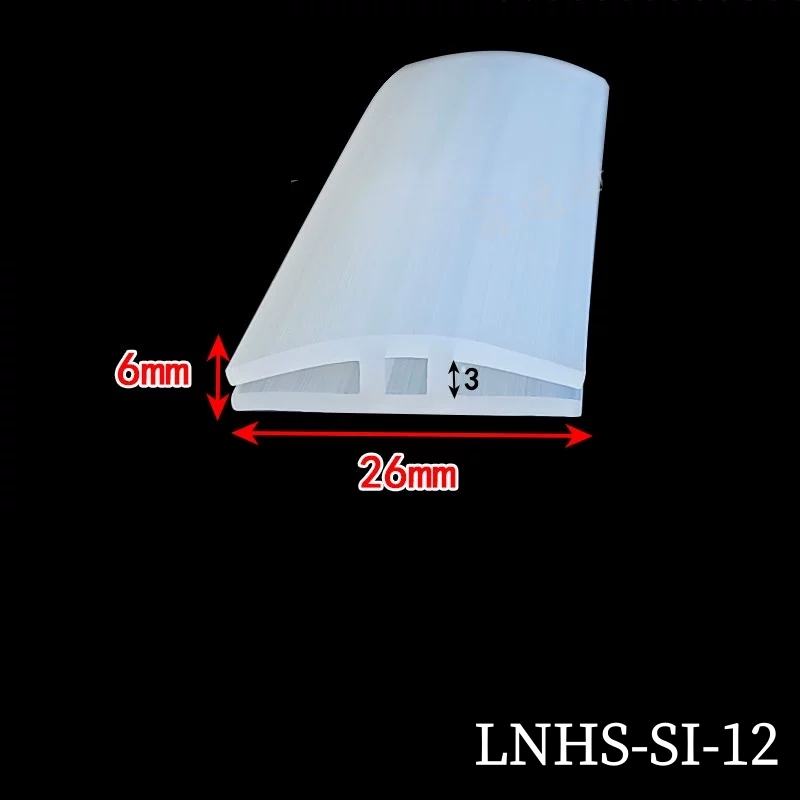

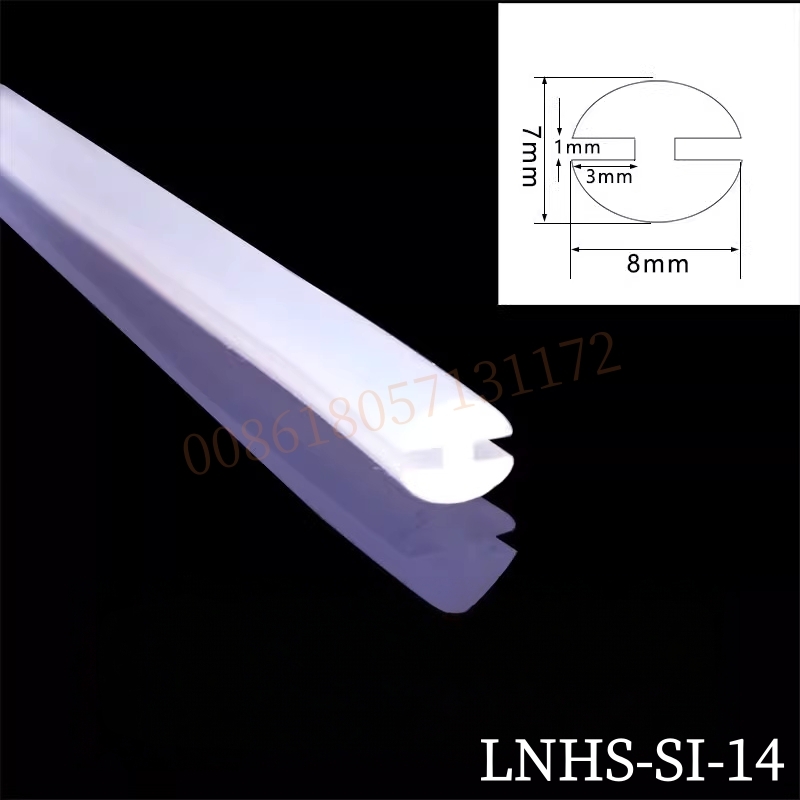

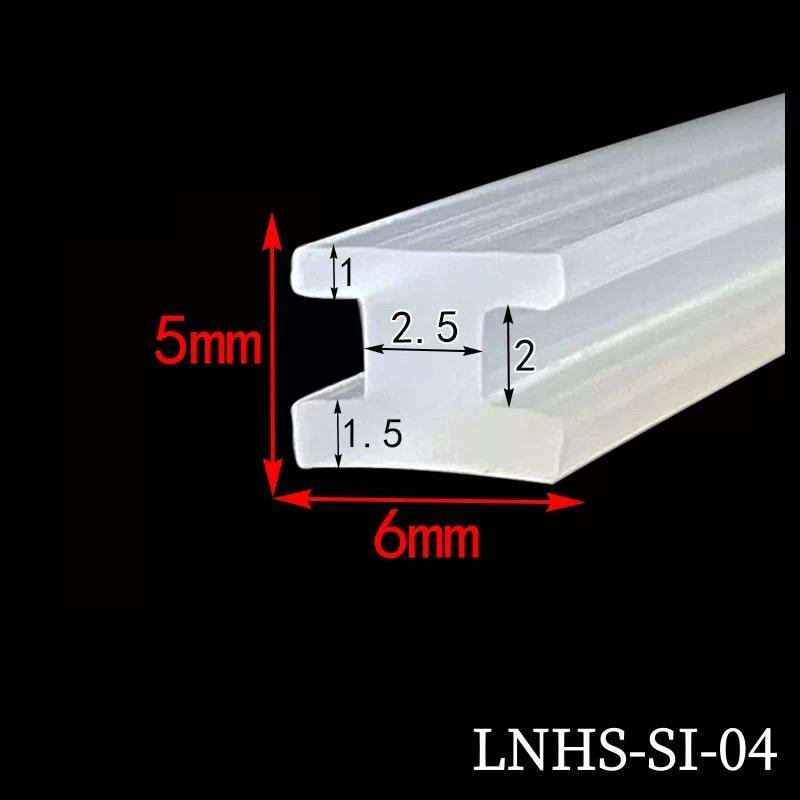

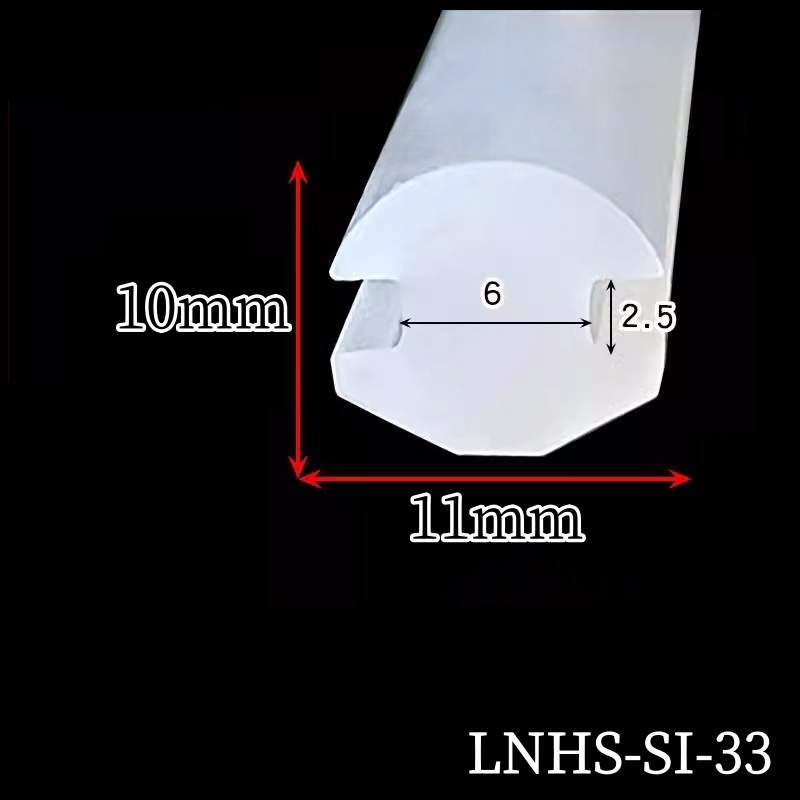

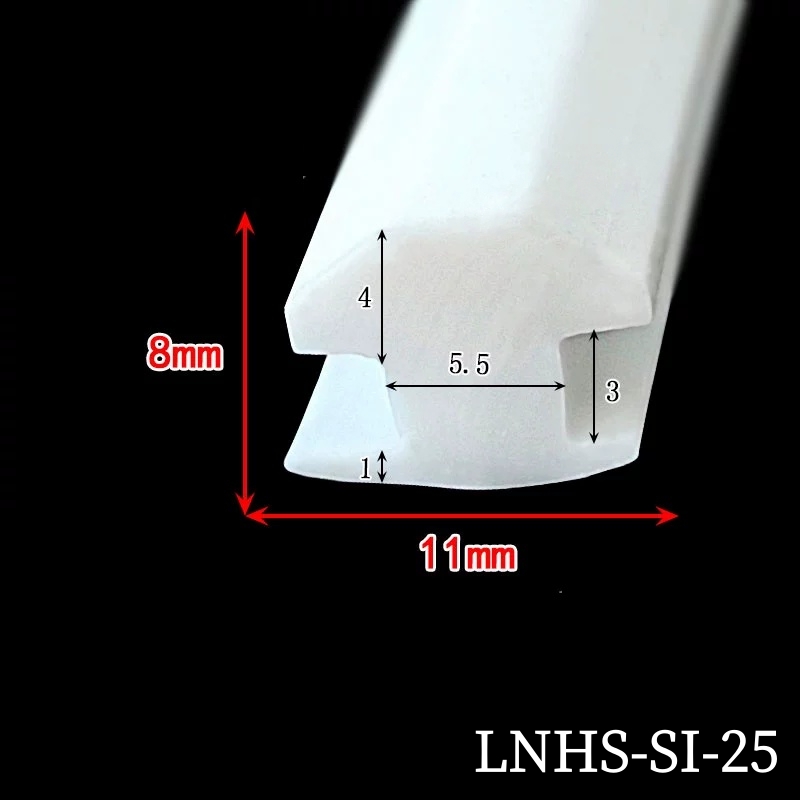

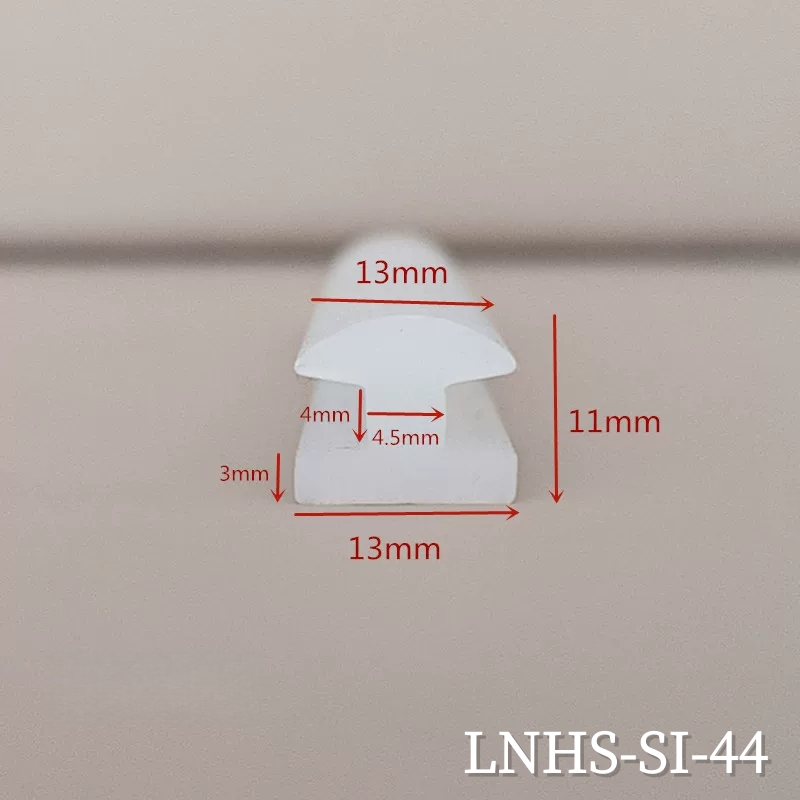

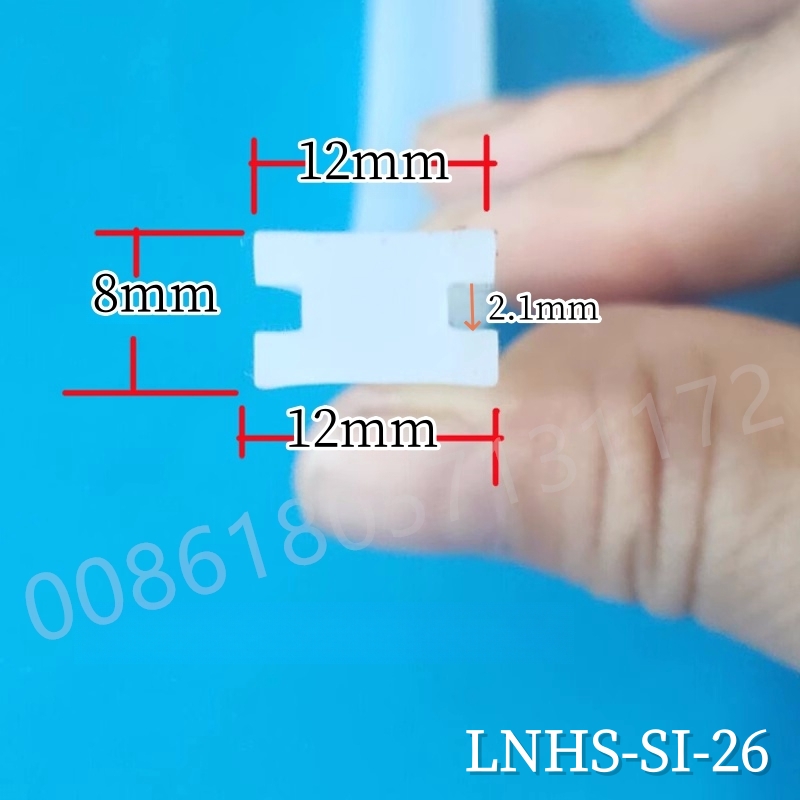

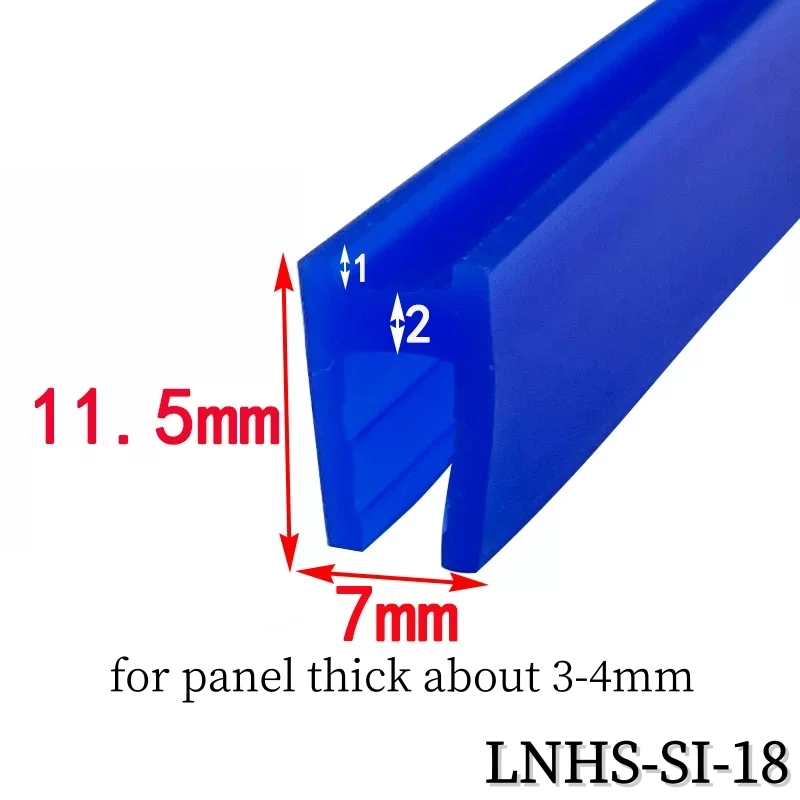

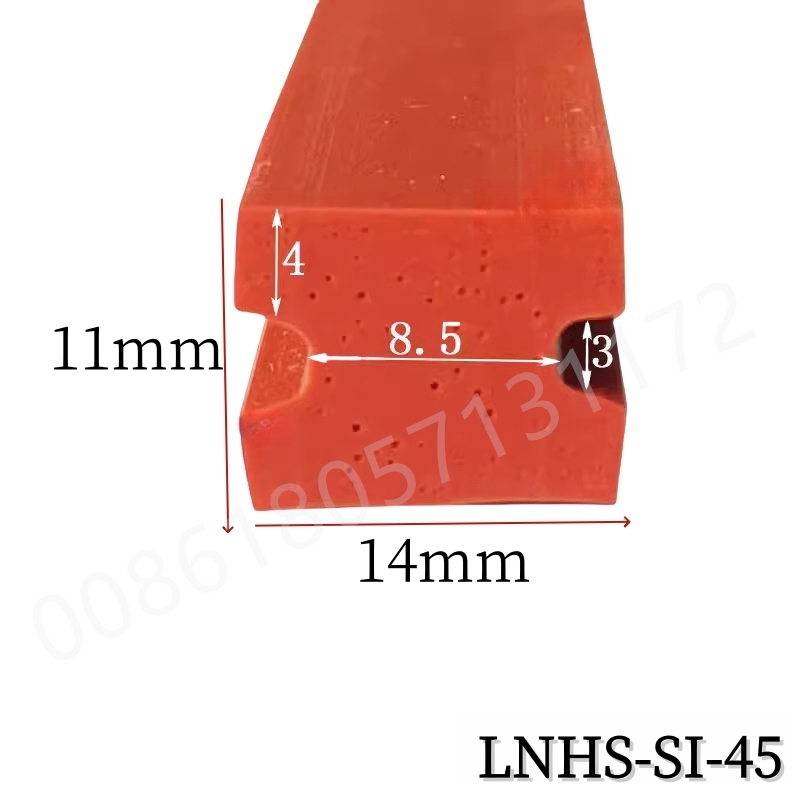

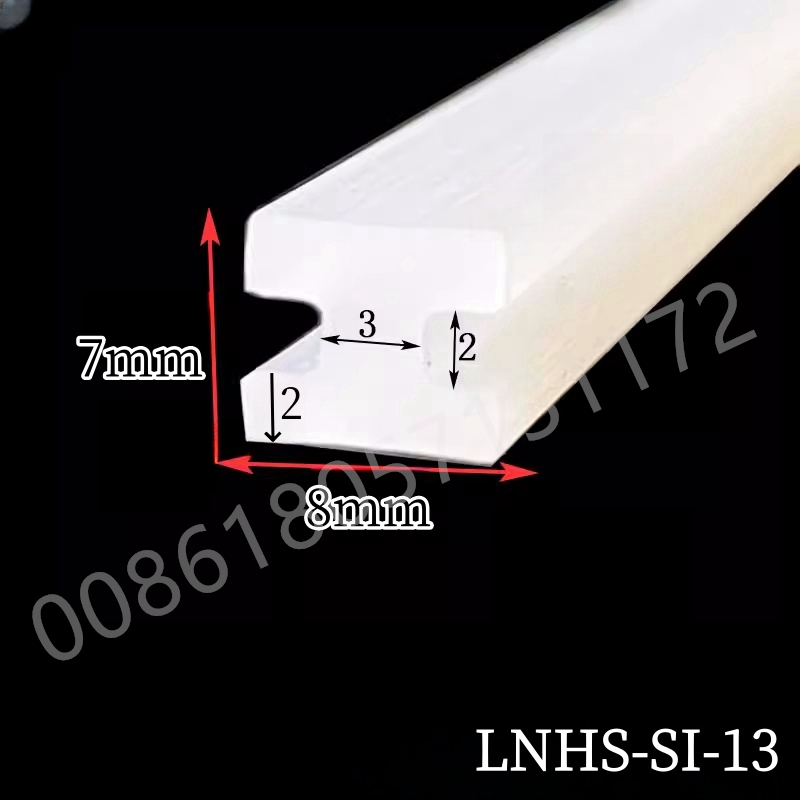

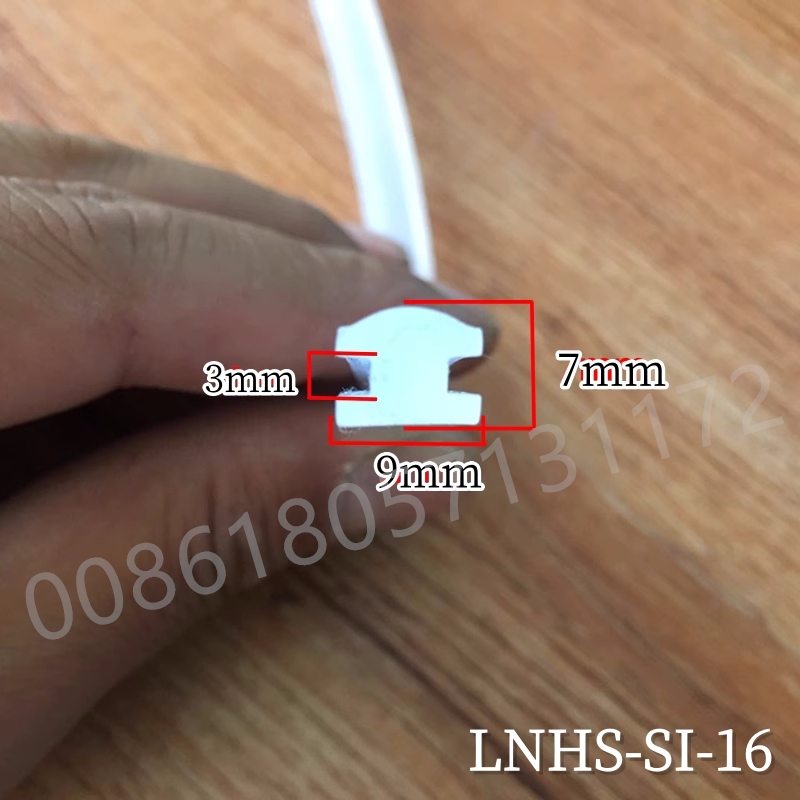

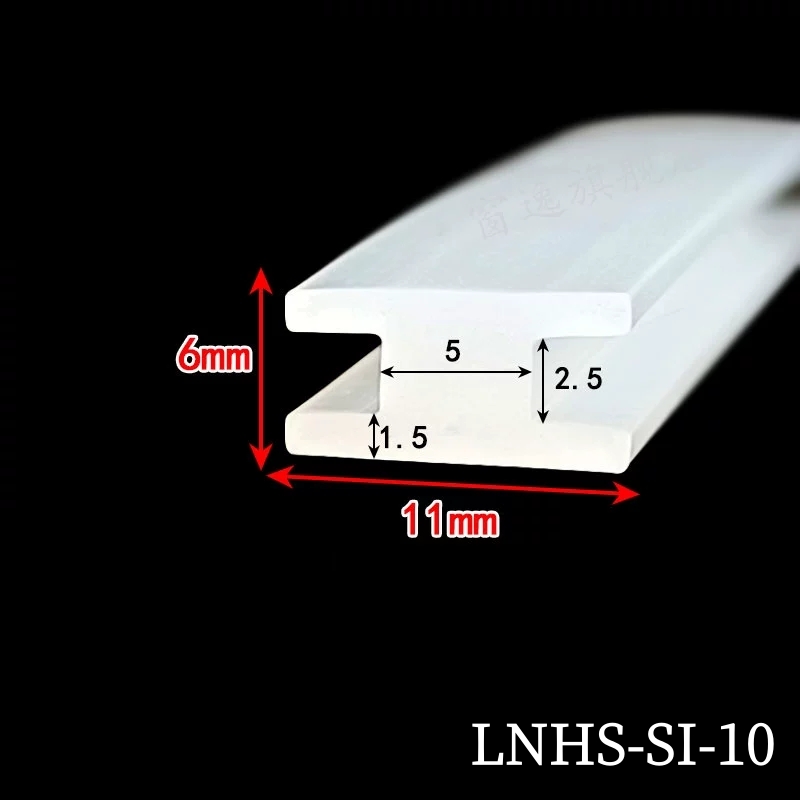

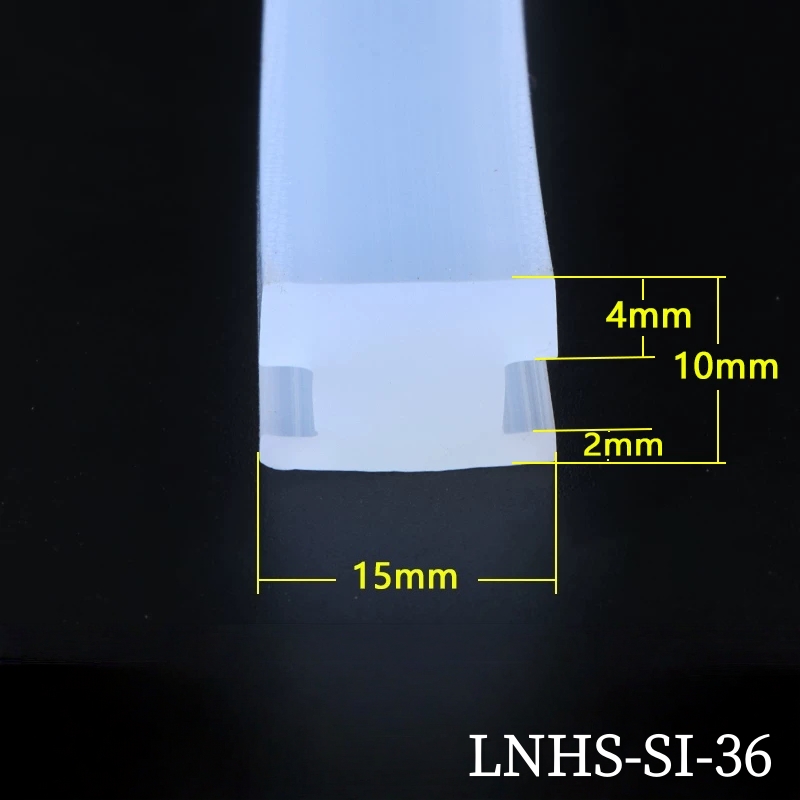

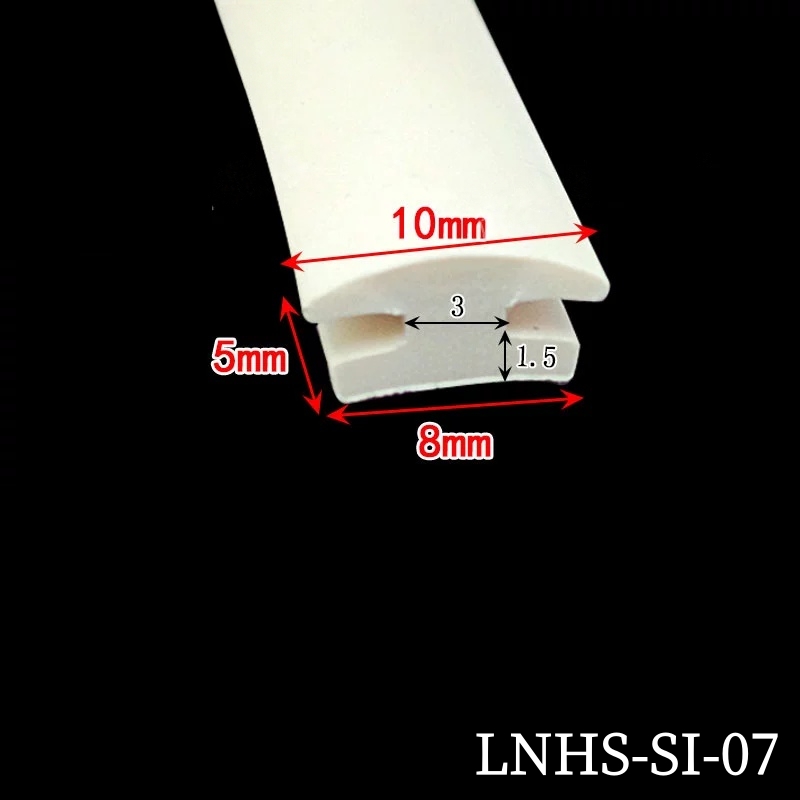

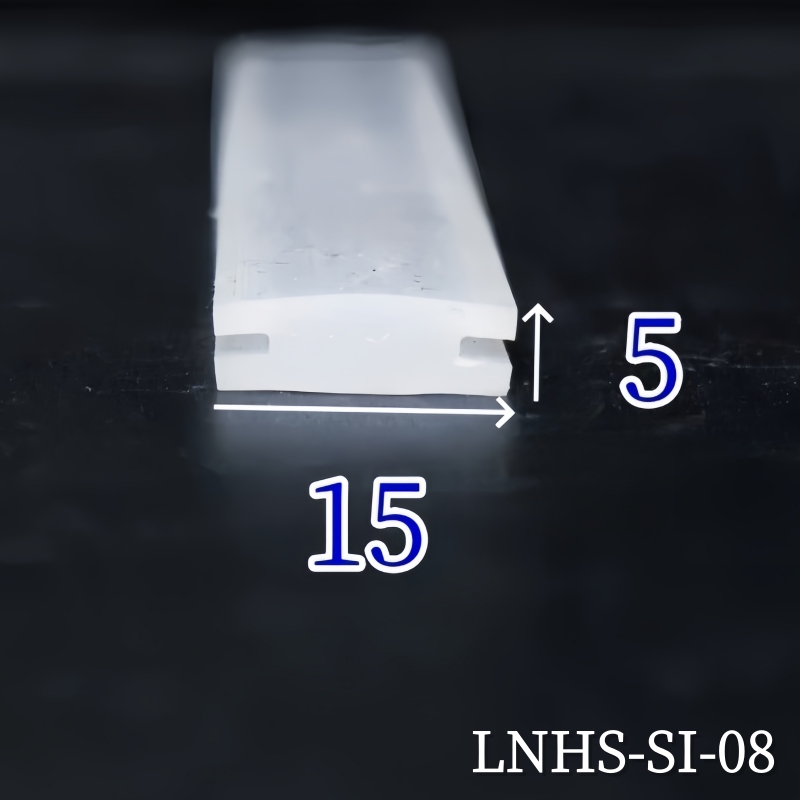

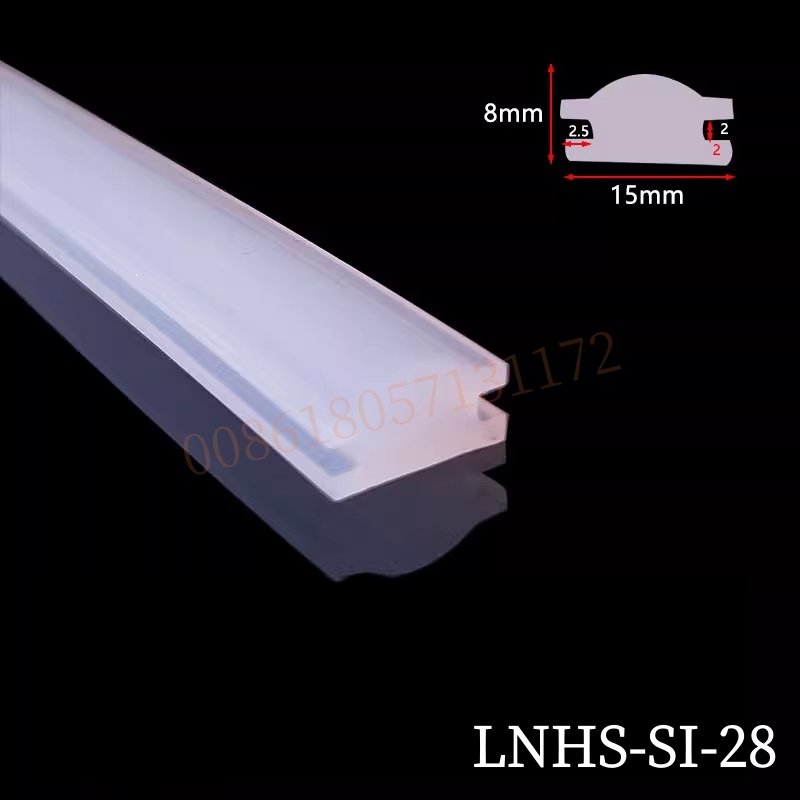

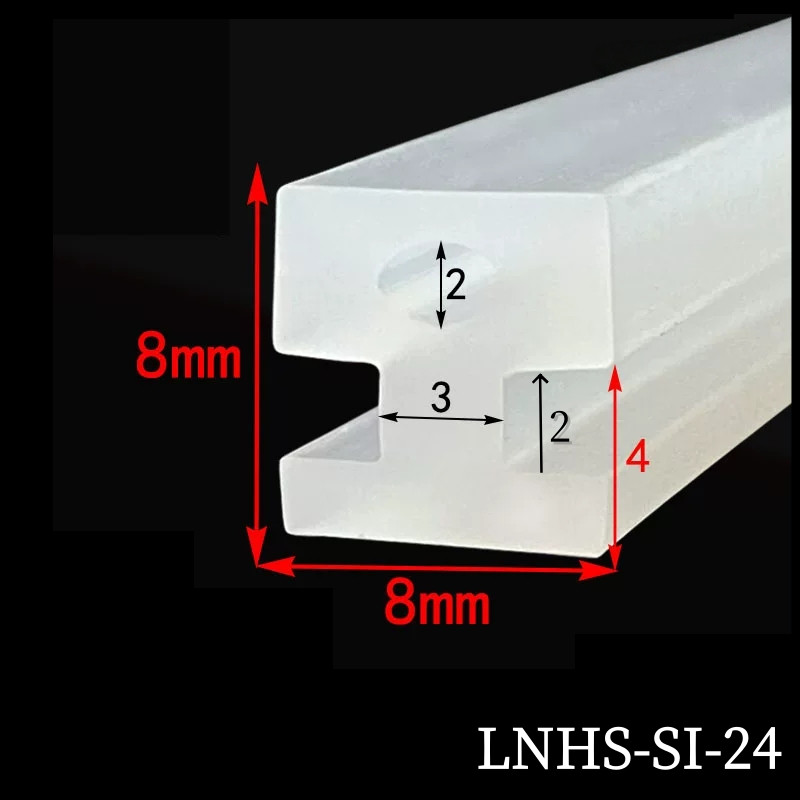

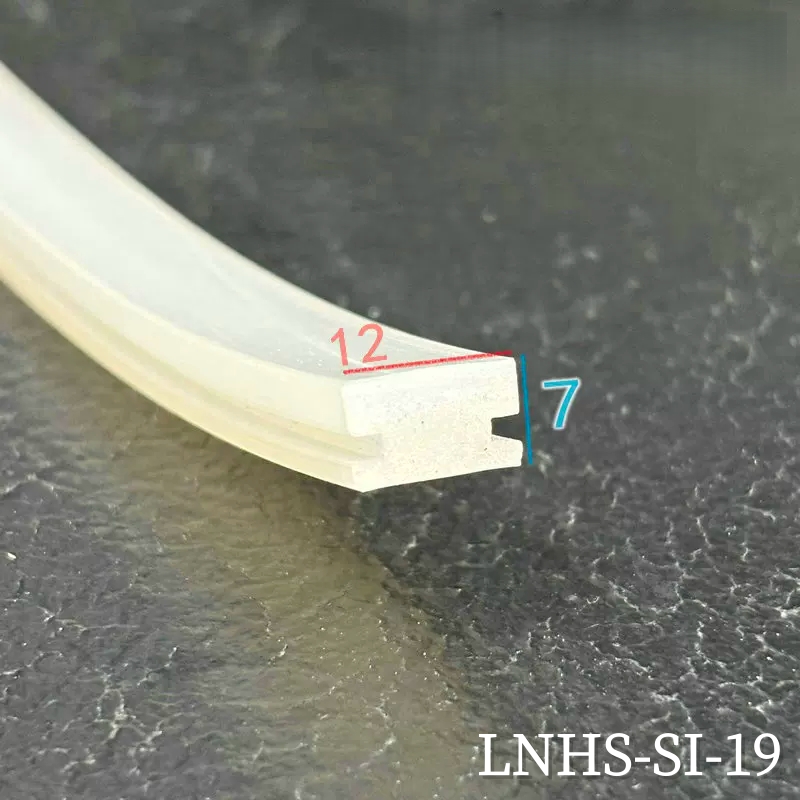

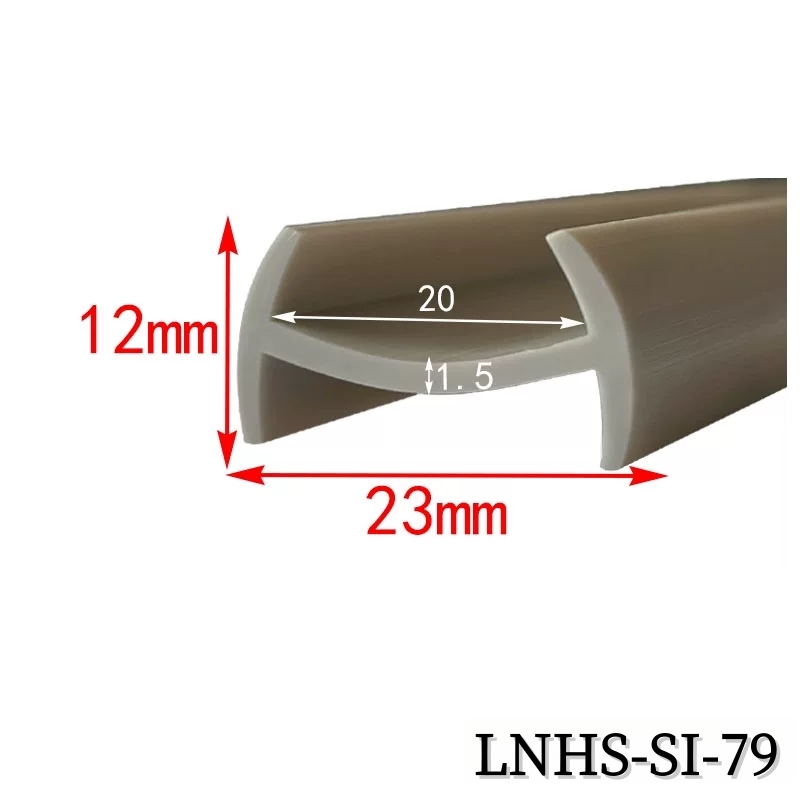

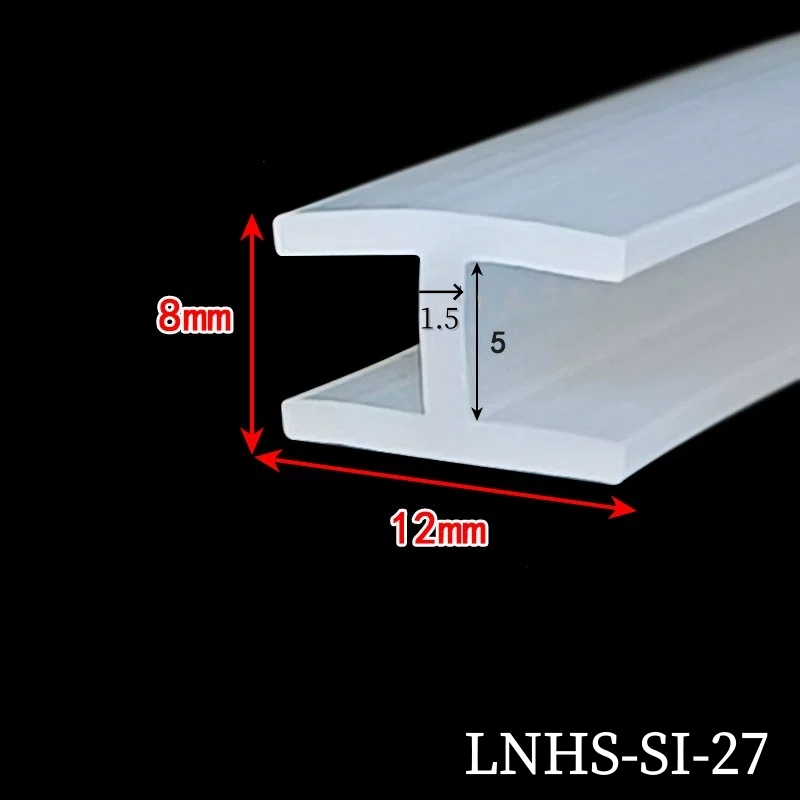

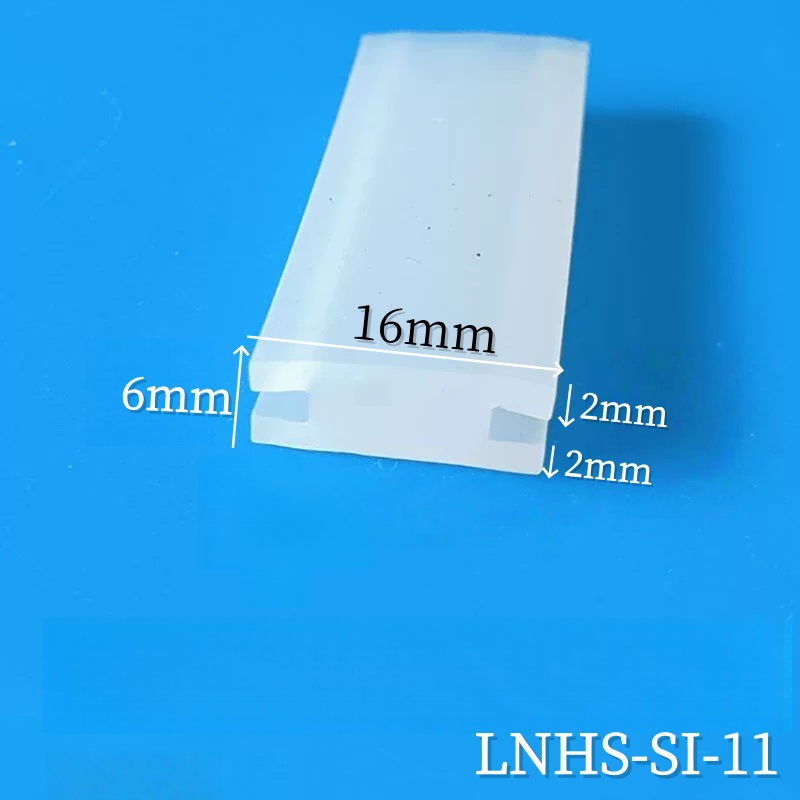

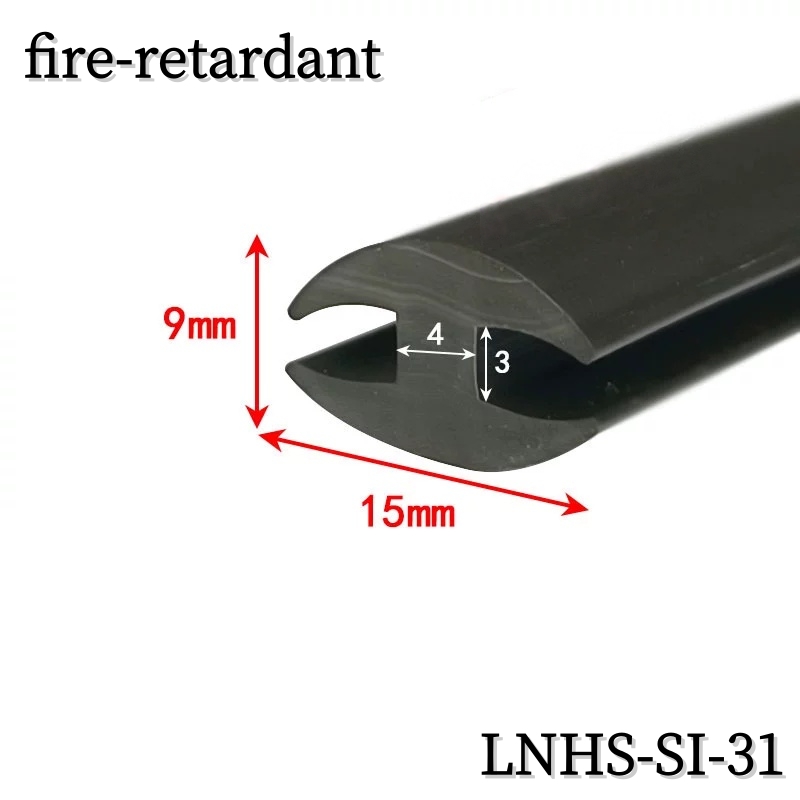

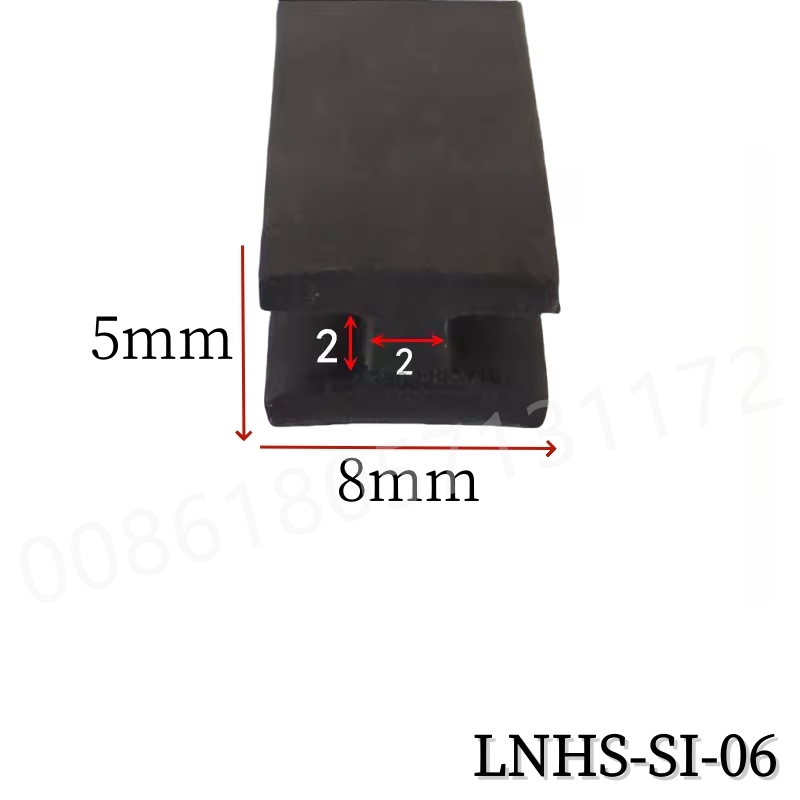

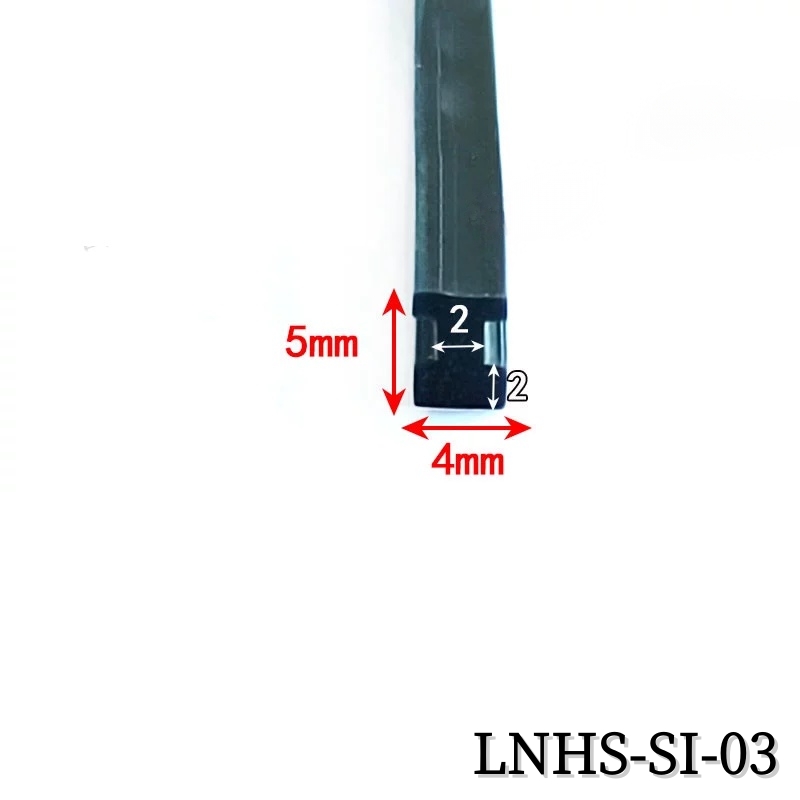

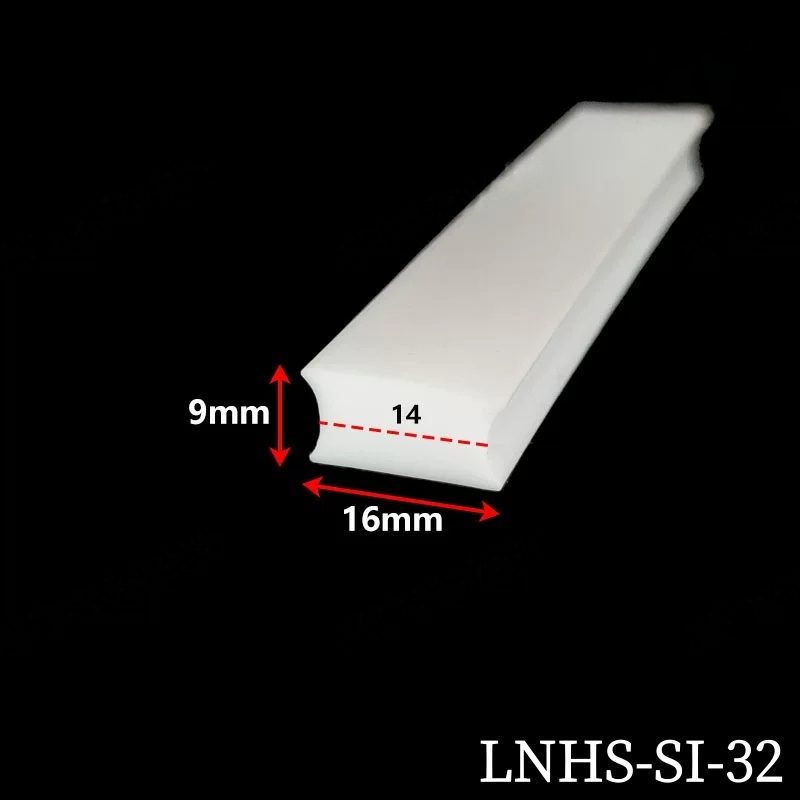

Size Chart

Why Choose H-Type Silicone Seal?

Compared with U-type or flat seals, H-type silicone gaskets provide:

  • Stronger structural connection between panels
  • Dual-side sealing performance
  • Better stability under vibration
  • Longer service life
  • Wide compatibility across applications

Installation Method

The H-type seal strip is installed by inserting both sides of the profile into corresponding grooves on two panels. The flexible silicone structure ensures tight engagement and stable sealing without adhesives or tools.
