4 mm, 5 mm Base Width Insert Type Brush Seal for Doors & Windows

Product Overview

SealsHub supplies 4 mm and 5 mm base width insert-type brush seals for doors, windows, sliding systems and other applications requiring flexible gap sealing.
Designed with a narrow carrier base for insertion into compatible grooves or profile channels, these brush seals provide continuous contact between adjoining surfaces while allowing smooth movement of sliding doors, windows and panels.
Available in multiple overall heights, colors and fiber treatments, the range includes standard brush seals for general sealing requirements and siliconized (water-repellent) brush seals for smoother operation and improved moisture repellency.
Unlike self-adhesive brush weatherstrips, insert-type brush seals fit directly into dedicated grooves without adhesive backing, making them suitable for original profile installations and replacement applications.

Key Features

  • 4 mm and 5 mm Base Widths: Designed for compatible grooves and channels in different door and window systems.
  • Insert-Type Installation: Fits directly into a dedicated groove without adhesive backing.
  • Flexible Brush Fibers: Maintain contact with the opposing surface while allowing smooth sliding movement.
  • Multiple Overall Heights: Accommodate different sealing gaps and profile requirements.
  • Standard and Siliconized Options: Standard fibers suit general applications, while siliconized fibers provide smoother movement and water-repellent properties.
  • Nylon / PP Brush Material: Available in nylon or polypropylene, depending on specification.
  • Black and Gray Colors: Available for selected sizes and treatments.
  • Cut Lengths and Bulk Rolls: Supply formats vary by specification.

Specifications

ItemDetails
Product TypeInsert-Type Brush Seal
Base Width4 mm / 5 mm
Overall Height3–20 mm, depending on specification
Size DefinitionW x H
Brush MaterialNylon / PP
Fiber TreatmentStandard / Siliconized (Water-Repellent)
ColorBlack / Gray, depending on specification
InstallationInsert into Compatible Groove / Channel

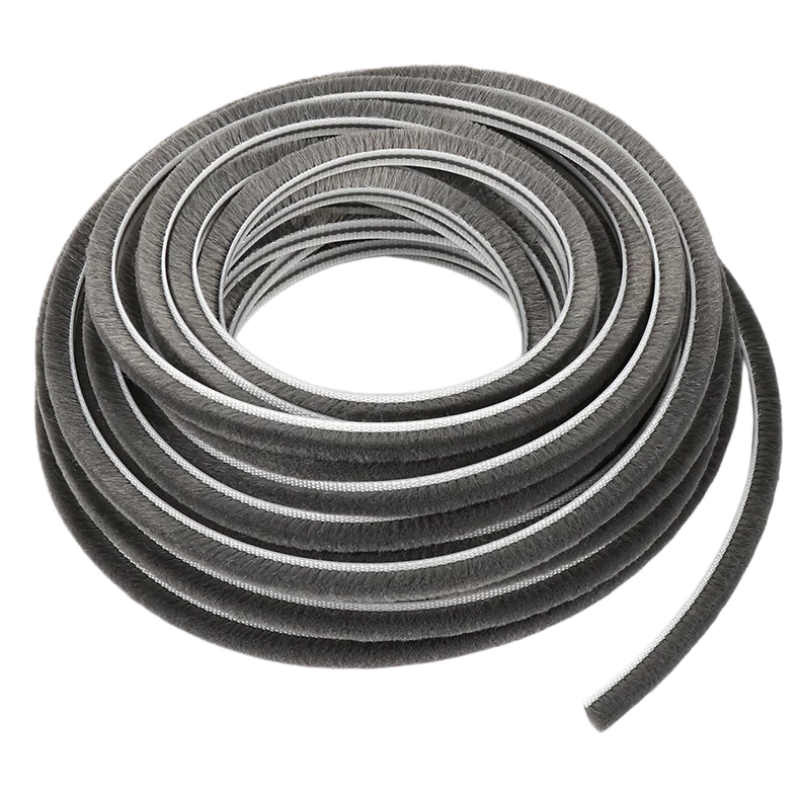

Supply FormRoll

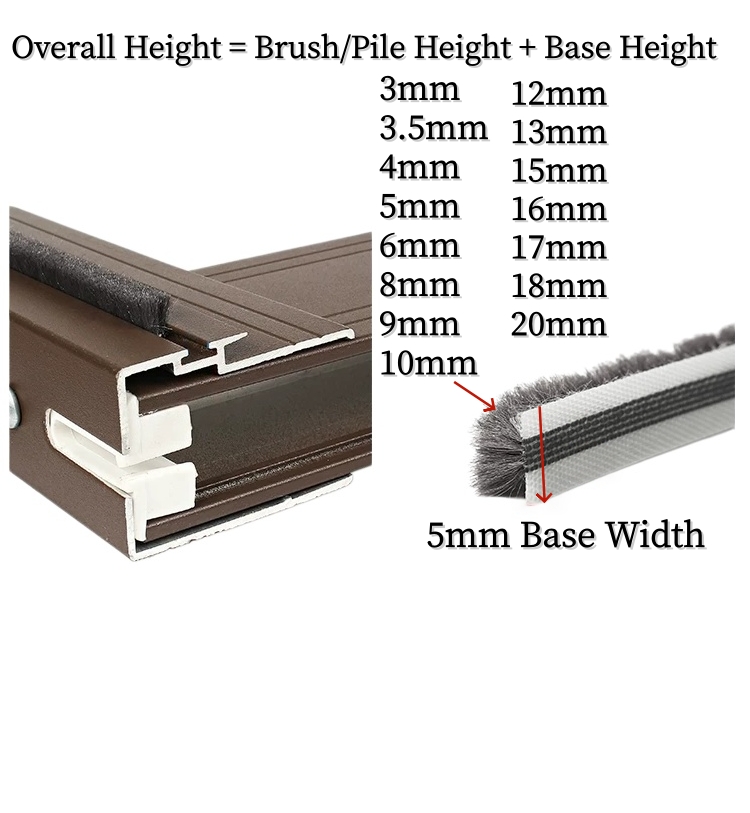

Size Definition

Size (W × H):

  • W = carrier width
  • H = overall height, including the base.

Example:

5 × 10 mm

means:

  • 5 mm = Base Width
  • 10 mm = Overall Height (including the base)

Please confirm the existing groove size before selecting a replacement brush seal.

Available Sizes & Roll Options

Available sizes, colors, treatments and roll lengths vary depending on specification. Please refer to the tables below for current available combinations.

Standard Brush Seal – Available Options

Size (W × H)ColorTreatmentLength
5 × 3 mmGrayStandard10 m Cut Length
5 × 5 mmGrayStandard10 m Cut Length
5 × 9 mmGrayStandard10 m Cut Length
5 × 10 mmGrayStandard10 m Cut Length
5 × 12 mmGrayStandard10 m Cut Length
5 × 13 mmBlackStandard10 m Cut Length
5 × 16 mmGrayStandard10 m Cut Length
5 × 17 mmGrayStandard10 m Cut Length
5 × 18 mmGrayStandard10 m Cut Length
5 × 20 mmGrayStandard10 m Cut Length

Standard Brush Seal

Standard brush seals are designed for general-purpose gap sealing in doors, windows and compatible profile systems. Their flexible fibers maintain contact with adjoining surfaces to help reduce the passage of dust, drafts and light while allowing normal sliding movement.
Cost-effective solution for general sealing and replacement requirements.
Flexible brush fibers for continuous surface contact.
Suitable for routine maintenance and door and window assembly.
Available in selected sizes and colors for retail orders and larger projects.


Siliconized (Water-Repellent) Brush Seal – Available Options

Size (W × H)ColorTreatmentRoll Length
5 × 3 mmBlackSiliconized (Water-Repellent)400 m
5 × 4 mmBlackSiliconized (Water-Repellent)330 m
5 × 5 mmBlackSiliconized (Water-Repellent)230 m
5 × 5 mmGraySiliconized (Water-Repellent)330 m
5 × 6 mmBlackSiliconized (Water-Repellent)10 m Cut Length
5 × 6 mmGraySiliconized (Water-Repellent)10 m Cut Length
5 × 8 mmBlackSiliconized (Water-Repellent)10 m Cut Length
5 × 8 mmGraySiliconized (Water-Repellent)10 m Cut Length
5 × 9 mmBlackSiliconized (Water-Repellent)230 m
5 × 12 mmBlackSiliconized (Water-Repellent)10 m Cut Length
5 × 15 mmBlackSiliconized (Water-Repellent)140 m

Siliconized (Water-Repellent) Brush Seal

Siliconized brush seals feature fibers treated with a silicone-based finish to provide a smoother surface and water-repellent properties. Compared with standard untreated fibers, the treated brush fibers help reduce friction during sliding operation and improve resistance to moisture.
Smoother fiber surface for reduced friction during movement.
Water-repellent treatment for applications exposed to moisture.
Suitable for frequently operated sliding doors and window systems.
Available in selected sizes, colors and bulk roll lengths for manufacturers and distributors.

Applications

  • Aluminum Doors & Windows

 Insert brush seals are widely used in aluminum profiles where a dedicated groove is available.

  • Sliding Doors and Windows

 The flexible brush structure provides sealing contact while allowing smooth opening and closing movement.

  • uPVC Door and Window Systems

  Suitable for weather sealing, dust protection and gap closure applications.

  • Cabinets and Enclosures

  Can be used where a flexible brush barrier is required.

Installation

  • Remove the existing brush seal from the groove.
  • Clean the installation channel.
  • Confirm groove width and depth.
  • Insert the new brush seal into the channel.
  • Check that the brush contacts the opposite surface evenly.

How to Select the Right Insert Brush Seal

Before ordering, check:

1. Base Width

Measure the existing groove width to confirm the correct insert size.

2. Overall Height

Measure the complete seal height, including the base.

3. Sealing Gap

Select a height that provides contact without excessive compression.

4. Treatment Requirement

Choose according to application:

  • Standard — general sealing applications
  • Siliconized (Water-Repellent) — smoother operation and improved moisture resistance

FAQ

Q: What do the 4 mm and 5 mm dimensions refer to?
A: They refer to the base width of the brush seal, which must match the compatible groove or channel.
Q: How is an insert-type brush seal installed?
A: The base is inserted directly into a compatible groove. Standard installation does not require adhesive backing.
Q: What does the overall height include?
A: Overall height is measured from the bottom of the base to the top of the brush fibers.
Q: What is the difference between standard and siliconized brush fibers?
A: Standard fibers are suitable for general sealing applications. Siliconized fibers have a surface treatment that provides smoother movement and water-repellent properties.
Q: Are nylon and PP brush fibers both available?
A: Yes. Brush fibers are available in nylon or polypropylene, depending on the specification.
Q: Are different colors and supply lengths available?
A: Selected specifications are available in black or gray, with supply options including cut lengths and bulk rolls.
